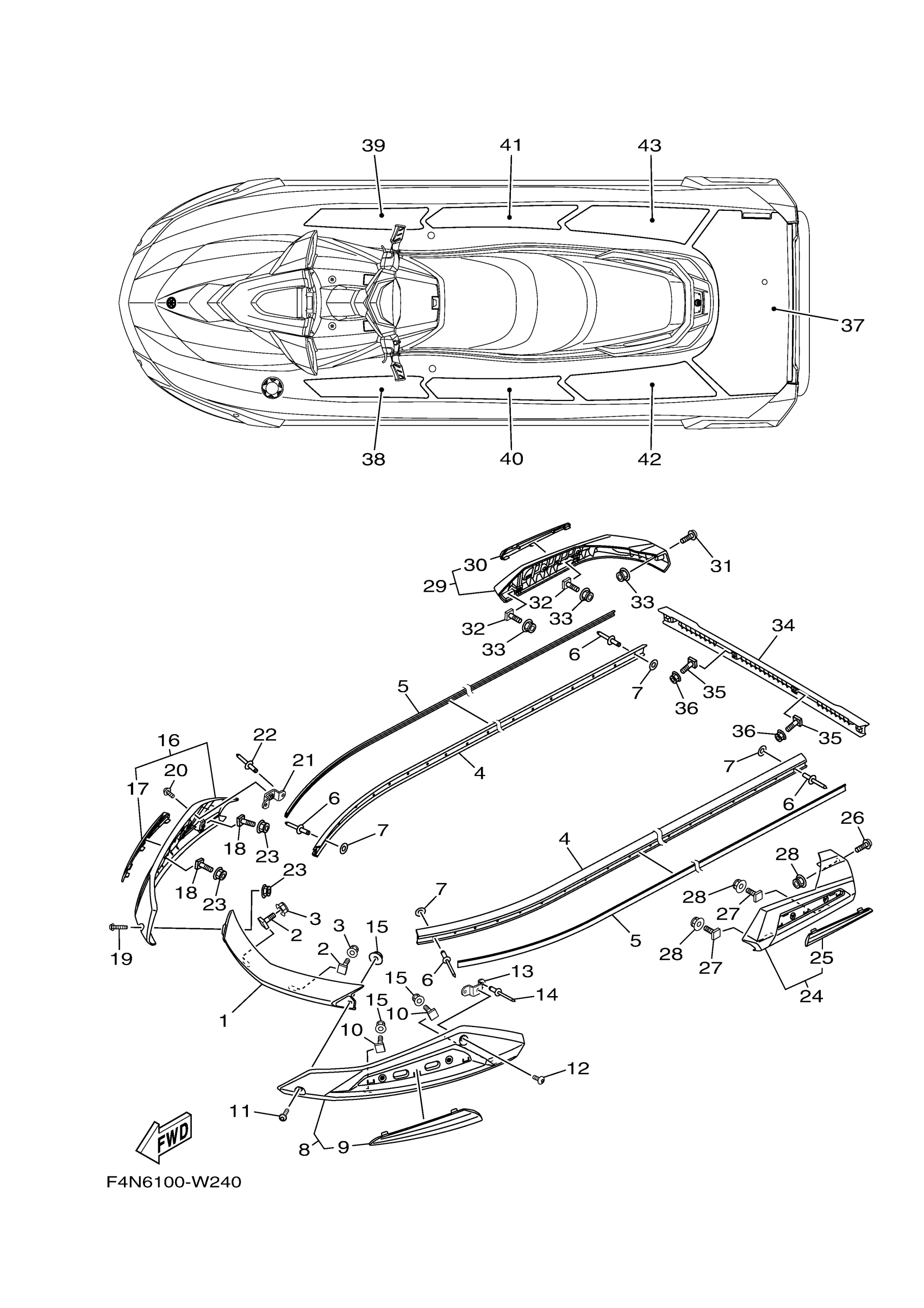

Yamaha VX1050FA (VX) F4NR 2024 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4N-U2511-00-00

$24.61

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F4N-U2512-00-00

$32.82

5

INNER,GUNWALE

F4N-U2519-A0-00

$35.81

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

GUNWALE ASSY.

F6G-U2510-61-00

$50.26

9

GUNWALL INSIDE

F4N-U2514-R1-00

$18.64

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

13

BRACKET

F3X-U4949-00-00

$2.66

14

RIVET, BLIND

90267-489U6-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE ASSY.

F6G-U2510-71-00

$50.73

17

GUNWALL INSIDE

F4N-U2514-S1-00

$18.64

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

SCREW

F3X-U7823-12-00

$1.25

20

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

21

BRACKET

F3X-U4949-00-00

$2.66

22

RIVET, BLIND

90267-489U6-00

Unavailable

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

STERN GUNWALE COMP

F6G-U2504-61-00

$42.63

25

INNER GUNWALE, AFT

F4N-U255C-R0-00

Unavailable

26

SCREW

F4P-U7823-00-00

$1.43

27

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

28

NUT, LOCK

F2N-U142L-00-00

$1.00

29

STERN GUNWALE COMP

F6G-U2504-71-00

$40.79

30

INNER GUNWALE, AFT

F4N-U255C-S0-00

Unavailable

31

SCREW

F4P-U7823-00-00

$1.43

32

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

33

NUT, LOCK

F2N-U142L-00-00

$1.00

34

COVER, GUNWALE 1

F4P-U252C-02-00

Unavailable

35

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

36

NUT, LOCK

F2N-U142L-00-00

$1.00

37

MAT, UPPER

F4N-U3581-00-00

$71.80

38

MAT, STEP 1

F4N-U351H-00-00

$12.67

39

MAT, STEP 2

F4N-U351J-00-00

$17.90

40

MAT, STEP 3

F4N-U351K-00-00

$15.66

41

MAT, STEP 4

F4N-U351M-00-00

$15.66

42

MAT, STEP 5

F4N-U351N-00-00

$23.87

43

MAT, STEP 6

F4N-U351P-00-00

$23.87
