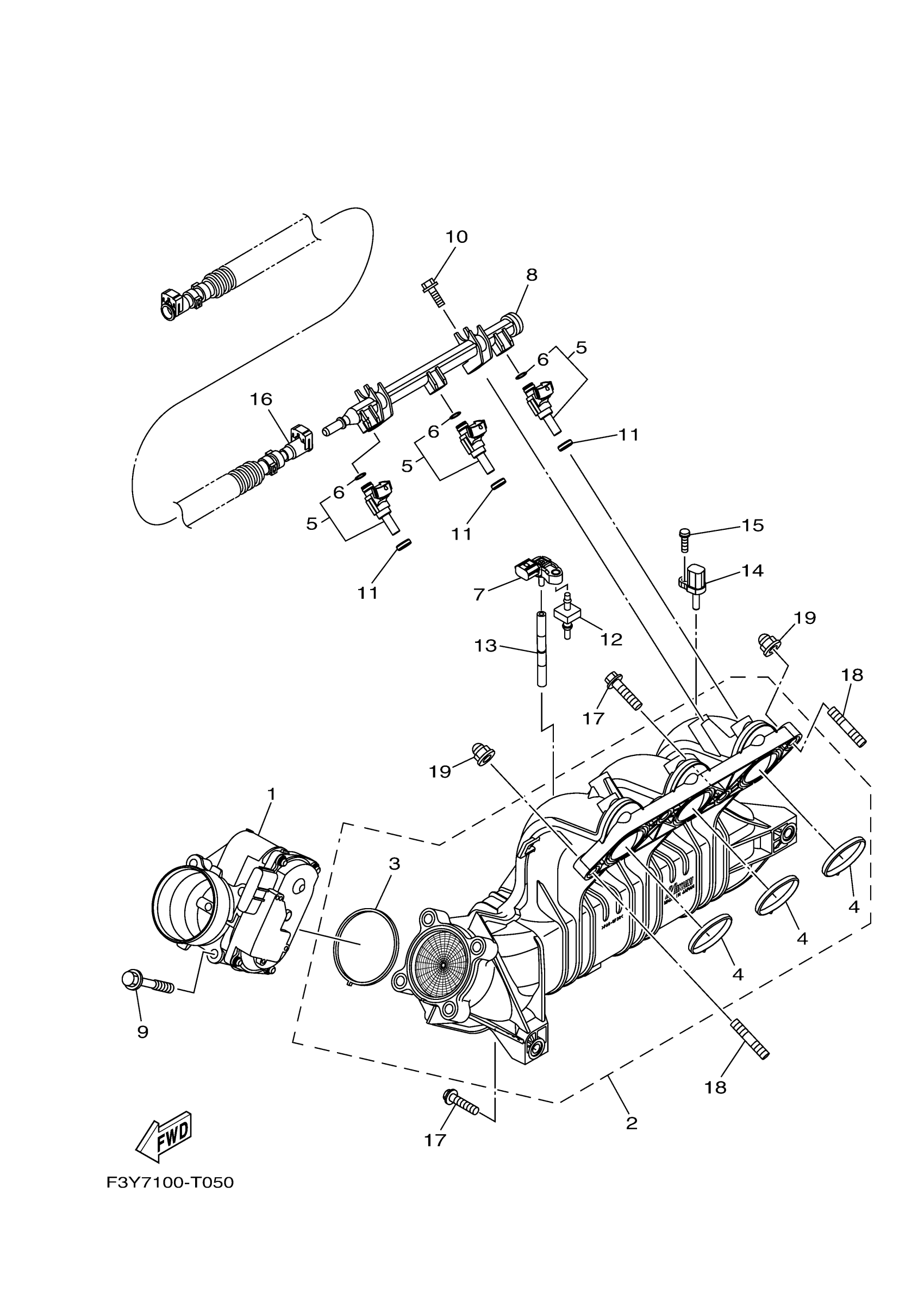

Yamaha VX1050EY (VX DELUXE WITH AUDIO_ VX DELUXE) F4NH 2023 INTAKE Diagram

THROTTLE BODY ASSY

6EY-13750-01-00

Unavailable

MANIFOLD, INTAKE 1

6EY-13641-03-00

Unavailable

. GASKET, INSULATING

6EY-14156-00-00

Unavailable

. GASKET

6EY-14126-00-00

Unavailable

INJECTOR

2HC-13761-00-00

$117.99

. O-RING

68V-1416A-00-00

Unavailable

SENSOR, PRESSURE

5S7-82380-00-00

$187.99

DELIVERY PIPE

6EY-12880-01-00

Unavailable

BOLT, FLANGE

90105-08243-00

Unavailable

BOLT, FLANGE

95814-06020-00

$8.49

. GASKET, MANIFOLD

8FP-13556-10-00

Unavailable

GROMMET

6BH-14445-00-00

Unavailable

HOSE, VACUUM SENSING 3

6EY-13532-00-00

Unavailable

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

SCREW, PANHEAD TAPPING

97702-50520-00

$0.43

FUEL HOSE ASSY

6JS-2450B-00-00

Unavailable

BOLT, WITH WASHER

97513-08535-00

Unavailable

BOLT, STUD

95612-08625-00

Unavailable

NUT, CROWN(4BR)

90176-08080-00

Unavailable
