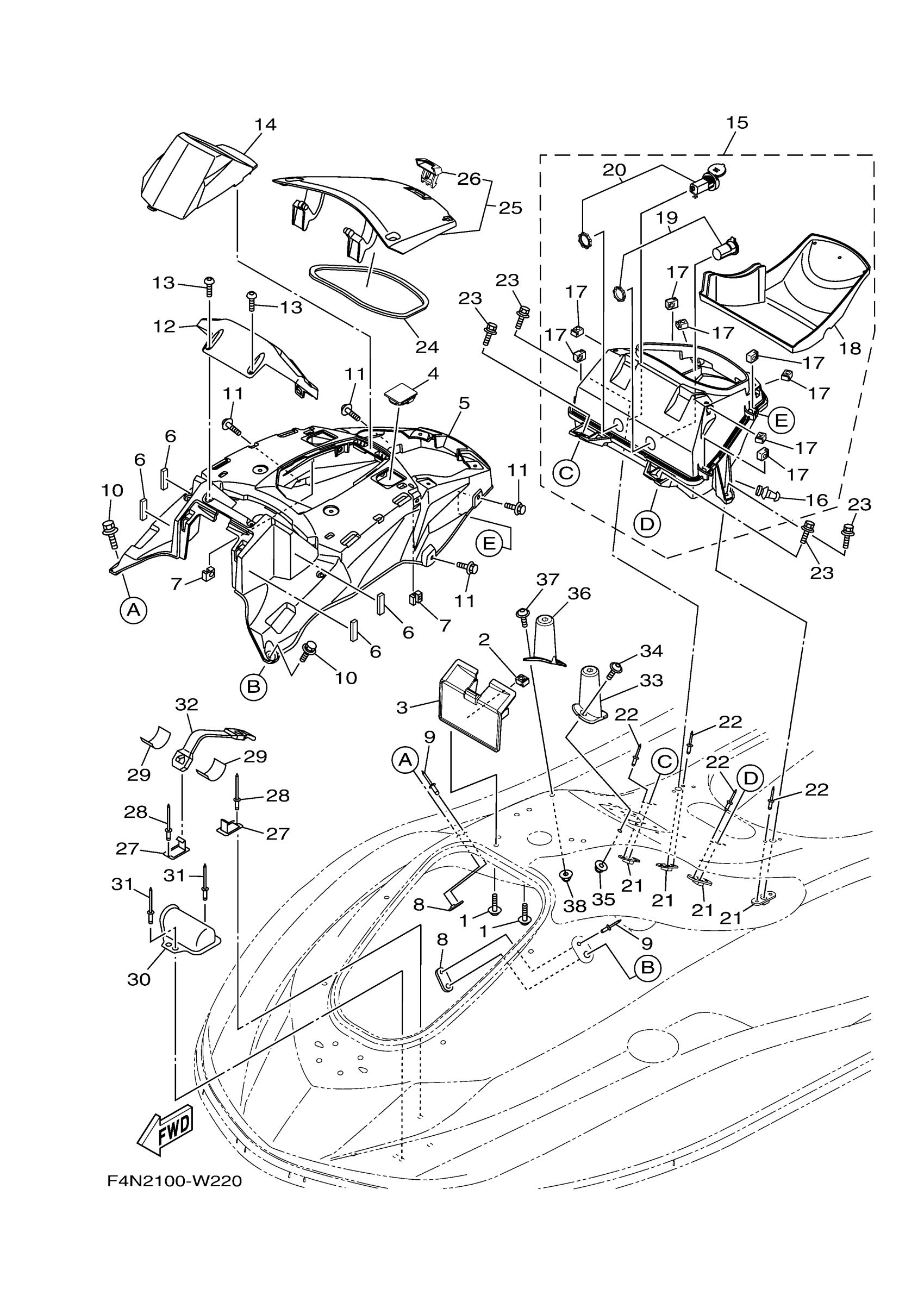

Yamaha VX1050EY (VX DELUXE WITH AUDIO_ VX DELUXE) F4NH 2023 ENGINE HATCH 2 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06880-00

$3.52

2

NUT

F3X-U517E-00-00

$1.23

3

HOOK,LID LOCK

F4P-U517F-00-00

$21.20

5

COVER, CENTER

F4N-U5554-00-00

$111.88

6

. PACKING 3

F1K-U266B-00-00

$1.15

7

NUT

F3X-U517E-00-00

$1.23

8

PLATE, FIX

F2X-U5175-00-00

$1.80

9

RIVET (EU0)

90267-48938-00

$5.00

10

BOLT, WITH WASHER

90119-06878-00

$3.43

11

BOLT

F4P-U1355-00-00

$0.86

12

COVER METER

F4N-U8262-00-00

$18.17

13

SCREW

F2S-U13C1-00-00

$2.36

14

COVER, FRONT

F4N-U513M-00-00

$14.35

15

GLOVE BOX HATCH ASSY

F4N-U1708-11-00

$280.29

16

. SEAL

F3X-U2723-00-00

$2.16

17

NUT

F3X-U517E-00-00

$1.23

18

INNER, CASE

F4N-U591L-00-00

Unavailable

19

TERMINAL COMP.

F4N-H254B-00-00

Unavailable

20

PLUG, USB

F4N-H21E1-01-00

Unavailable

21

BRACKET

F2C-U826C-00-00

$3.79

22

RIVET 1

F4P-U516R-01-00

$4.87

23

BOLT, WITH WASHER

90119-08828-00

$2.30

24

PACKING CASE

F4N-U519D-02-00

$46.95

25

GLOVE BOX COVER ASSY

F4N-U4705-01-00

$41.63

26

. LOCK

F4N-U2875-00-00

$3.95

27

HOOK A

F1K-U5772-04-00

$6.29

28

RIVET (EU0)

90267-48938-00

$5.00

29

MAT 2

F1K-U759C-00-00

$1.72

30

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

$4.39

31

RIVET, BLIND

90267-48802-00

$1.98

32

BAND 1

F2P-U828K-00-00

$5.87

33

RFM.,DASH BOARD 1

F4N-U974A-00-00

$12.86

34

SCREW

F3X-U7823-12-00

$1.25

35

NUT, LOCK

F2N-U142L-00-00

$1.00

36

RFM.,DASH BOARD 2

F4N-U974B-00-00

$12.86

37

SCREW

F3X-U7823-12-00

$1.25

38

NUT, LOCK

F2N-U142L-00-00

$1.00
