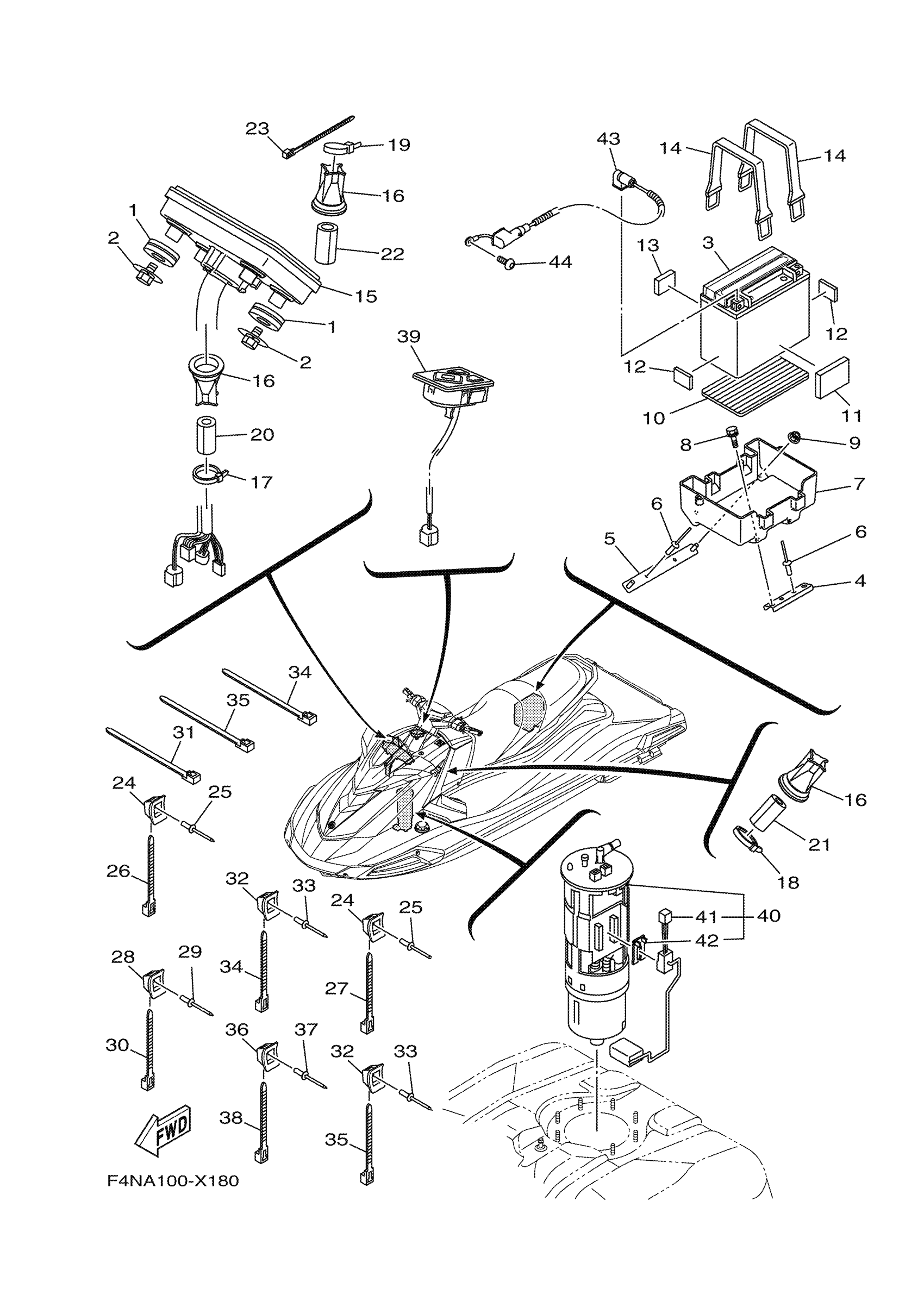

Yamaha VX1050EX (VX DELUXE WITH AUDIO_ VX DELUXE) F4NB 2022 ELECTRICAL 3 Diagram

#

Description
Price

1

. GROMMET

90480-19800-00

$12.20

2

BOLT, WITH WASHER

90119-05803-00

$4.24

3

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$159.13

4

PLATE, BASE 2

F2S-U8592-00-00

$5.66

5

PLATE, BASE 3

F2S-U8593-00-00

$5.29

6

RIVET (EU0)

90267-48938-00

$4.85

7

CASE, BATTERY

F2S-U8211-00-00

Unavailable

8

BOLT, WITH WASHER

90119-06820-00

$3.65

9

NUT, LOCK

F2N-U142L-00-00

$1.43

10

PAD, BATTERY

F1S-U8221-00-00

$2.88

11

MAT 2

F1W-U759C-01-00

$2.43

12

PAD, BATTERY

EU0-U8221-31-00

$1.80

13

PACKING

F2C-U1743-00-00

$2.00

14

BAND, BATTERY 1

F4P-U821D-00-00

Unavailable

15

METER ASSY

F4P-U820A-02-00

Unavailable

16

GROMMET

F3J-U822E-01-00

$6.03

17

CLAMP

90464-32801-00

$1.29

18

CLAMP

90464-32801-00

$1.29

19

CLAMP

90464-32801-00

$1.29

20

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

21

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

22

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

23

CLAMP(JN6)

90464-31827-00

Unavailable

24

BASE, CLAMP

F1W-U828M-00-00

$1.29

25

RIVET, BLIND

90267-48806-00

$2.16

26

CLAMP

90464-32801-00

$1.29

27

CLAMP

90464-32801-00

$1.29

28

BASE, CLAMP

F1W-U828M-00-00

$1.29

29

RIVET, BLIND

90267-48806-00

$2.16

30

CLAMP

90464-32801-00

$1.29

31

CLAMP

90464-32801-00

$1.29

32

BASE, CLAMP

F1W-U828M-00-00

$1.29

33

RIVET, BLIND

90267-48806-00

$2.16

34

BAND

90601-200U2-00

$3.29

35

CLAMP

F2C-U4256-00-00

$3.16

36

BASE, CLAMP

F1W-U828M-00-00

$1.29

37

RIVET, BLIND

90267-48806-00

$2.16

38

CLAMP

90464-32801-00

$1.29

39

SWITCH ASSY.

F4P-U8090-02-00

$78.98

40

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

41

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

42

DAMPER, STOPPER

60E-82556-10-00

$18.37

43

WIRE, MINUS LEAD

6JS-82116-00-00

$40.81

44

BOLT, WITH WASHER

97513-08514-00

$1.32
