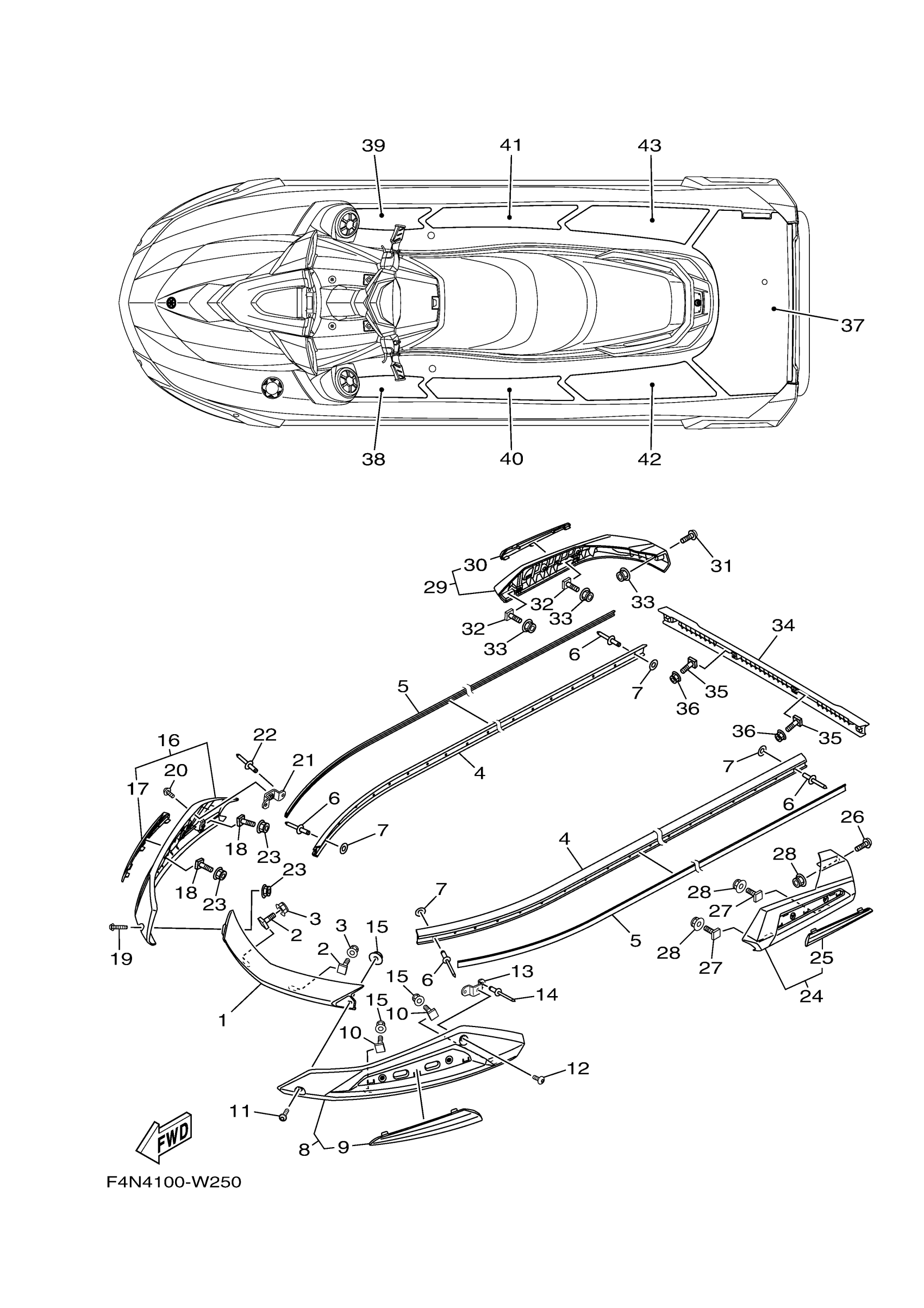

Yamaha VX1050EW (VX DELUXE WITH AUDIO_ VX DELUXE) F4N5 2021 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4N-U2511-10-00

$22.97

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F4N-U2512-10-00

$30.13

5

INNER,GUNWALE

F4N-U2519-00-00

$21.95

5

INNER,GUNWALE

F4N-U2519-10-00

$18.17

6

RIVET, BLIND

90267-489U8-00

$0.99

7

WASHER

9299R-05200-00

$3.16

8

GUNWALE ASSY.

F4N-U2510-40-00

$37.86

8

GUNWALE ASSY.

F4N-U2510-80-00

$37.86

9

. GUNWALL INSIDE

F4N-U2514-20-00

$49.98

9

. GUNWALL INSIDE

F4N-U2514-80-00

$45.44

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

13

BRACKET

F3X-U4949-00-00

$2.52

14

RIVET, BLIND

90267-489U6-00

$1.37

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE ASSY.

F4N-U2510-50-00

Unavailable

16

GUNWALE ASSY.

F4N-U2510-90-00

Unavailable

17

. GUNWALL INSIDE

F4N-U2514-30-00

$49.98

17

. GUNWALL INSIDE

F4N-U2514-90-00

$45.44

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

SCREW

F3X-U7823-12-00

$1.25

20

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

21

BRACKET

F3X-U4949-00-00

$2.52

22

RIVET, BLIND

90267-489U6-00

$1.37

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

STERN GUNWALE COMP

F4N-U2504-40-00

Unavailable

24

STERN GUNWALE COMP

F4N-U2504-80-00

Unavailable

25

. INNER GUNWALE, AFT

F4N-U255C-20-00

$22.71

25

. INNER GUNWALE, AFT

F4N-U255C-80-00

$22.71

26

SCREW

F4P-U7823-00-00

$1.37

27

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

28

NUT, LOCK

F2N-U142L-00-00

$1.00

29

STERN GUNWALE COMP

F4N-U2504-50-00

Unavailable

29

STERN GUNWALE COMP

F4N-U2504-90-00

Unavailable

30

. INNER GUNWALE, AFT

F4N-U255C-30-00

$22.71

30

. INNER GUNWALE, AFT

F4N-U255C-90-00

$21.95

31

SCREW

F4P-U7823-00-00

$1.37

32

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

33

NUT, LOCK

F2N-U142L-00-00

$1.00

34

COVER, GUNWALE 1

F4P-U252C-11-00

$25.62

35

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

36

NUT, LOCK

F2N-U142L-00-00

$1.00

37

MAT, UPPER

F4N-U3581-00-00

$68.93

37

MAT, UPPER

F4N-U3581-10-00

Unavailable

38

MAT, STEP 1

F6G-U351H-00-00

$11.35

38

MAT, STEP 1

F6G-U351H-10-00

Unavailable

39

MAT, STEP 2

F6G-U351J-00-00

$11.35

39

MAT, STEP 2

F6G-U351J-10-00

Unavailable

40

MAT, STEP 3

F4N-U351K-00-00

$15.89

40

MAT, STEP 3

F4N-U351K-10-00

Unavailable

41

MAT, STEP 4

F4N-U351M-00-00

$15.89

41

MAT, STEP 4

F4N-U351M-10-00

Unavailable

42

MAT, STEP 5

F4N-U351N-00-00

$24.23

42

MAT, STEP 5

F4N-U351N-10-00

Unavailable

43

MAT, STEP 6

F4N-U351P-00-00

$24.23

43

MAT, STEP 6

F4N-U351P-10-00

Unavailable
