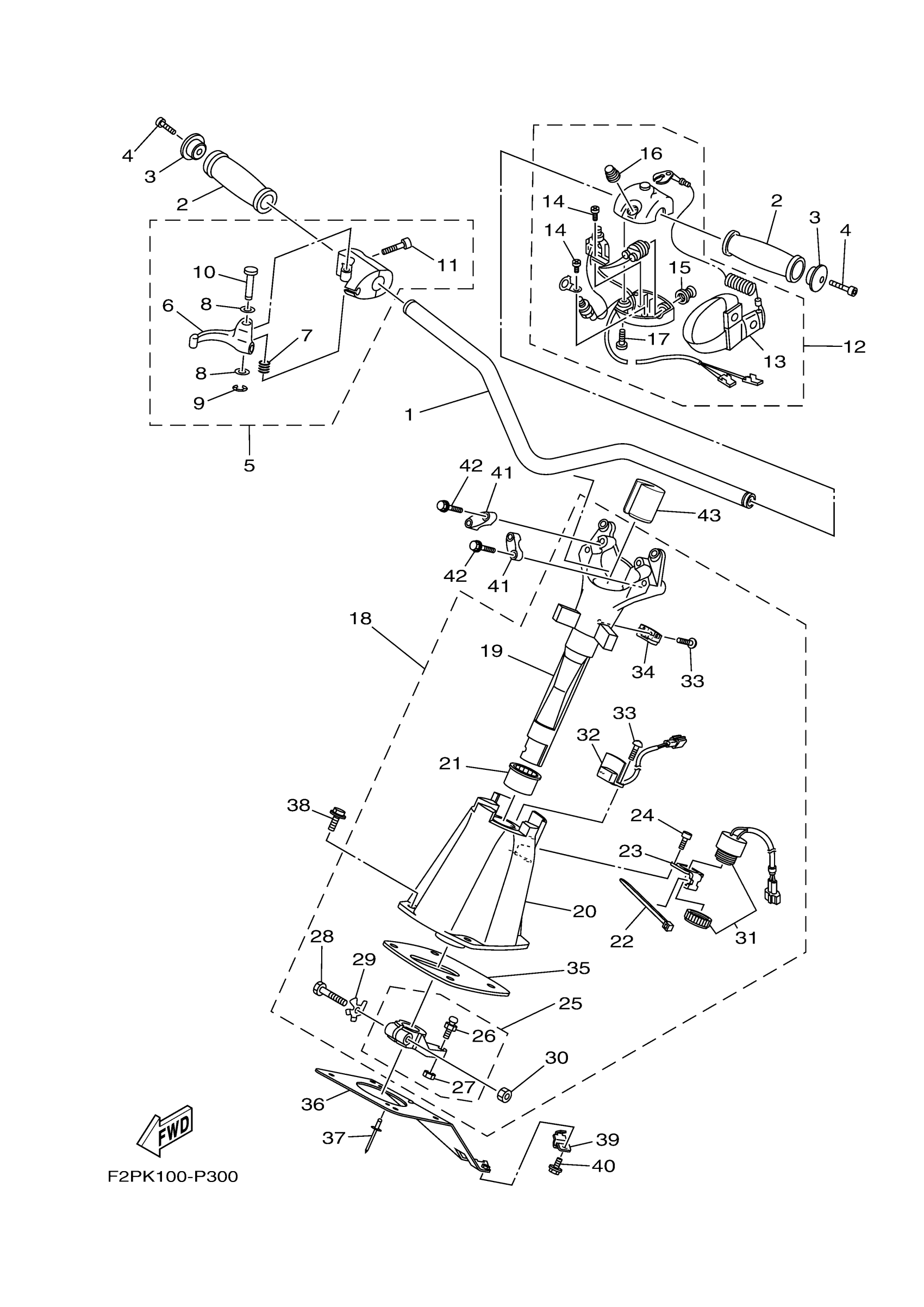

Yamaha VX1050ER (V1) F4F4 2016 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F2N-U1552-00-00

Unavailable

2

GRIP, HANDLE

GP7-U155D-01-00

Unavailable

3

GRIP, END

GP7-U155F-00-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

Unavailable

5

THROTTLE LEVER ASSY

F0D-67250-10-00

Unavailable

6

LEVER, THROTTLE

F0D-67255-02-00

Unavailable

7

. SPRING

EW2-67256-00-00

Unavailable

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

CIRCLIP (EU0)

99080-04600-00

Unavailable

10

. SHAFT

F0D-67257-00-00

Unavailable

11

. BOLT, THROTTLE

F1X-6725F-01-00

Unavailable

12

SWITCH BOX ASSY

FK7-68310-07-00

Unavailable

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

Unavailable

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

. STOP BUTTON COMP

FK7-68312-02-00

Unavailable

16

. START BUTTON COMP

FK7-68313-02-00

Unavailable

17

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

18

STEERING MASTER AS

F2X-61400-14-00

Unavailable

19

. SHAFT

F2X-6152D-00-00

Unavailable

20

HOUSING ASSY

F2X-6152M-02-00

Unavailable

21

. BUSH

F1K-6134M-00-00

Unavailable

22

BAND

1UA-82591-00-00

Unavailable

23

. SPACER, BRKT

F2P-6146H-00-00

Unavailable

24

SCREW

F1B-613C1-10-00

Unavailable

25

ARM ASSY.

F1K-6153R-01-00

Unavailable

26

STUD, JOINT BALL

EU0-61461-02-00

Unavailable

27

NUT, SELF-LOCKING

95720-06300-00

Unavailable

28

.. BOLT

F1K-61355-00-00

Unavailable

29

. PLATE, RETAINING

F1K-6142B-00-00

Unavailable

30

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

31

BUZZER

F1S-68341-00-00

Unavailable

32

SENSOR, MAGNET

F2X-6838B-02-00

Unavailable

33

. SCREW

F2X-613C1-00-00

Unavailable

34

MAGNET

F2X-6838C-01-00

Unavailable

35

. SEAL, RUBBER

F1K-6143C-00-00

Unavailable

36

BRACKET,STOPPER CABLE

F1K-U1467-01-00

Unavailable

37

RIVET, BLIND

90267-489U2-00

Unavailable

38

BOLT,WITH WASHER

90119-08870-00

Unavailable

39

STOPPER, CABLE

F1K-U1468-03-00

Unavailable

40

BOLT, WITH WASHER

90119-06830-00

Unavailable

41

HOLDER, HANDLE UPPER

EU0-23814-32-00

Unavailable

42

BOLT, WITH WASHER

90119-08844-00

Unavailable

43

PLUG

F1K-U1949-00-00

Unavailable
