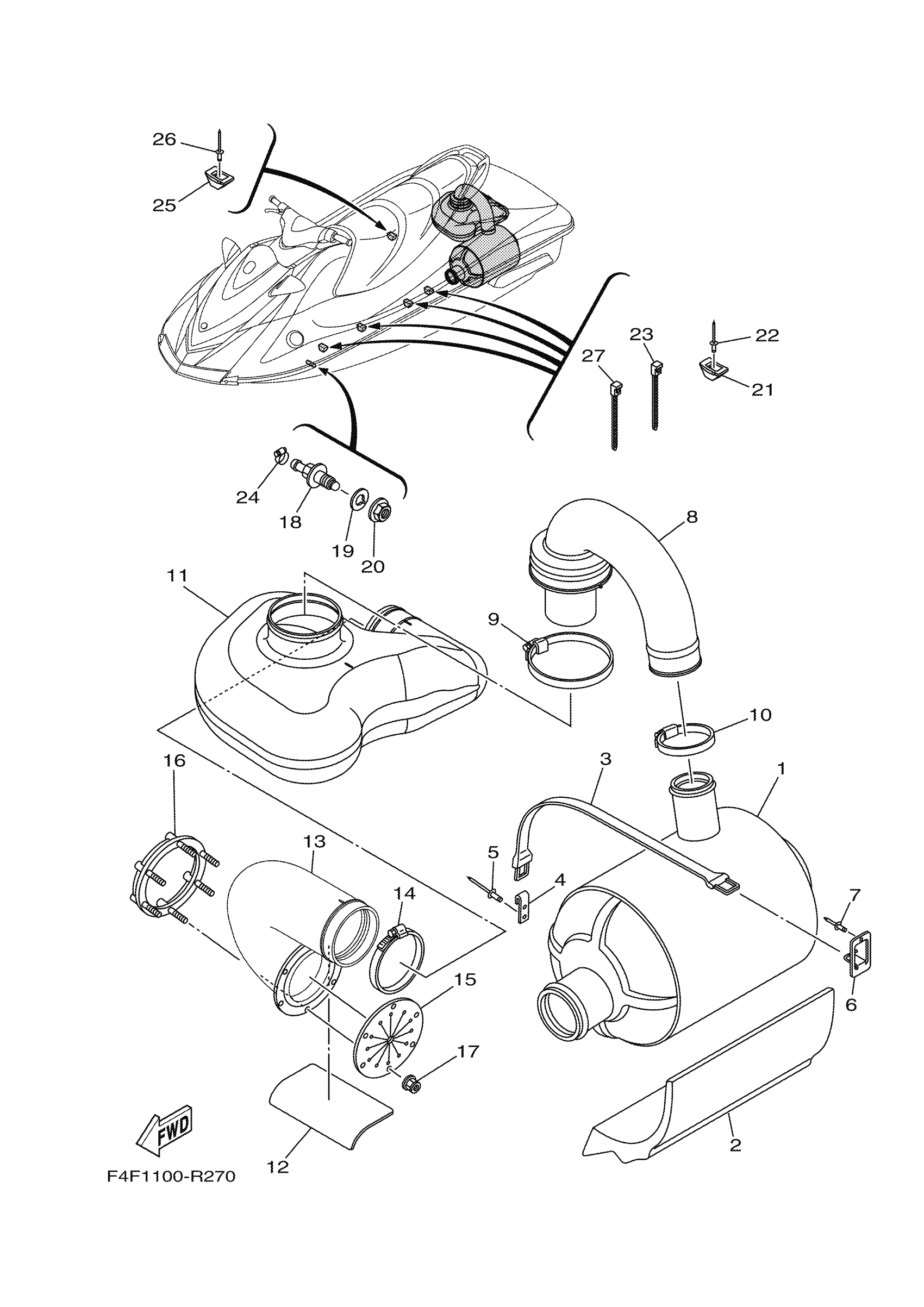

Yamaha VX1050ER (V1) F4F4 2016 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4G-U7550-02-00

$72.04

2

FLOATATION, BASE 1

F4G-U892F-10-00

$25.11

3

BAND, FUEL TANK

EW2-67821-00-00

Unavailable

4

HOOK A

GA7-65772-00-00

$8.81

5

RIVET (EU0)

90267-48938-00

$4.85

6

HOOK A

F1K-U5772-04-00

$6.10

7

RIVET (EU0)

90267-48938-00

$4.85

8

HOSE, EXHAUST

F4G-U7555-00-00

$68.99

9

BAND, HOSE 79

90601-179U8-00

$5.53

10

HOSE CLAMP ASSY

90450-99804-00

$4.51

11

TANK, WATER

F2N-U4261-00-00

$85.28

12

PAD, BATTERY

F1S-U8221-00-00

$2.88

13

HOSE,EXHAUST 3

F2N-U758D-00-00

$185.28

14

HOSE CLAMP ASSY

90450-99801-00

$4.01

15

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

16

PLATE

F1S-U757B-01-00

Unavailable

17

NUT, LOCK

F2N-U142L-00-00

$1.43

18

PILOT, WATER

F2C-U753B-01-00

$2.58

19

GASKET

F2C-U7564-02-00

$4.63

20

NUT

F2C-U2733-00-00

$2.00

21

BASE, CLAMP

F1W-U828M-00-00

$1.29

22

RIVET, BLIND

90267-489U6-00

Unavailable

23

CLAMP

90464-32801-00

$1.29

24

CLIP

90467-17802-00

$3.02

25

BASE, CLAMP

F1W-U828M-00-00

$1.29

26

RIVET, BLIND

90267-489U6-00

Unavailable

27

BAND

90601-200U2-00

$3.29
