2016 Yamaha V1 (VX1050ER) Engine Hatch 1 Diagram

← All diagrams

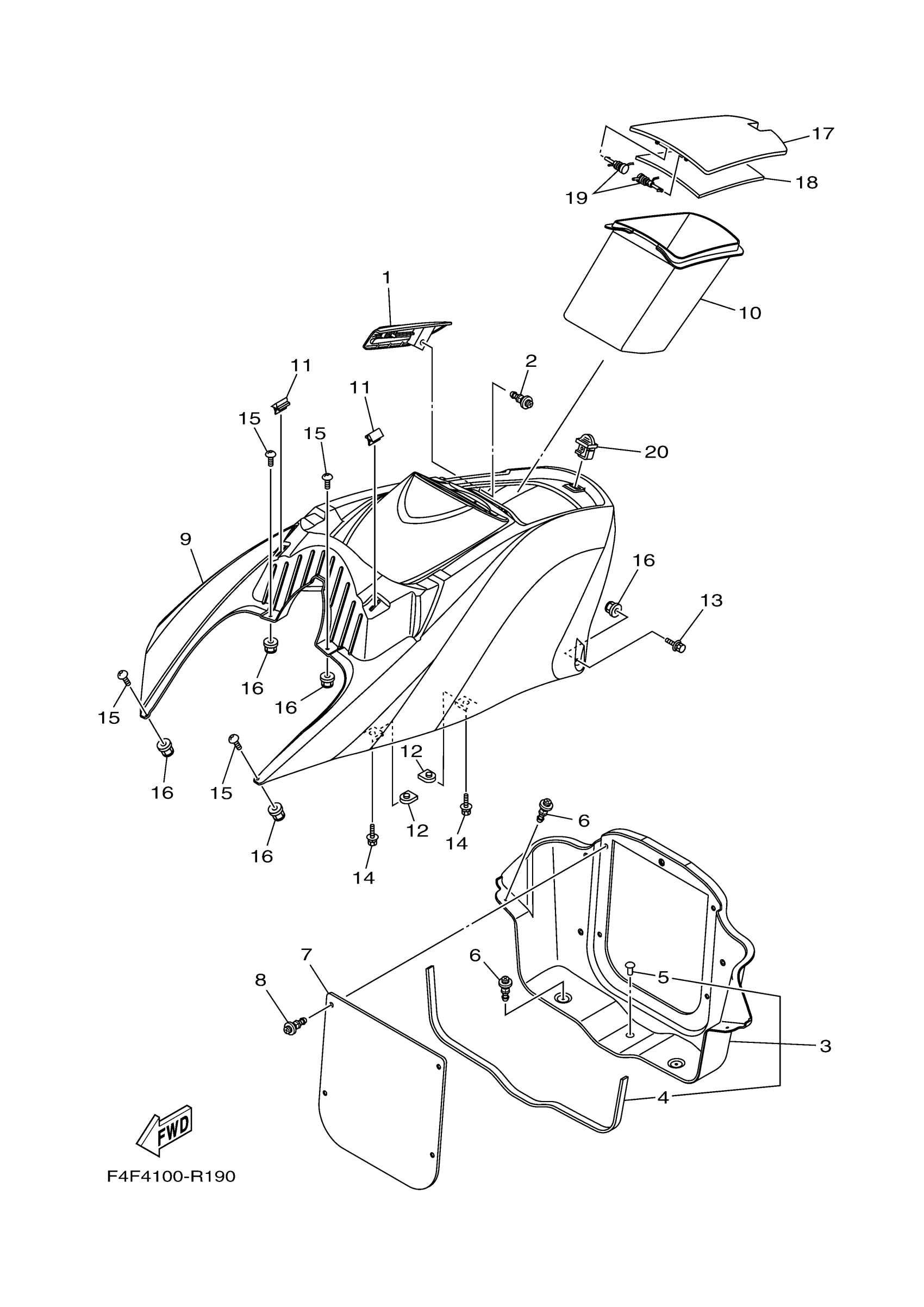

Find the part on the Engine Hatch 1 diagram for your 2016 Yamaha V1 (VX1050ER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha V1 (VX1050ER) Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL

F2N-U2723-00-00

1

$5.00

In stock

2

RIVET

90269-08801-00

1

$1.31

In stock

3

LOCKER,BOW

F2N-U475B-04-00

1

$99.98

In stock

4

PACKING 4

F2C-U266C-00-00

1

$7.46

In stock

5

. PLUG, BLIND

90605-502U1-00

1

$2.46

In stock

6

RIVET

90269-08801-00

1

$1.31

In stock

7

PLATE, LOKER BOW

F1W-U475F-01-00

1

$14.60

In stock

8

RIVET

90269-08801-00

1

$1.31

In stock

9

COVER, ENGINE HATCH (DYMA)

F2N-U516N-00-PD

1

$473.83

In stock

9

COVER, ENGINE HATCH (VLGS3)

F2N-U516N-00-PF

1

$130.75

In stock

10

BOX GLOVE

F2N-U516P-00-00

1

$98.45

In stock

11

PACKING 4

F1K-U266C-10-00

1

$2.31

In stock

12

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

13

BOLT, WITH WASHER

90119-06880-00

1

$3.92

In stock

14

BOLT, WITH WASHER

90119-06878-00

1

$3.85

In stock

15

SCREW

F2N-67823-10-00

1

$2.22

In stock

16

NUT, LOCK

F2N-U142L-00-00

1

$1.54

In stock

17

LID HATCH

F2N-U517H-01-00

1

$52.37

In stock

18

PACKING CASE

F2P-U519D-00-00

1

$23.83

In stock

19

PIN, HINGE

F0X-6517R-01-00

1

$8.31

In stock

20

LOCK

GU2-62875-02-00

1

$32.51

In stock
