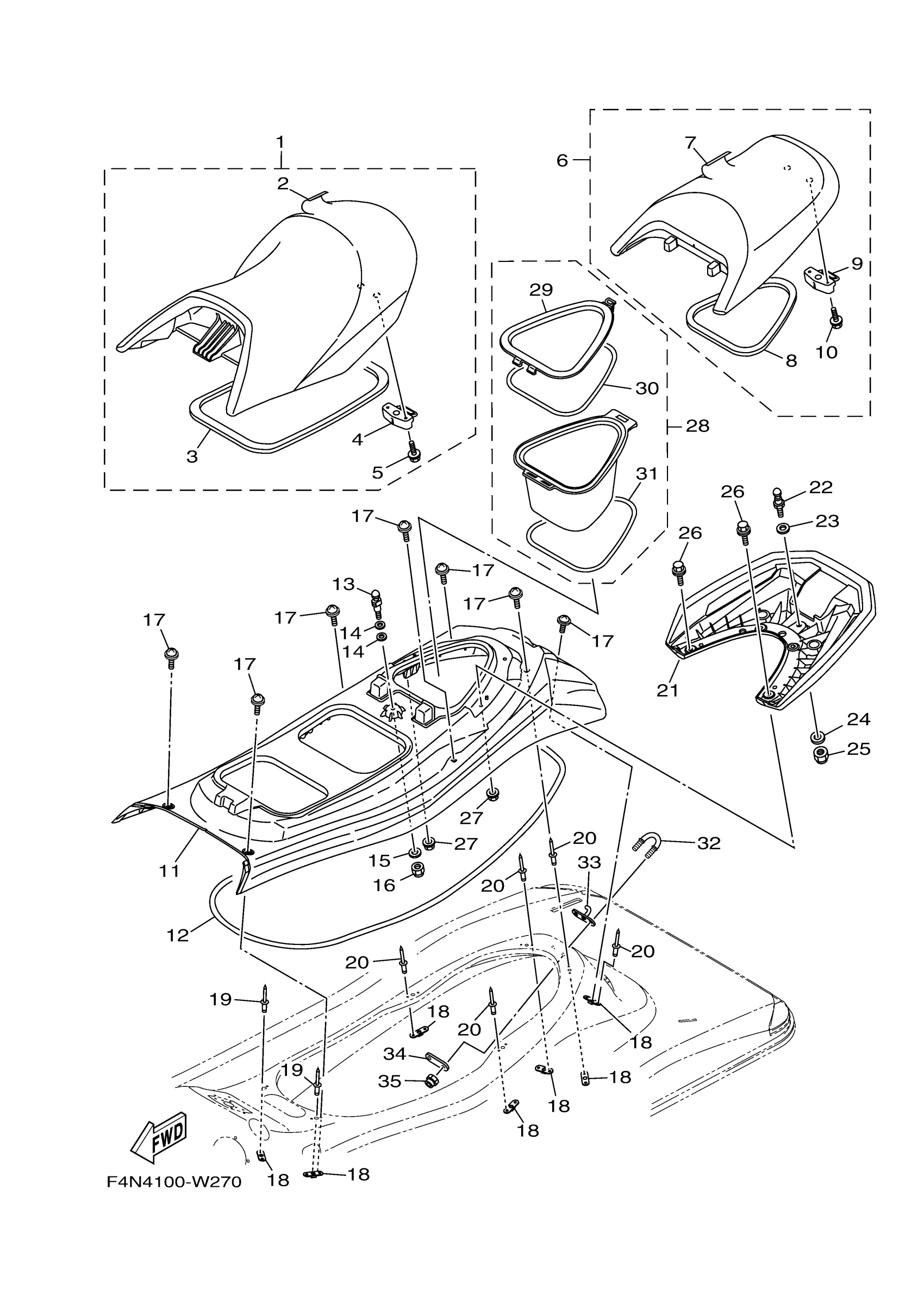

Yamaha VX1050EB (VX DELUXE) F4NW 2025 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F4N-U371A-S0-00

Unavailable

1

DOUBLE SEAT ASSY

F6G-U371A-20-00

$664.01

2

COVER, SEAT 1

F4N-U371B-S0-00

$280.29

2

. COVER, SEAT 1

F6G-U371B-20-00

$336.59

3

. PACKING

F4P-U2664-00-00

$34.08

4

. SEAT LOCK ASSY

F2C-U3850-00-00

$22.97

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F4N-U372A-S0-00

$268.17

6

SINGLE SEAT ASSY

F6G-U372A-20-00

$486.53

7

COVER, SEAT

F4N-U372B-S0-00

Unavailable

7

. COVER, SEAT

F6G-U372B-20-00

$300.89

8

. PACKING 5

F4P-U266D-00-00

$66.65

9

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

BASE, SEAT 2

F4P-U3743-00-00

$81.33

12

PACKING 3

F4P-U266B-00-00

$35.88

13

PIN

GH1-U3774-00-00

$19.38

14

WASHER, PLATE

90201-109U6-00

$3.29

15

WASHER

9299R-10200-00

$1.63

16

NUT, NYLON

9572R-10300-00

$3.37

17

BOLT, SPECIAL

F3Y-U491K-02-00

$2.52

18

BRACKET

F2C-U826C-00-00

$3.79

19

RIVET 1

F4P-U516R-01-00

$4.87

20

RIVET (EU0)

90267-48938-00

$5.00

21

GRIP, HAND

F4N-U271B-00-00

Unavailable

22

PIN

GH1-U3774-00-00

$19.38

23

WASHER, PLATE

90201-109U6-00

$3.29

24

WASHER

9299R-10200-00

$1.63

25

NUT, NYLON

9572R-10300-00

$3.37

26

BOLT, WITH WASHER

90119-08829-00

$3.88

27

NUT, LOCK

F3Y-U142L-00-00

$2.52

28

CASE ASSY 1

F4P-U591A-00-00

$84.46

29

. CAP,CASE

F4P-U591C-00-00

$16.65

30

. PACKING,CASE

F4P-U591D-00-00

$71.20

31

. PACKING,6

F4P-U266E-00-00

$7.20

32

STERN EYE

F2N-U1628-10-00

Unavailable

33

EYELET

F4G-U372G-00-00

Unavailable

34

PLATE A

GP7-U4953-10-00

$3.52

35

NUT, NYLON (6J8)

95780-08300-00

$10.55
