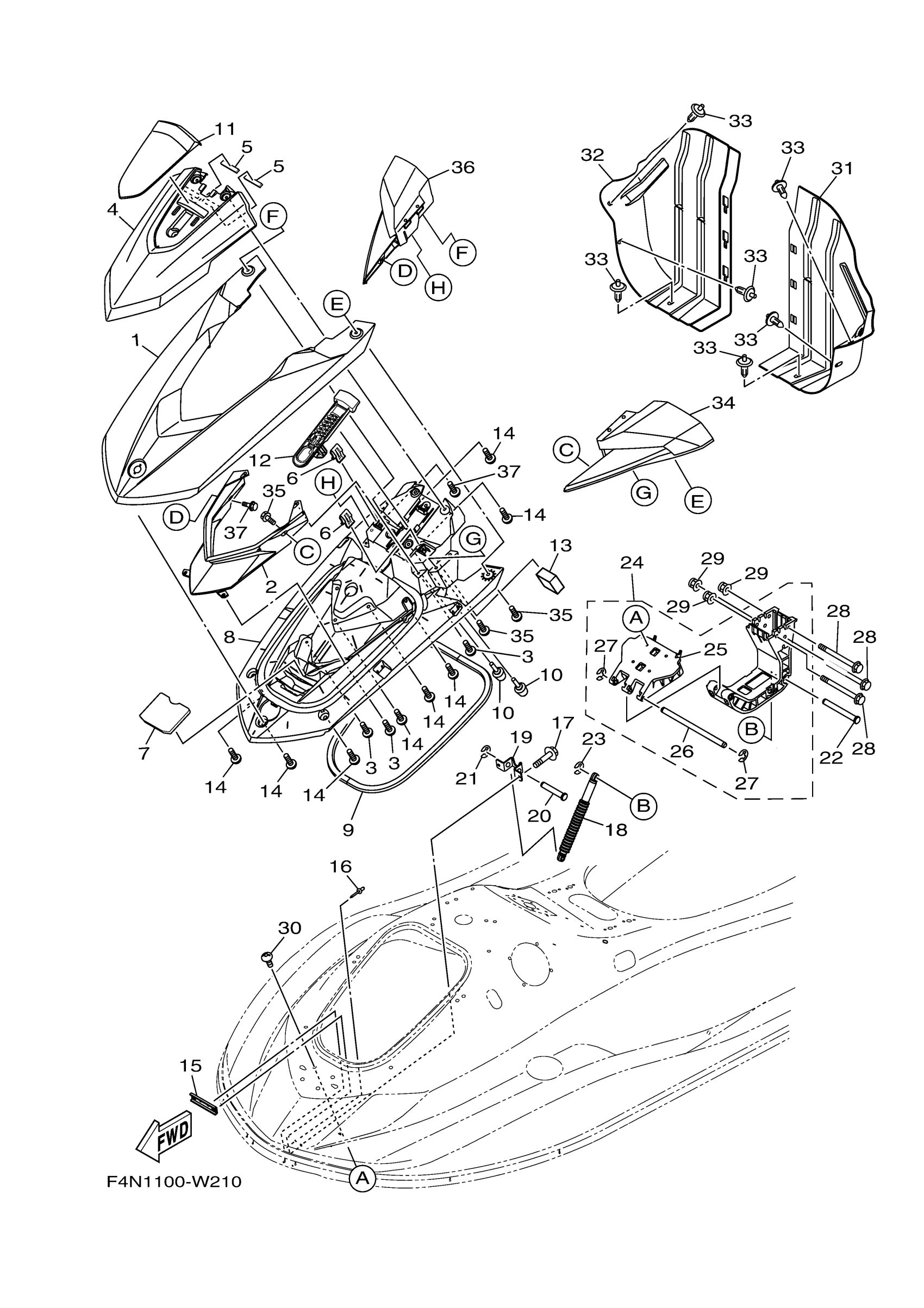

Yamaha VX1050EA (VX DELUXE WITH AUDIO_ VX DELUXE) F4NP 2024 ENGINE HATCH 1 Diagram

#

Description
Price

1

LID, ENGINE ROOM (

F4N-U517B-00-98

Unavailable

1

LID, ENGINE ROOM (LBS2)

F4N-U517B-00-P8

$181.80

2

ORNAMENT, CENTER

F4N-U517V-00-00

$15.14

3

SCREW

F2S-U13C1-00-00

$2.36

4

VISOR

F4N-U515N-02-P3

$127.26

4

VISOR

F4N-U515N-02-PD

$118.17

5

. PACKING 3

F1K-U266B-00-00

$1.15

6

CLIP

F3Y-U153K-00-00

$1.29

7

STOPPER, PACKING

F4P-U7462-01-00

$5.08

8

INNER, ENGINE HATC

F4N-U519G-01-00

$116.65

9

PACKING 1

F4P-U2663-01-00

$31.80

10

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

11

VISOR, 2

F4N-U515P-00-00

$11.48

12

LOCK, LID

F4N-U517C-00-00

$11.48

13

PACKING

F2C-U1743-00-00

$1.87

14

SCREW

F2S-U13C1-00-00

$2.36

15

PLATE, BASE 2

F2S-U8592-00-00

$5.83

16

RIVET (EU0)

90267-48938-00

$5.00

17

BOLT, WITH WASHER

90119-06820-00

$3.52

18

DAMPER 1

F4P-U515D-01-00

Unavailable

19

BRACKET, DAMPER 1

F4P-UFRV1-00-00

$29.53

20

CLEVIS

F4P-U7243-00-00

$87.86

21

. E-RING

F4P-U515C-00-00

$0.91

22

CLEVIS 1

F4P-UF8DM-00-00

$18.17

23

. E-RING

F4P-U515C-00-00

$0.91

24

HINGE ASSY.

F4P-U515A-00-00

$92.41

25

. PLATE, HINGE LID

F4P-U518E-00-00

$33.32

26

. ROD

F4P-U7256-00-00

$4.09

27

. E-RING

F4P-U515C-00-00

$0.91

28

BOLT, STUD 1

F4P-U4445-00-00

$4.24

29

NUT, LOCK

F3Y-U142L-00-00

$2.52

30

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

31

LOCKER,BOW

F4P-U475B-00-00

$27.26

32

PLATE, LOKER BOW

F4P-U475F-00-00

$28.02

33

RIVET

F4P-U1454-00-00

$1.06

34

MIRROR ASSY. 1

F4N-U590D-B0-00

Unavailable

34

MIRROR ASSY. 1

F4N-U590D-F1-00

Unavailable

35

BOLT, WITH WASHER

90119-06880-00

$3.52

36

MIRROR ASSY. 2

F4N-U590E-B0-00

Unavailable

36

MIRROR ASSY. 2

F4N-U590E-F1-00

Unavailable

37

BOLT, WITH WASHER

90119-06880-00

$3.52
