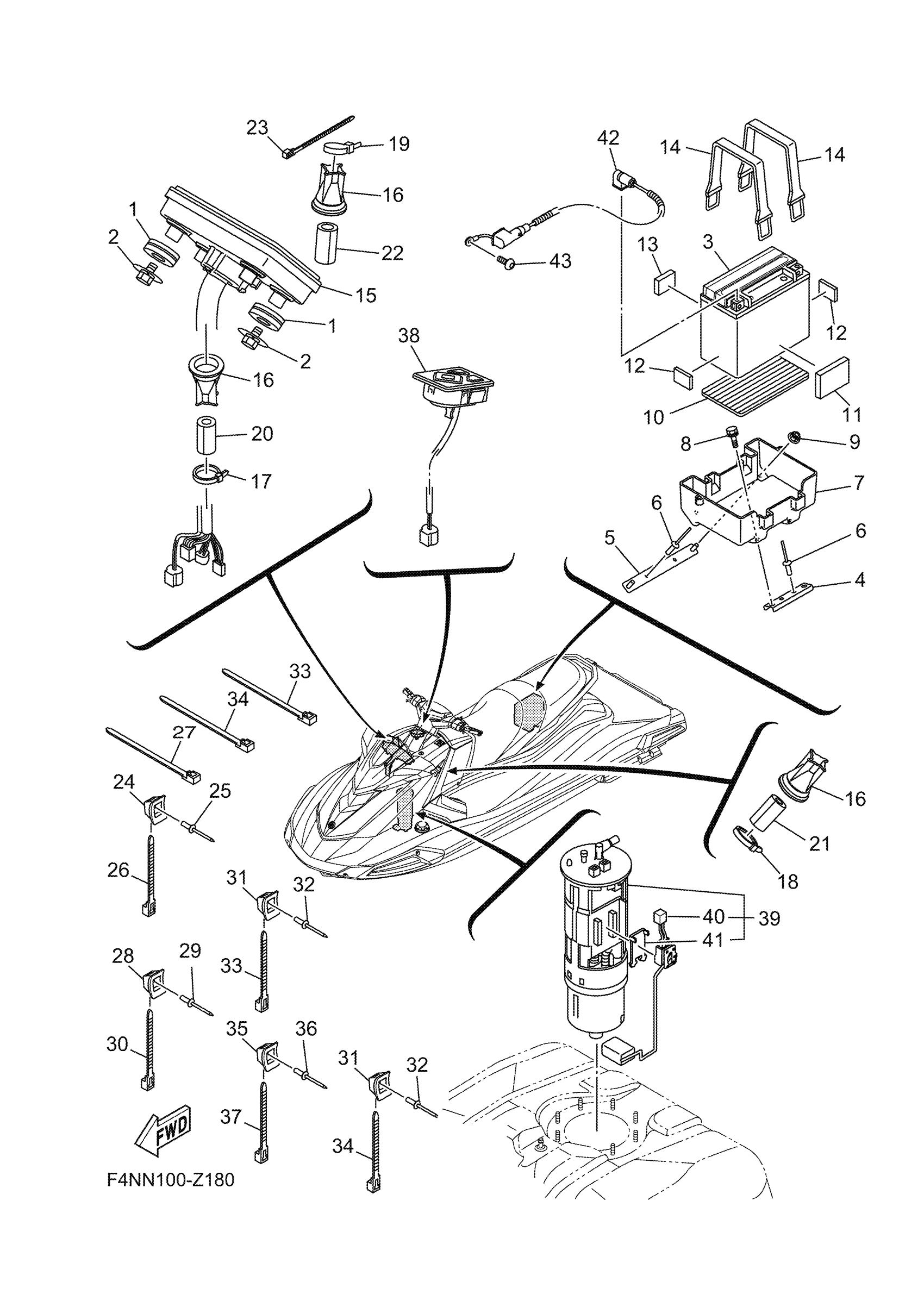

Yamaha VX1050EA (VX DELUXE WITH AUDIO_ VX DELUXE) F4NP 2024 ELECTRICAL 3 Diagram

#

Description
Price

1

. GROMMET

90480-19800-00

$11.48

2

BOLT, WITH WASHER

90119-05803-00

$4.01

3

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$163.95

4

PLATE, BASE 2

F2S-U8592-00-00

$5.83

5

PLATE, BASE 3

F2S-U8593-00-00

$5.45

6

RIVET (EU0)

90267-48938-00

$5.00

7

CASE, BATTERY

F2S-U8211-00-00

$9.62

8

BOLT, WITH WASHER

90119-06820-00

$3.52

9

NUT, LOCK

F2N-U142L-00-00

$1.00

10

PAD, BATTERY

F1S-U8221-00-00

$2.75

11

MAT 2

F1W-U759C-01-00

$2.50

12

PAD, BATTERY

EU0-U8221-31-00

$1.65

13

PACKING

F2C-U1743-00-00

$1.87

14

BAND, BATTERY 1

F4P-U821D-00-00

$12.20

15

METER ASSY

F4P-U820A-11-00

Unavailable

16

GROMMET

F3J-U822E-01-00

$5.59

17

CLAMP

90464-32801-00

$1.23

18

CLAMP

90464-32801-00

$1.23

19

CLAMP

90464-32801-00

$1.23

20

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

21

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

22

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

23

CLAMP(JN6)

90464-31827-00

Unavailable

24

BASE, CLAMP

F1W-U828M-00-00

$1.23

25

RIVET, BLIND

90267-48806-00

$2.00

26

CLAMP

90464-32801-00

$1.23

27

CLAMP

90464-32801-00

$1.23

28

BASE, CLAMP

F1W-U828M-00-00

$1.23

29

RIVET, BLIND

90267-48806-00

$2.00

30

CLAMP

90464-32801-00

$1.23

31

BASE, CLAMP

F1W-U828M-00-00

$1.23

32

RIVET, BLIND

90267-48806-00

$2.00

33

BAND

90601-200U2-00

$3.16

34

CLAMP

F2C-U4256-00-00

$3.26

35

BASE, CLAMP

F1W-U828M-00-00

$1.23

36

RIVET, BLIND

90267-48806-00

$2.00

37

CLAMP

90464-32801-00

$1.23

38

SWITCH ASSY.

F4P-U8090-02-00

$74.68

39

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

40

FUEL SENDER ASSY

6S5-682E0-10-00

Unavailable

41

DAMPER, STOPPER

60E-82556-10-00

$18.49

42

WIRE, MINUS LEAD

6JS-82116-00-00

$42.05

43

BOLT, WITH WASHER

97513-08514-00

$1.36
