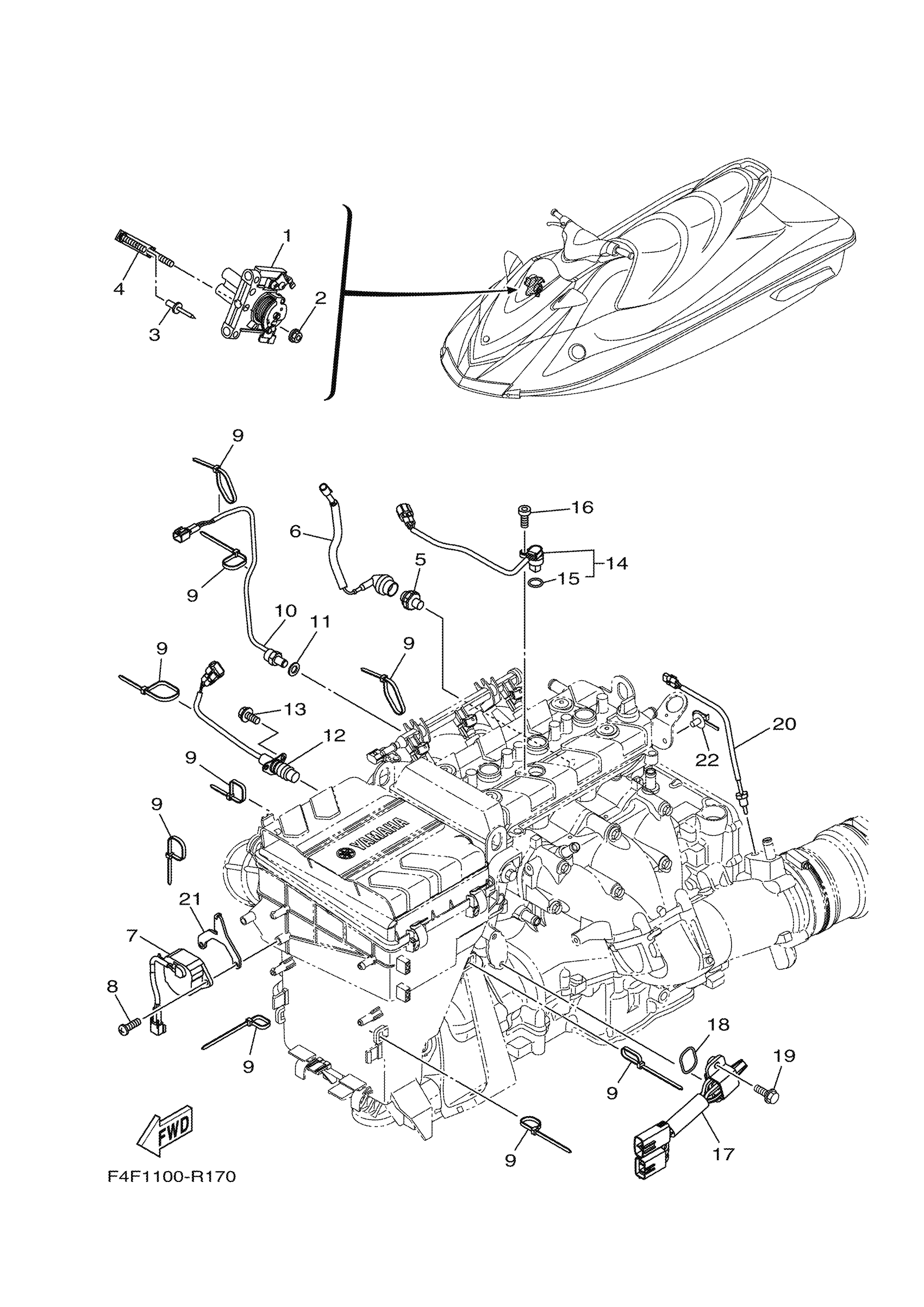

Yamaha VX1050DR (V1 SPORT) F4F1 2016 ELECTRICAL 2 Diagram

#

Description

Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

Unavailable

2

NUT, NYLON (6J8)

95780-08300-00

Unavailable

3

RIVET (EU0)

90267-48938-00

Unavailable

4

BRACKET, THROTTLE

F2N-U7254-00-00

Unavailable

5

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

6

LEAD WIRE ASSY

60E-81315-01-00

Unavailable

7

SWITCH ASSY

60E-8259E-00-00

Unavailable

8

SCREW, TAPPING

97780-60520-00

Unavailable

9

CLAMP

90465-13M18-00

Unavailable

10

THERMOSENSOR ASSY

61A-85790-01-00

Unavailable

11

WASHER, PLATE

92990-10600-00

Unavailable

12

THERMO SWITCH ASSY

6CR-82560-00-00

Unavailable

13

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

Unavailable

14

SENSOR, CAM POSITI

2S3-85896-02-00

Unavailable

15

O-RING

4D9-81168-00-00

$6.99

16

BOLT,SOCKET

91380-06016-00

Unavailable

17

EARTH PLATE COMP.

6CS-8273J-11-00

Unavailable

18

O-RING (341)

93210-32172-00

Unavailable

19

BOLT, WITH WASHER

90119-06MA3-00

Unavailable

20

THERMOSENSOR ASSY

6DE-85790-00-00

Unavailable

21

PLATE

6EY-83618-00-00

Unavailable

22

CLAMP

90464-20005-00

Unavailable
