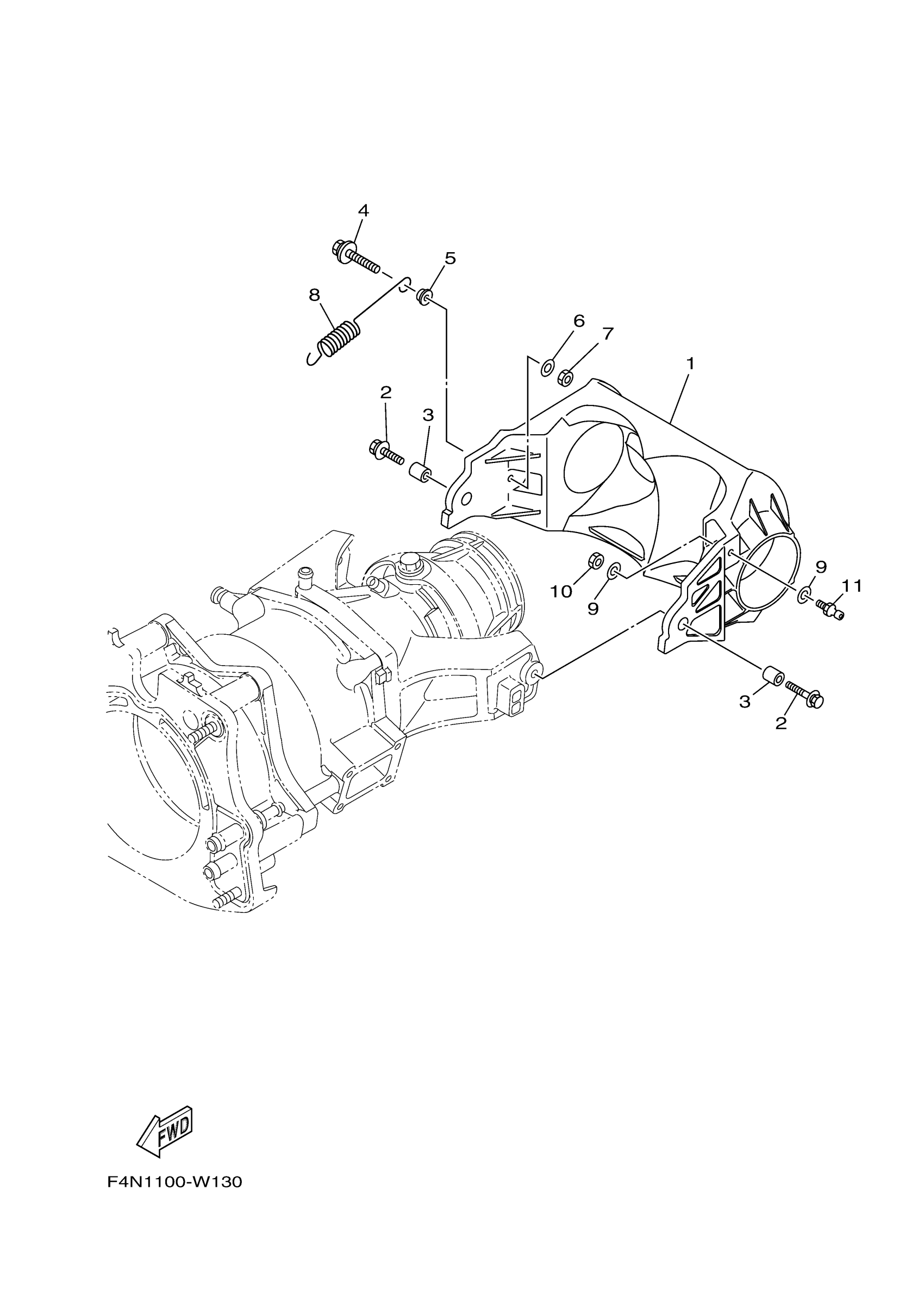

Yamaha VX1050CY (VX CRUISER WITH AUDIO_VX CRUISER) F4NF 2023 JET UNIT 3 Diagram

#

Description

Price

1

GATE, REVERSE

6ET-R1314-10-00

$28.80

2

BOLT, WITH WASHER

90119-08841-00

$1.01

3

COLLAR

90387-08M30-00

$7.40

4

BOLT, WITH WASHER

90119-069UX-00

$2.66

5

COLLAR

90387-06319-00

$2.80

6

WASHER, PLATE

90201-06020-00

$5.86

7

NUT, HEXAGON

95380-06600-00

$4.11

8

SPRING, RETAINER

6S5-R2358-00-00

$2.26

9

WASHER, PLATE

90201-06020-00

$5.86

10

NUT, HEXAGON

95380-06600-00

$4.11

11

STUD, JOINT BALL

6GA-U1461-10-00

$1.94
