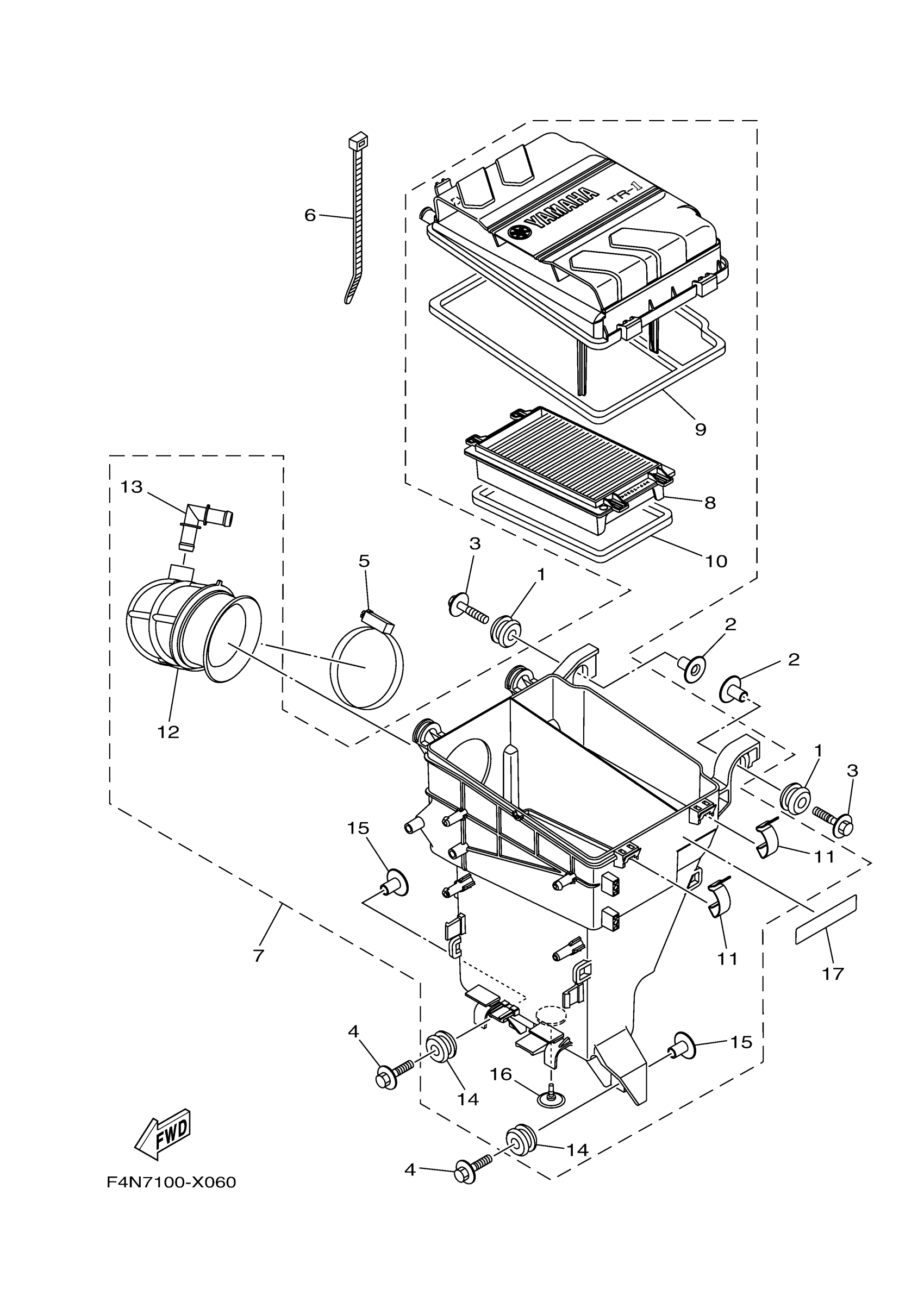

Yamaha VX1050CY (VX CRUISER WITH AUDIO_VX CRUISER) F4NF 2023 INTAKE 2 Diagram

#

Description
Price

1

GROMMET

90480-22M15-00

$10.18

2

COLLAR

90387-08M37-00

$9.81

3

BOLT, WITH WASHER

90119-08169-00

$2.44

4

BOLT, WITH WASHER

90119-08187-00

$3.17

5

HOSE CLAMP ASSY

90450-90002-00

$16.99

6

CLAMP

90465-13M18-00

$1.71

7

AIR CLEANER ASSY.

6EY-14410-10-00

$256.05

8

ELEMENT, AIR CLEANER

6EY-14451-00-00

$40.75

9

. SEAL

6EY-14462-00-00

$10.99

10

. SEAL

6EY-14452-00-00

$6.36

11

. HOOK

6EY-14436-00-00

$5.92

12

. PIPE

6EY-14419-00-00

$83.32

13

. PIPE, JOINT

6EY-14485-00-00

$9.08

14

GROMMET

90480-22M15-00

$10.18

15

COLLAR

90387-08M37-00

$9.81

16

. VALVE

6EY-14470-01-00

$3.64

17

LABEL, CAUTION 7

60E-83627-00-00

$4.55
