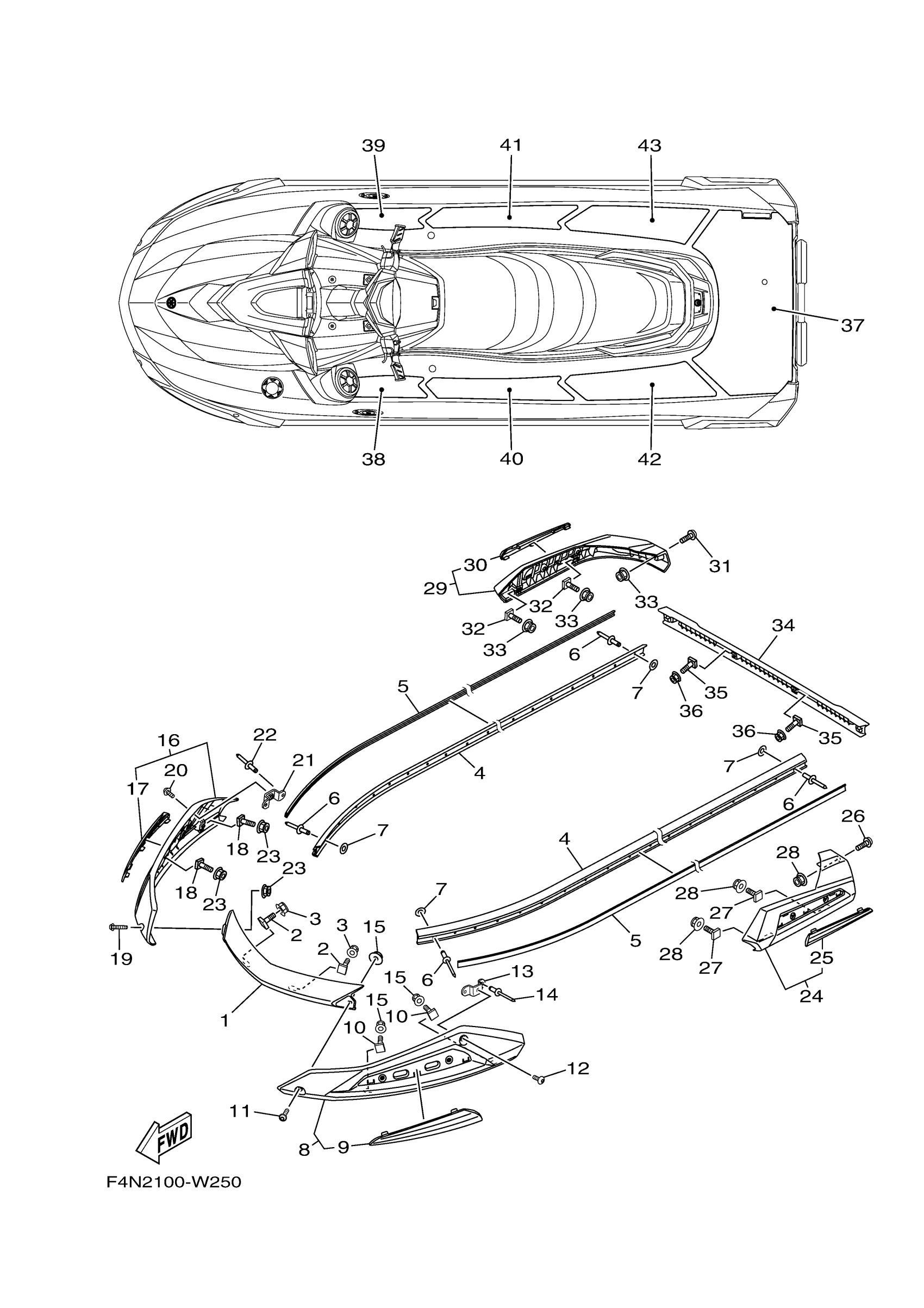

Yamaha VX1050CW (VX CRUISER WITH AUDIO_VX CRUISER) F4N3 2021 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4N-U2511-20-00

$27.60

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F4N-U2512-00-00

$32.82

5

INNER,GUNWALE

F4N-U2519-40-00

$23.12

5

INNER,GUNWALE

F4N-U2519-51-00

$19.39

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

GUNWALE ASSY.

F4N-U2510-A0-00

$68.64

8

GUNWALE ASSY.

F4N-U2510-C0-00

$43.27

9

. GUNWALL INSIDE

F4N-U2514-A0-00

$32.82

9

GUNWALL INSIDE

F4N-U2514-C0-00

$32.82

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

13

BRACKET

F3X-U4949-00-00

$2.66

14

RIVET, BLIND

90267-489U6-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE ASSY.

F4N-U2510-B0-00

$68.64

16

GUNWALE ASSY.

F4N-U2510-D0-00

$43.27

17

. GUNWALL INSIDE

F4N-U2514-B0-00

$32.82

17

GUNWALL INSIDE

F4N-U2514-D0-00

Unavailable

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

SCREW

F3X-U7823-12-00

$1.25

20

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

21

BRACKET

F3X-U4949-00-00

$2.66

22

RIVET, BLIND

90267-489U6-00

Unavailable

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

STERN GUNWALE COMP.

F4N-U2504-A0-00

$37.30

24

STERN GUNWALE COMP.

F4N-U2504-C0-00

$37.30

25

INNER GUNWALE, AFT

F4N-U255C-A0-00

Unavailable

25

INNER GUNWALE, AFT

F4N-U255C-C0-00

Unavailable

26

SCREW

F4P-U7823-00-00

$1.43

27

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

28

NUT, LOCK

F2N-U142L-00-00

$1.00

29

STERN GUNWALE COMP.

F4N-U2504-B0-00

$37.30

29

STERN GUNWALE COMP.

F4N-U2504-D0-00

$37.30

30

INNER GUNWALE, AFT

F4N-U255C-B0-00

Unavailable

30

INNER GUNWALE, AFT

F4N-U255C-D0-00

Unavailable

31

SCREW

F4P-U7823-00-00

$1.43

32

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

33

NUT, LOCK

F2N-U142L-00-00

$1.00

34

COVER, GUNWALE 1

F4P-U252C-22-00

Unavailable

35

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

36

NUT, LOCK

F2N-U142L-00-00

$1.00

37

MAT, UPPER

F4N-U3581-00-00

$71.80

38

MAT, STEP 1

F6G-U351H-00-00

$11.18

39

MAT, STEP 2

F6G-U351J-00-00

$11.18

40

MAT, STEP 3

F4N-U351K-00-00

$15.66

41

MAT, STEP 4

F4N-U351M-00-00

$15.66

42

MAT, STEP 5

F4N-U351N-00-00

$23.87

43

MAT, STEP 6

F4N-U351P-00-00

$23.87
