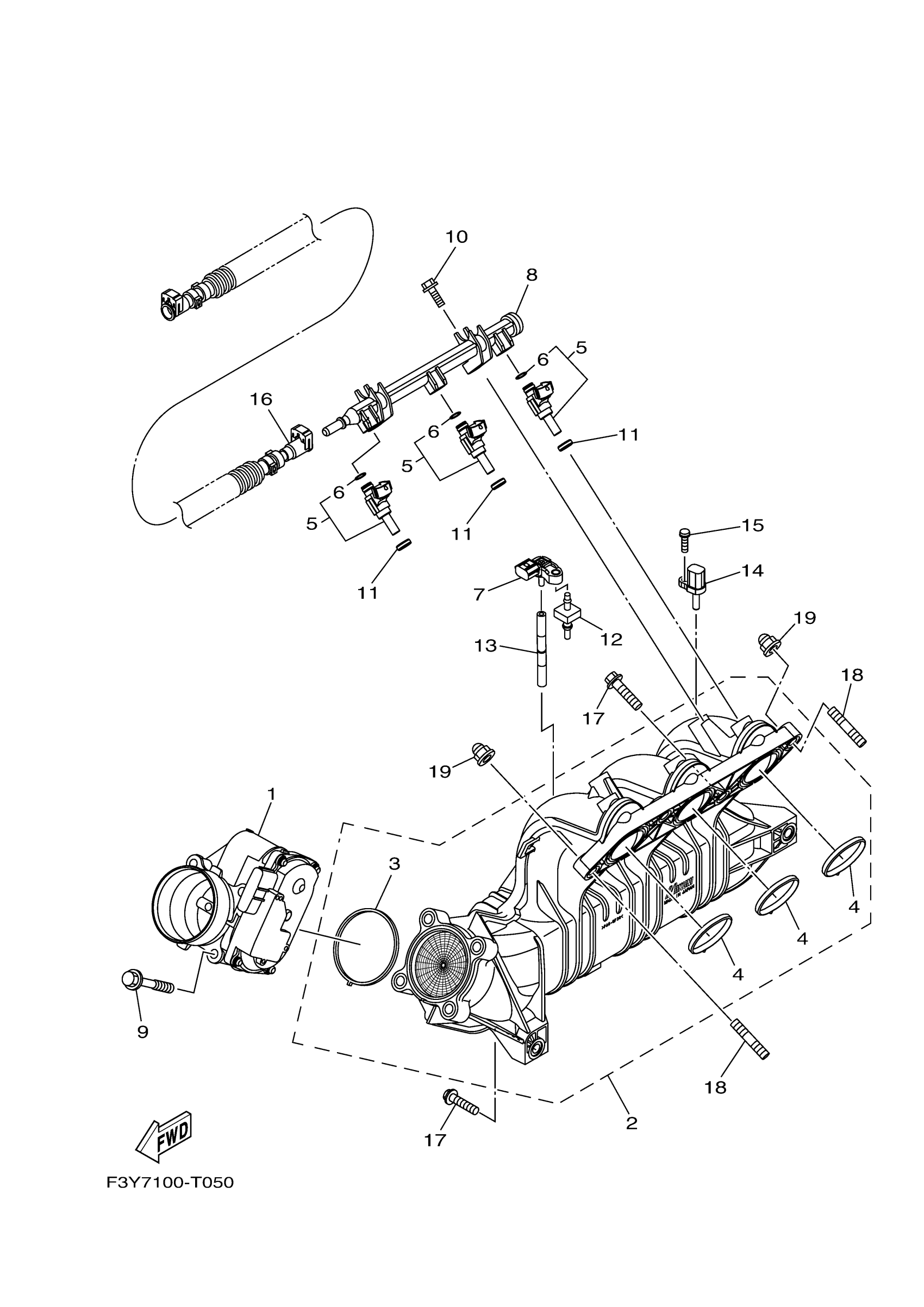

Yamaha VX1050CU (VX) F5T3 2019 INTAKE Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6EY-13750-01-00

Unavailable

2

MANIFOLD, INTAKE 1

6EY-13641-03-00

Unavailable

3

. GASKET, INSULATING

6EY-14156-00-00

$50.99

4

. GASKET

6EY-14126-00-00

$14.44

5

INJECTOR

2HC-13761-00-00

$94.84

6

. O-RING

68V-1416A-00-00

$10.18

7

SENSOR, PRESSURE

5S7-82380-00-00

$151.15

8

DELIVERY PIPE

6EY-12880-01-00

$262.11

9

BOLT, FLANGE

90105-08243-00

$1.82

10

BOLT, FLANGE

95814-06020-00

$6.22

11

. GASKET, MANIFOLD

8FP-13556-10-00

$5.55

12

GROMMET

6BH-14445-00-00

$20.99

13

HOSE, VACUUM SENSING 3

6EY-13532-00-00

$13.99

14

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$47.81

15

SCREW, PANHEAD TAPPING

97702-50520-00

$0.26

16

FUEL HOSE ASSY

6EY-2450B-10-00

$134.83

17

BOLT, WITH WASHER

97513-08535-00

$1.74

18

BOLT, STUD

95612-08625-00

Unavailable

19

NUT, CROWN(4BR)

90176-08080-00

Unavailable
