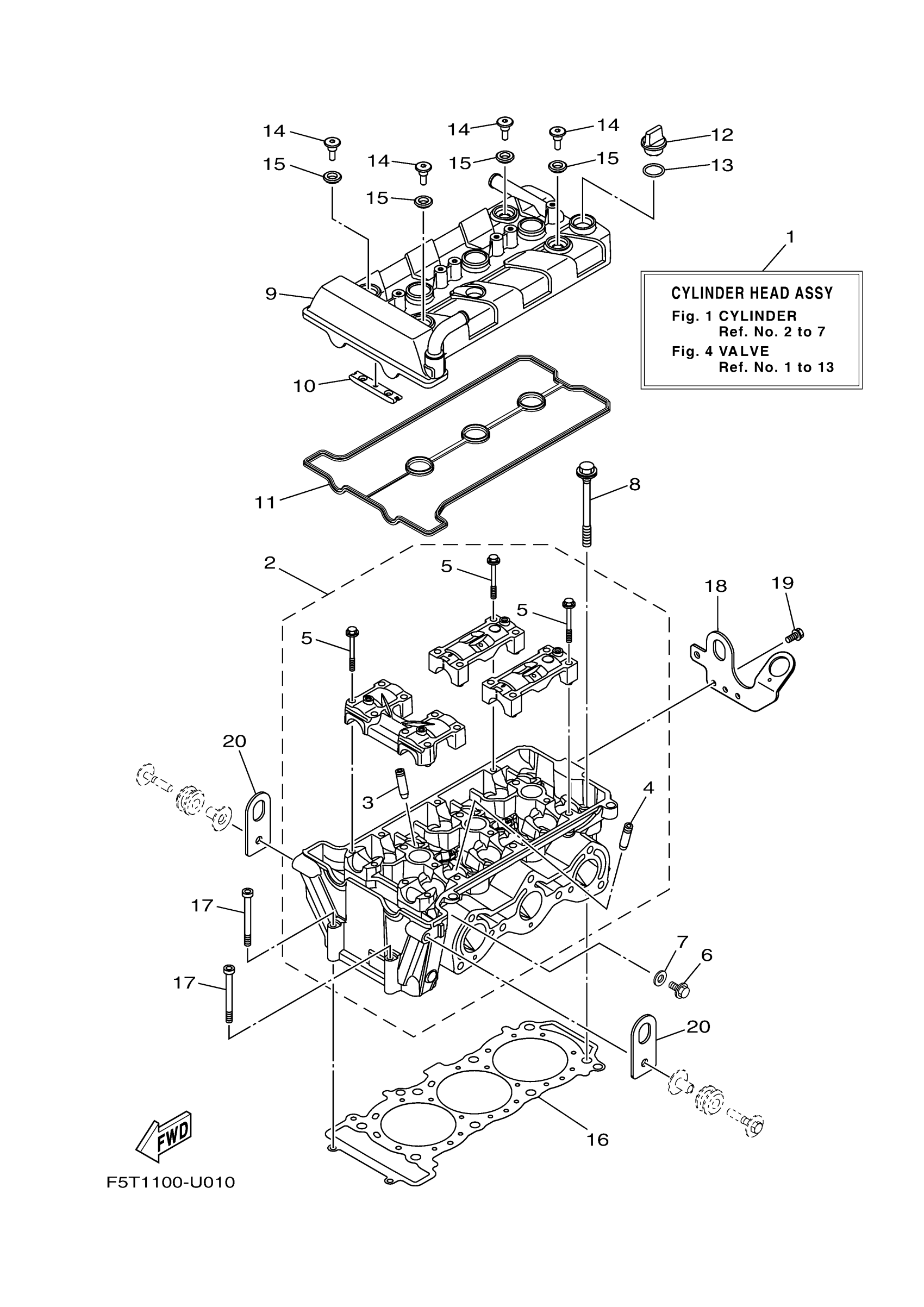

Yamaha VX1050CU (VX) F5T3 2019 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE

6EY-11110-00-00

$1,498.29

2

CYLINDER HEAD ASSY

6EY-11102-00-00

$1,271.20

3

GUIDE, VALVE 1

2C0-11133-11-00

$53.86

4

GUIDE, VALVE 2

8HF-11134-10-00

$80.02

5

BOLT, WASHER BASED

90105-06027-00

$5.80

6

BOLT, FLANGE(2UJ)

95024-08012-00

$5.75

7

GASKET

90430-08119-00

Unavailable

8

BOLT, WITH WASHER

90119-10004-00

$7.40

9

COVER, CYLINDER HEAD 1

6EY-11191-10-00

$172.71

10

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

11

. GASKET, HEAD COVER 1

6EY-11193-00-00

$14.81

12

PLUG, OIL

3Y1-15363-10-00

$15.94

13

O-RING (646)

93210-19123-00

Unavailable

14

BOLT(4BP)

90109-066F0-00

$5.96

15

RUBBER, MOUNT 1

5VY-1111G-00-00

$9.99

16

GASKET, CYLINDER H

6EY-11181-01-00

$156.85

17

BOLT, SOCKET

91314-06065-00

Unavailable

18

HANGER, ENGINE 2

6EY-1111E-10-00

$27.26

19

BOLT, WITH WASHER

90119-06078-00

$2.27

20

HANGER, ENGINE

6EY-11119-00-00

$6.82
