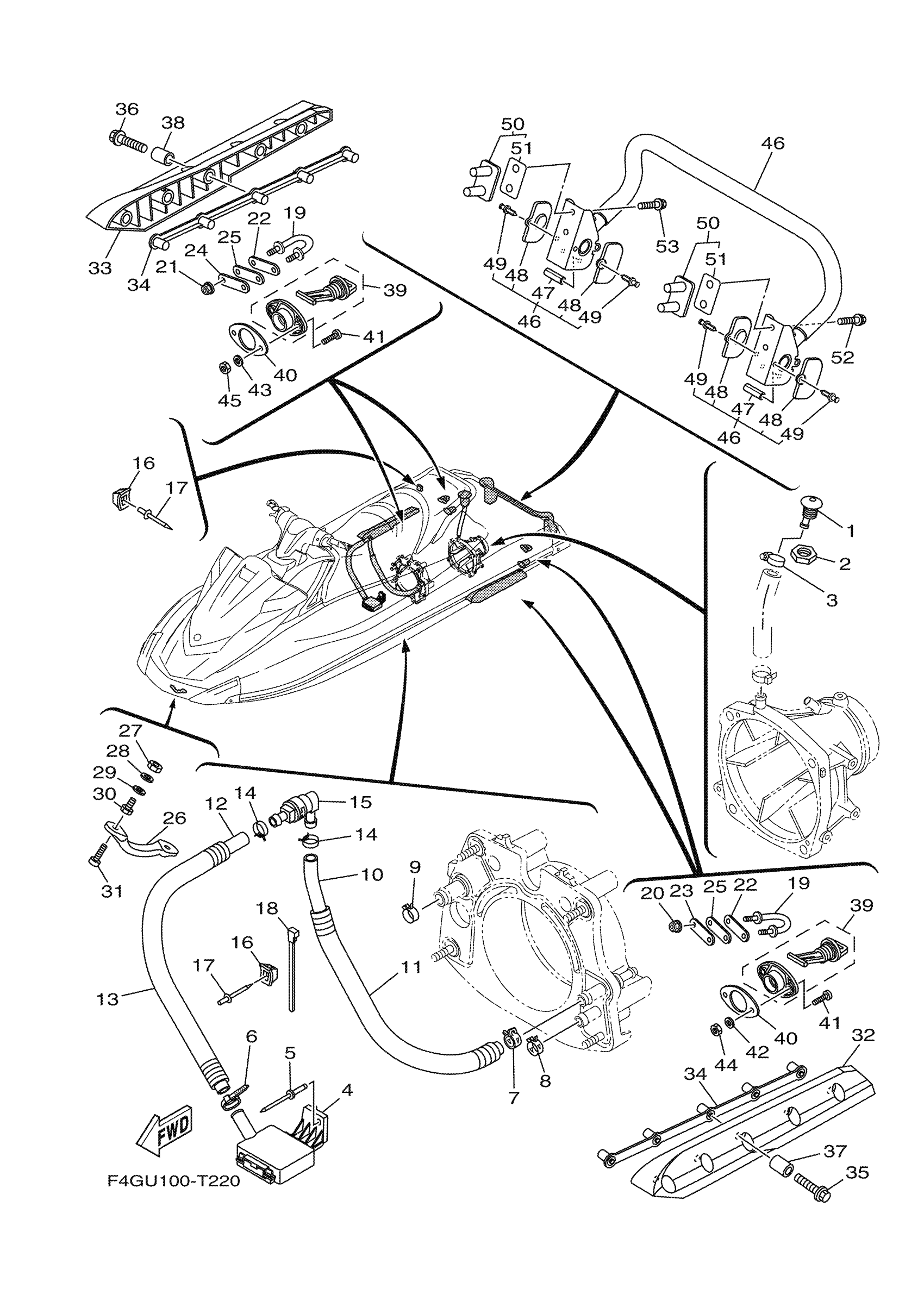

Yamaha VX1050CT (VX) F4GT 2018 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

STRAINER, BILGE

F1B-U761D-02-00

$5.15

5

RIVET, BLIND

90267-489U8-00

$0.99

6

CLAMP

90465-10098-00

$1.68

7

CLIP

90467-21800-00

$2.87

8

CLIP

90467-200A0-00

$7.40

9

CLIP

90467-26800-00

$2.66

10

HOSE 2

6EY-U771G-00-00

$12.11

11

TUBE,2

6EY-U773E-00-00

$6.14

12

HOSE (L860)

90445-20804-00

$12.86

13

TUBE,2

6EX-U773E-00-00

$6.06

14

CLIP

90467-18804-00

$2.72

15

JOINT, HOSE

68N-5112T-00-00

$48.96

16

BASE, CLAMP

F1W-U828M-00-00

$1.23

17

RIVET, BLIND

90267-489U6-00

$1.37

18

CLAMP

90464-32801-00

$1.23

19

STERN EYE

F2N-U1628-02-00

$4.96

20

NUT, NYLON (6J8)

95780-08300-00

$10.55

21

NUT, NYLON (6J8)

95780-08300-00

$10.55

22

PLATE A

GP7-U4953-10-00

$3.52

23

PLATE A

GP7-U4953-10-00

$3.52

24

PLATE A

GP7-U4953-10-00

$3.52

25

PACKING

F1B-U1653-03-00

Unavailable

26

BOW EYE 1

F1K-61624-00-00

$42.60

27

NUT.HEX.(COARS)

99780-12600-00

$2.80

28

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

29

WASHER

F0X-61637-00-00

$1.29

30

NUT

F0X-61652-01-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

32

STABILIZER LH

F1S-U883N-01-00

$33.32

33

STABILIZER RH

F1S-U883P-01-00

$33.32

34

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

35

BOLT,WASHER BASED

90105-088F9-00

$2.91

36

BOLT,WASHER BASED

90105-088F9-00

$2.91

37

SPACER

F2N-U8169-10-00

$1.15

38

SPACER

F2N-U8169-10-00

$1.15

39

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

40

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

41

SCREW, PAN HEAD

9788R-05025-00

$2.52

42

WASHER

9299R-05200-00

$3.16

43

WASHER

9299R-05200-00

$3.16

44

NUT, FLANGE

9572R-05300-00

$1.43

45

NUT, FLANGE

9572R-05300-00

$1.43

46

LADDER, STEP ASSY

F2X-U278A-00-00

$127.50

47

. SLEEVE 1

F1W-U771H-00-00

$22.97

48

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.29

49

. PIN

F2C-U1314-00-00

$2.44

50

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

51

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

52

BOLT, WITH WASHER

90119-08844-00

$1.29

53

BOLT, WITH WASHER

90119-08844-00

$1.29
