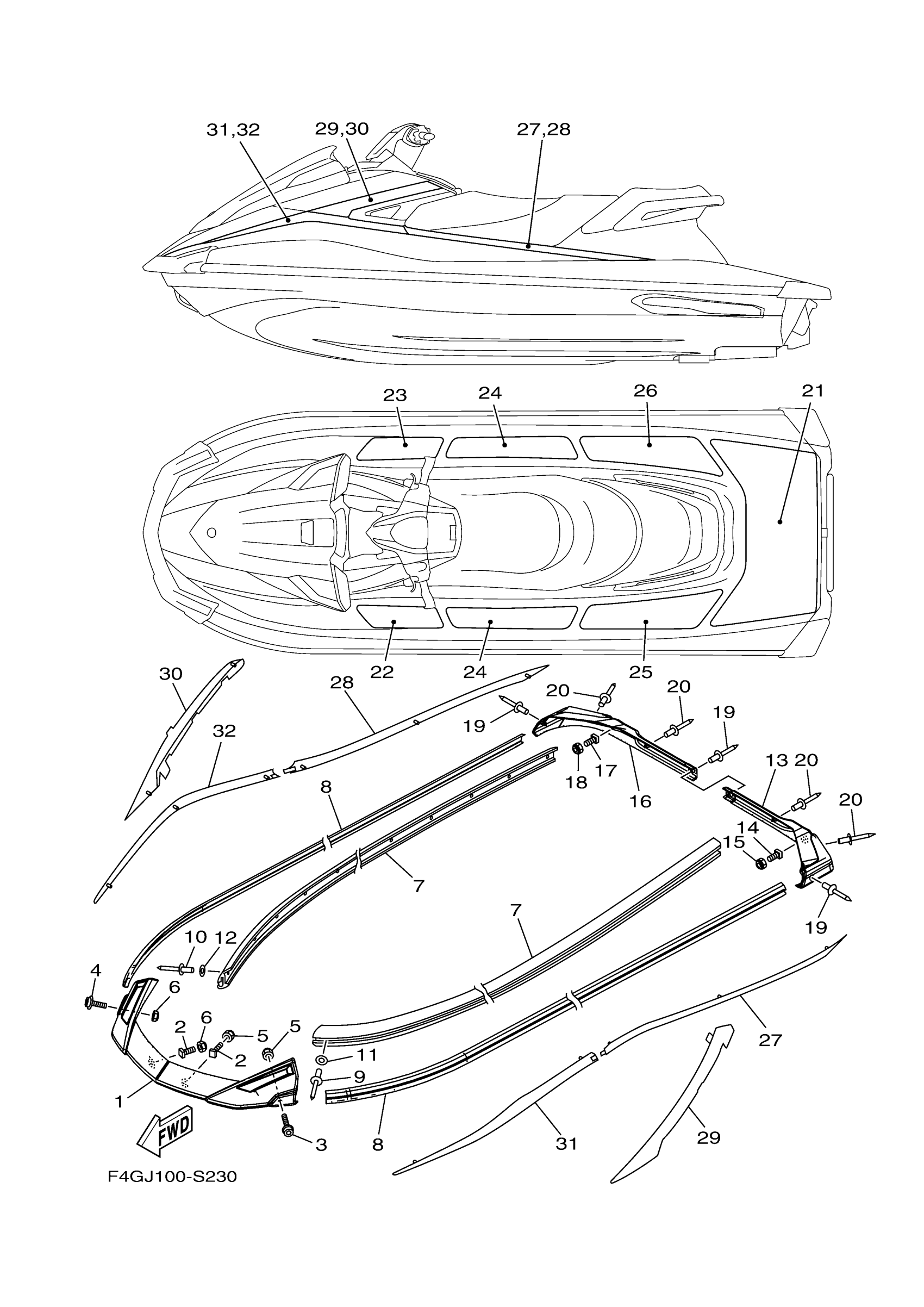

Yamaha VX1050CT (VX) F4GT 2018 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW (YB)

F2X-U2511-10-00

$48.05

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$3.21

4

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$3.21

5

NUT, LOCK

F2N-U142L-00-00

$1.00

6

NUT, LOCK

F2N-U142L-00-00

$1.00

7

GUNWALE, SIDE (YB)

F2X-U2512-10-00

$44.18

8

INNER,GUNWALE (GREEN)

F2X-U2519-90-00

$25.57

9

RIVET, BLIND

90267-489U8-00

$1.37

10

RIVET, BLIND

90267-489U8-00

$1.37

11

WASHER

9299R-05200-00

$4.60

12

WASHER

9299R-05200-00

$4.60

13

GUNWALE, STERN 1 (YB)

F2X-U251D-10-00

$18.60

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE, STERN 2 (YB)

F2X-U251E-10-00

$18.60

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

RIVET, BLIND

90267-48825-00

$2.16

20

RIVET, BLIND

90267-48825-00

$2.16

21

MAT, UPPER

F2X-U3581-10-00

$325.36

22

MAT, STEP 1

F2X-U351H-10-00

$19.39

23

MAT, STEP 2

F2X-U351J-10-00

$19.39

24

MAT, STEP 3

F2X-U351K-10-00

$17.90

25

MAT, STEP 4

F2X-U351M-10-00

$25.36

26

MAT, STEP 5

F2X-U351N-10-00

$25.36

27

ORNAMENT, STERN LH

F2X-U89A8-70-00

$44.76

28

ORNAMENT, STERN RH

F2X-U89A9-70-00

$44.76

29

ORNAMENT, MIDDLE LH

F2X-U89AA-70-00

$28.34

30

ORNAMENT, MIDDLE RH

F2X-U89AB-70-00

$28.34

31

ORNAMENT, BOW LH

F2X-U89AC-70-00

$44.76

32

ORNAMENT, BOW RH

F2X-U89AD-70-00

$39.53
