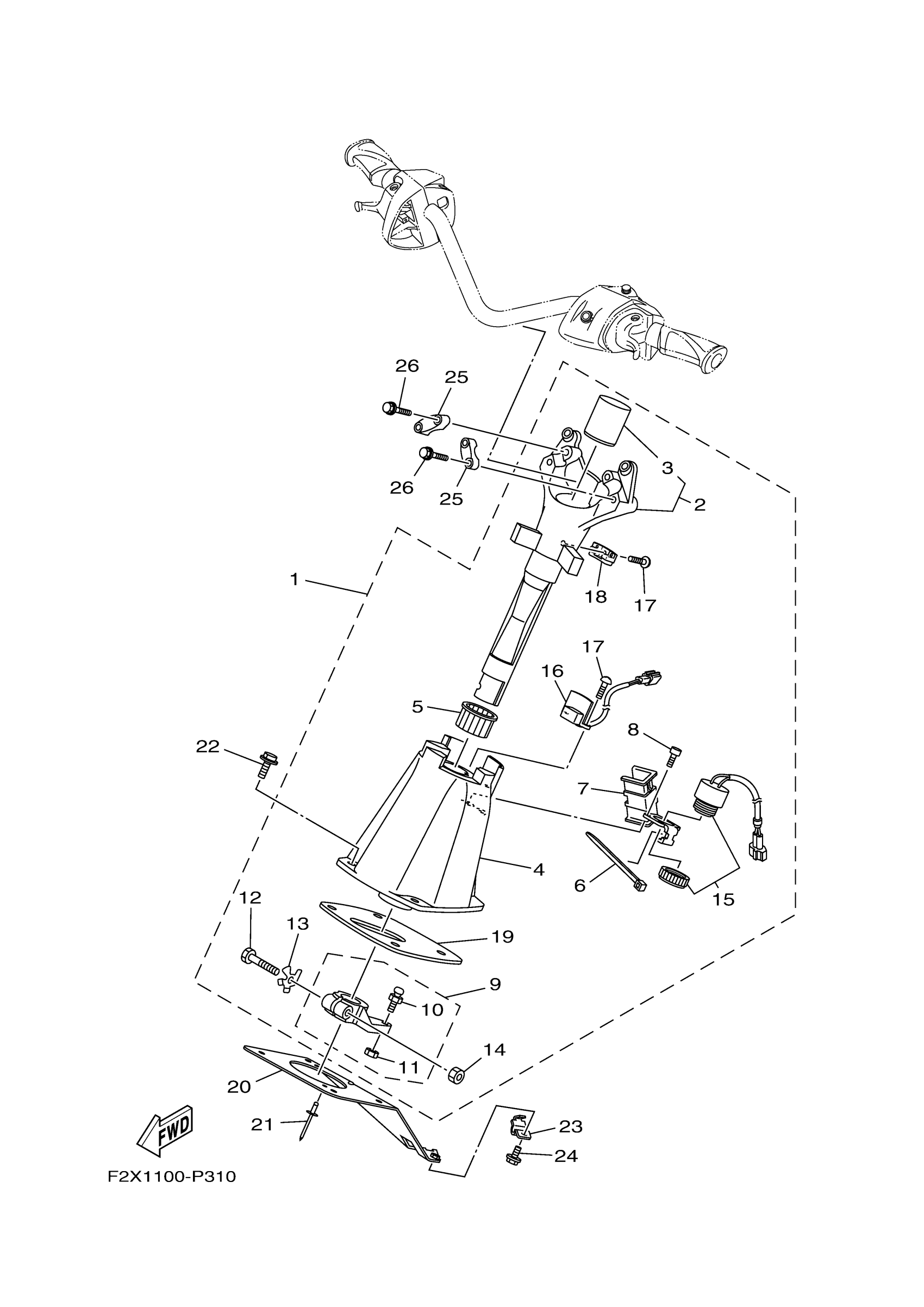

Find the part on the Steering 2 diagram for your 2017 Yamaha VX (VX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha VX (VX1050CS) Steering 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING MASTER ASSY

F2X-61400-04-00

1
Out of stock

2

. SHAFT ASSY

F2X-67410-00-00

1

$194.99

In stock

3

.. PIPE, SEAL

F2X-61435-00-00

1

$11.99

In stock

4

HOUSING ASSY

F2X-6152M-02-00

1

$151.99

In stock

5

. BUSH

F1K-6134M-00-00

1

$5.93

In stock

6

BAND

1UA-82591-00-00

1
Out of stock

7

. SPACER, BRKT

F2X-6146H-00-00

1

$19.98

In stock

8

SCREW

F1B-613C1-10-00

1
Out of stock

9

ARM ASSY.

F1K-6153R-01-00

1

$137.49

In stock

10

STUD, JOINT BALL

EU0-61461-02-00

1

$11.47

In stock

11

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

12

.. BOLT

F1K-61355-00-00

1

$17.49

In stock

13

. PLATE, RETAINING

F1K-6142B-00-00

1

$6.00

In stock

14

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

15

BUZZER

F1S-68341-00-00

1

$114.49

In stock

16

SENSOR, MAGNET

F2X-6838B-02-00

1

$135.99

In stock

17

. SCREW

F2X-613C1-00-00

1

$1.77

In stock

18

MAGNET

F2X-6838C-01-00

1

$26.49

In stock

19

. SEAL, RUBBER

F1K-6143C-00-00

1

$42.99

In stock

20

BRACKET,STOPPER CABLE

F1K-U1467-01-00

1

$55.37

In stock

21

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

22

BOLT,WITH WASHER

90119-08870-00

1

$16.91

In stock

23

STOPPER, CABLE

F1K-U1468-03-00

1

$5.92

In stock

24

BOLT, WITH WASHER

90119-06830-00

—

$1.22

In stock

25

HOLDER, HANDLE UPPER

EU0-23814-32-00

1

$20.99

In stock

26

BOLT, WITH WASHER

90119-08844-00

1

$1.46

In stock
