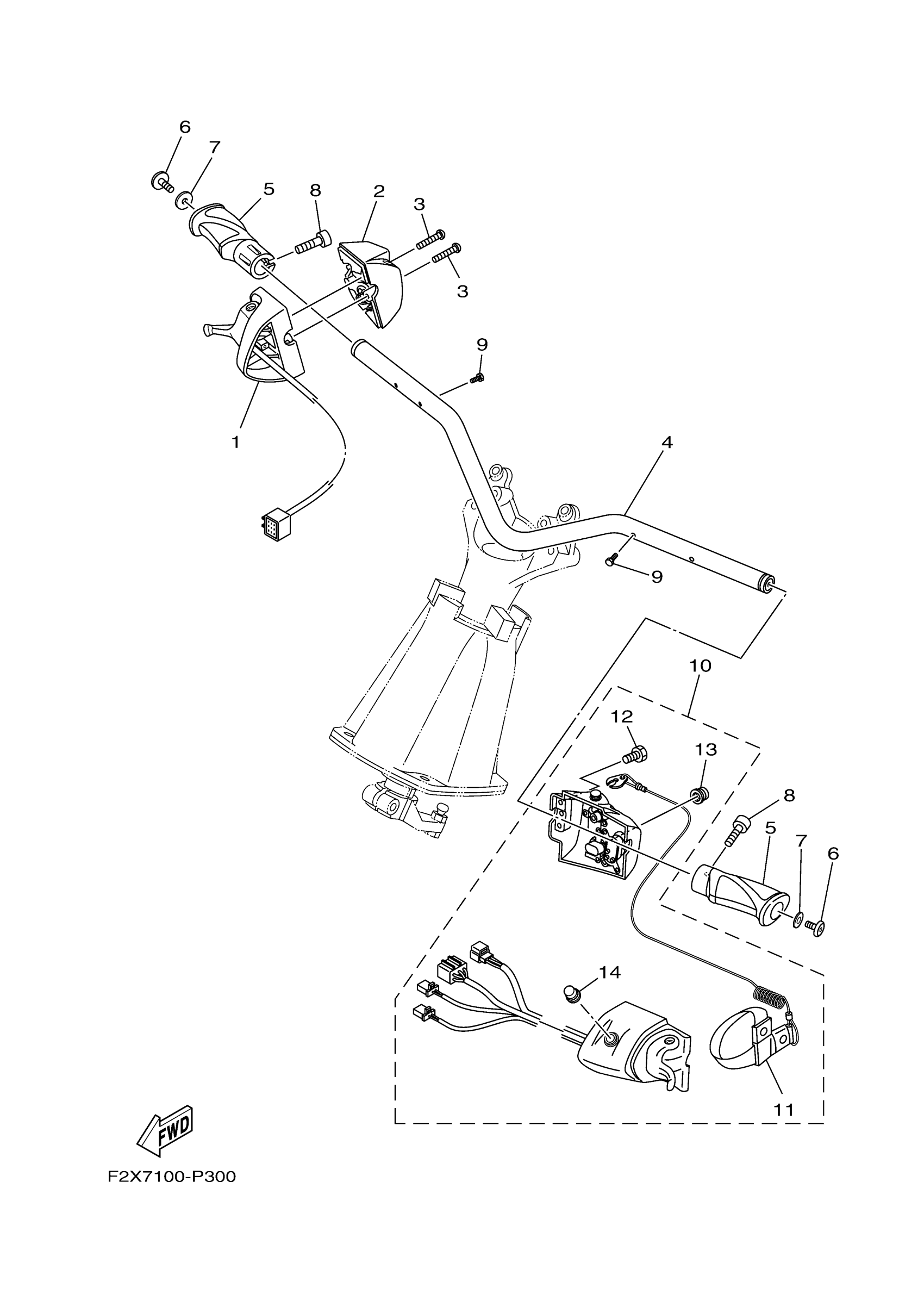

Find the part on the Steering 1 diagram for your 2017 Yamaha VX (VX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha VX (VX1050CS) Steering 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE LEVER COMP

6CS-14305-13-00

1
Out of stock

2

CASE

6EX-82154-00-00

1
Out of stock

3

BOLT, THROTTLE

6CS-6725F-00-00

1
Out of stock

4

HANDLE

F2X-U1552-10-00

1
Out of stock

5

GRIP,HANDLE

F2S-U155D-03-00

1
Out of stock

6

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

1
Out of stock

7

WASHER, PLATE

90201-068G0-00

1
Out of stock

8

BOLT

F2S-U1516-00-00

1
Out of stock

9

BOLT

91380-04030-00

1
Out of stock

10

SWITCH BOX ASSY

F2X-68310-03-00

1
Out of stock

11

. LANYARD, STOP SWITCH

EW2-68348-00-00

1
Out of stock

12

BOLT, THROTTLE

6CS-6725F-00-00

1
Out of stock

13

. STOP BUTTON COMP

FK7-68312-02-00

1
Out of stock

14

. START BUTTON COMP

FK7-68313-02-00

1
Out of stock
