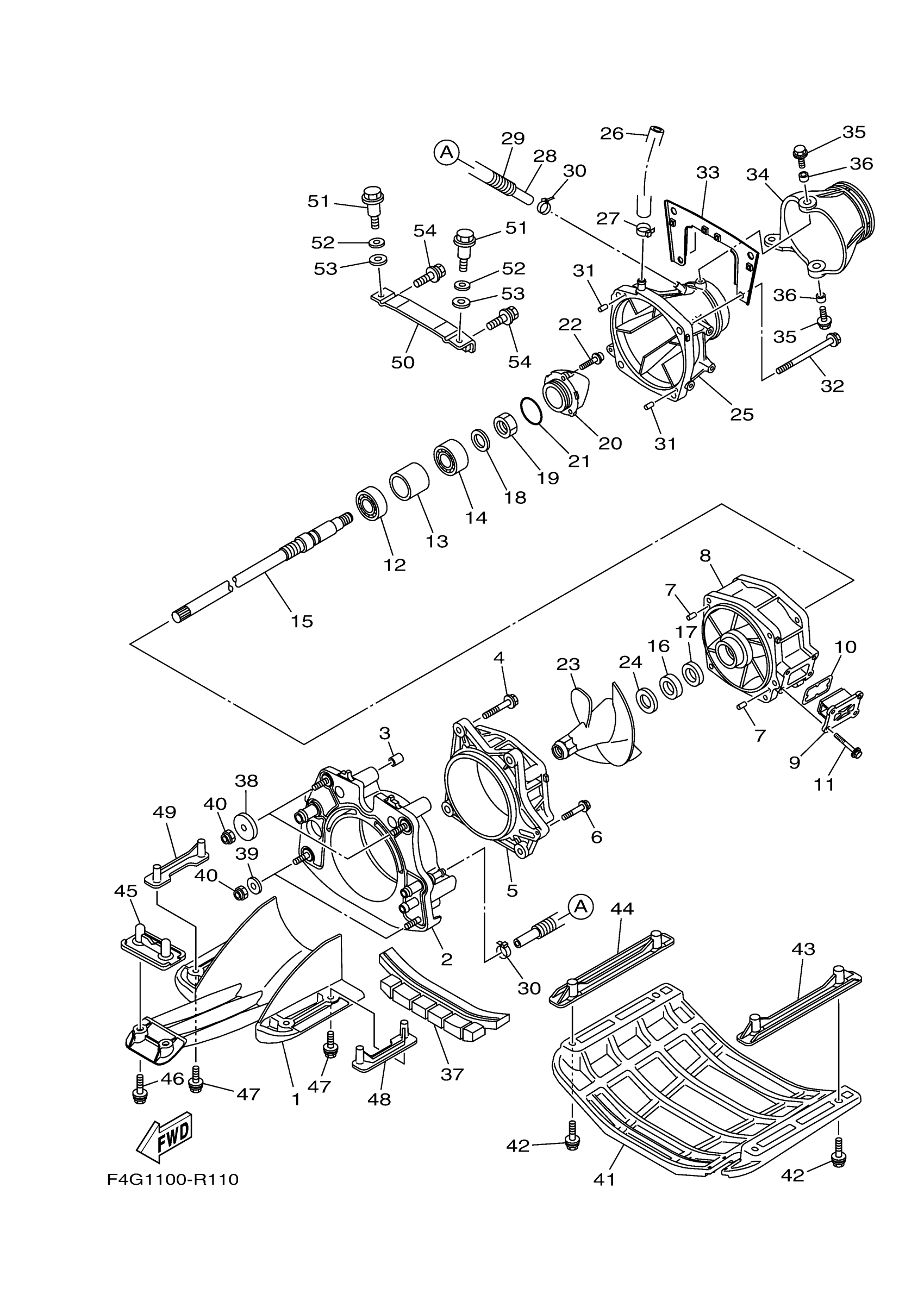

Yamaha VX1050CR (VX) F4G7 2016 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6EX-R1333-00-00

Unavailable

2

PLATE, TRANSOM

6CS-G5831-10-00

Unavailable

3

PIN, DOWEL(4JT)

99590-14016-00

$4.24

4

BOLT, WITH WASHER

90119-10811-00

Unavailable

5

HOUSING, IMPELLER

6CR-R1312-00-00

Unavailable

6

BOLT, WITH WASHER

90119-06894-00

Unavailable

7

PIN, DOWEL (614)

93606-12019-00

$4.24

8

DUCT, IMPELLER SET

99999-04430-00

Unavailable

9

FILTER

6EX-G6882-00-00

Unavailable

10

. O-RING

66V-42414-00-00

Unavailable

11

BOLT,WITH WASHER

90119-06890-00

Unavailable

12

BEARING (6K8)

93306-205U1-00

$25.99

13

SPACER 1

65V-45538-00-00

Unavailable

14

BEARING

93306-304XB-00

Unavailable

15

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

16

OIL SEAL

93101-28M66-00

Unavailable

17

OIL SEAL

93101-28002-00

Unavailable

18

WASHER

9299R-16600-00

Unavailable

19

NUT

95317-16700-00

Unavailable

20

CAP

6B6-51326-10-00

Unavailable

21

. O-RING

93210-44003-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

Unavailable

23

IMPELLER

6EY-R1321-01-00

Unavailable

24

SPACER

66V-R1348-10-00

Unavailable

25

NOZZLE

6EX-R1318-01-00

Unavailable

26

HOSE 1

6CN-U72M2-00-00

Unavailable

27

BAND, HOSE 18

90601-118UF-00

Unavailable

28

HOSE (L355)

90445-14807-00

Unavailable

29

HOSE (L320)

90446-20MF5-00

Unavailable

30

CLAMP

90465-10098-00

Unavailable

31

PIN, DOWEL (614)

93606-12019-00

$4.24

32

BOLT, WITH WASHER

90119-10807-00

Unavailable

33

BRACKET 1

6EX-R1341-00-00

Unavailable

34

NOZZLE, DEFLECTOR

6EX-R1313-00-00

Unavailable

35

BOLT, WITH WASHER

90119-08841-00

Unavailable

36

COLLAR(6R7)

90387-08M06-00

Unavailable

37

SPACER

F2X-U72C0-00-00

Unavailable

38

WASHER

F1S-U725E-01-00

Unavailable

39

WASHER, PLATE

90201-10801-00

Unavailable

40

NUT, NYLON

9572R-10300-00

Unavailable

41

PLATE 2

F2X-U273B-00-00

Unavailable

42

BOLT, WITH WASHER

90119-08829-00

Unavailable

43

BRACKET 2

F2X-U8572-00-00

Unavailable

44

BRACKET 2

F2X-U8572-00-00

Unavailable

45

BRACKET, 3

F2S-U8577-00-00

Unavailable

46

BOLT, WITH WASHER

90119-08829-00

Unavailable

47

BOLT, WITH WASHER

90119-08829-00

Unavailable

48

BRACKET 1

F2X-U8571-00-00

Unavailable

49

BRACKET 1

F2X-U8571-00-00

Unavailable

50

BRACKET

F2C-U7557-01-00

Unavailable

51

BOLT

90109-08043-00

Unavailable

52

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

53

GASKET

90430-12002-00

Unavailable

54

BOLT, WITH WASHER

90119-08800-00

Unavailable
