- VX1050CR (VX) F4G7 2016
HULL & DECK

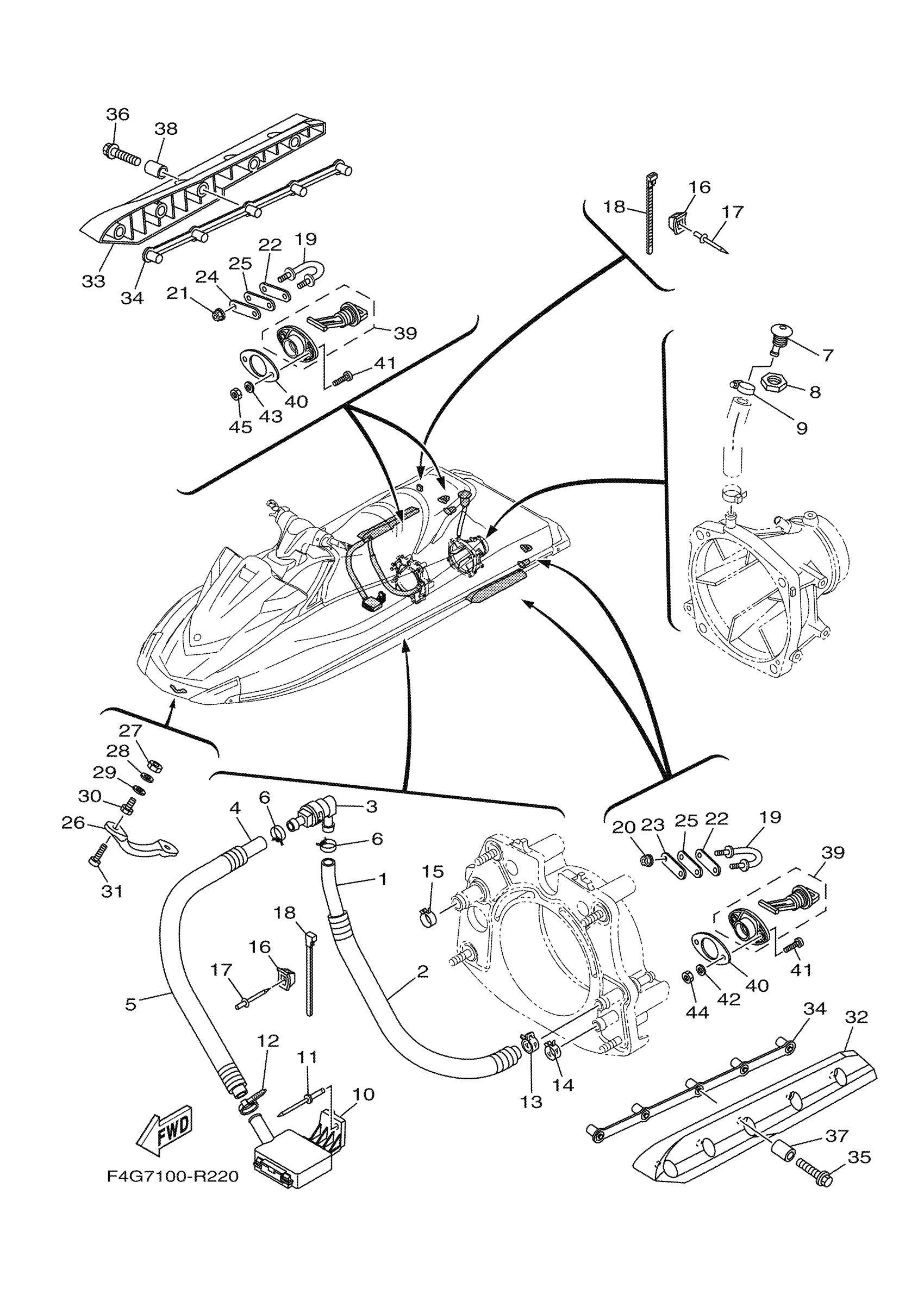

Yamaha VX1050CR (VX) F4G7 2016 HULL & DECK Diagram
#
1
HOSE 2
6EY-U771G-00-00
Unavailable
2
TUBE,2
6EY-U773E-00-00
Unavailable
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
HOSE (L860)
90445-20804-00
Unavailable
5
TUBE,2
6EX-U773E-00-00
Unavailable
6
CLIP
90467-18804-00
Unavailable
7
SPOUT
F1W-U269B-00-00
Unavailable
8
NUT
EU0-61652-00-00
Unavailable
9
BAND, HOSE 18
90601-118UF-00
Unavailable
10
STRAINER, BILGE
F1B-U761D-02-00
Unavailable
11
RIVET, BLIND
90267-489U8-00
Unavailable
12
CLAMP
90465-10098-00
Unavailable
13
CLIP
90467-21800-00
Unavailable
14
CLIP
90467-200A0-00
Unavailable
15
CLIP
90467-26800-00
Unavailable
16
BASE, CLAMP
F1W-U828M-00-00
Unavailable
17
RIVET, BLIND
90267-48802-00
Unavailable
18
CLAMP
90464-32801-00
Unavailable
19
STERN EYE
F2N-U1628-02-00
Unavailable
20
NUT, NYLON (6J8)
95780-08300-00
Unavailable
21
NUT, NYLON (6J8)
95780-08300-00
Unavailable
22
PLATE A
GP7-U4953-10-00
Unavailable
23
PLATE A
GP7-U4953-10-00
Unavailable
24
PLATE A
GP7-U4953-10-00
Unavailable
25
PACKING
F1B-U1653-03-00
Unavailable
26
BOW EYE 1
F1K-61624-00-00
Unavailable
27
NUT.HEX.(COARS)
99780-12600-00
Unavailable
28
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
29
WASHER
F0X-61637-00-00
Unavailable
30
NUT
F0X-61652-01-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
32
STABILIZER LH
F1S-U883N-01-00
Unavailable
33
STABILIZER RH
F1S-U883P-01-00
Unavailable
34
BRACKET,STABILIZER
F1X-U883T-02-00
Unavailable
35
BOLT,WASHER BASED
90105-088F9-00
Unavailable
36
BOLT,WASHER BASED
90105-088F9-00
Unavailable
37
SPACER
F2N-U8169-10-00
Unavailable
38
SPACER
F2N-U8169-10-00
Unavailable
39
DRAIN PLUG ASSY
F1S-U2280-02-00
Unavailable
40
PACKING, DRAIN
F1S-U2285-01-00
Unavailable
41
SCREW, PAN HEAD
9788R-05025-00
Unavailable
42
WASHER
9299R-05200-00
Unavailable
43
WASHER
9299R-05200-00
Unavailable
44
NUT, FLANGE
9572R-05300-00
Unavailable
45
NUT, FLANGE
9572R-05300-00
Unavailable
