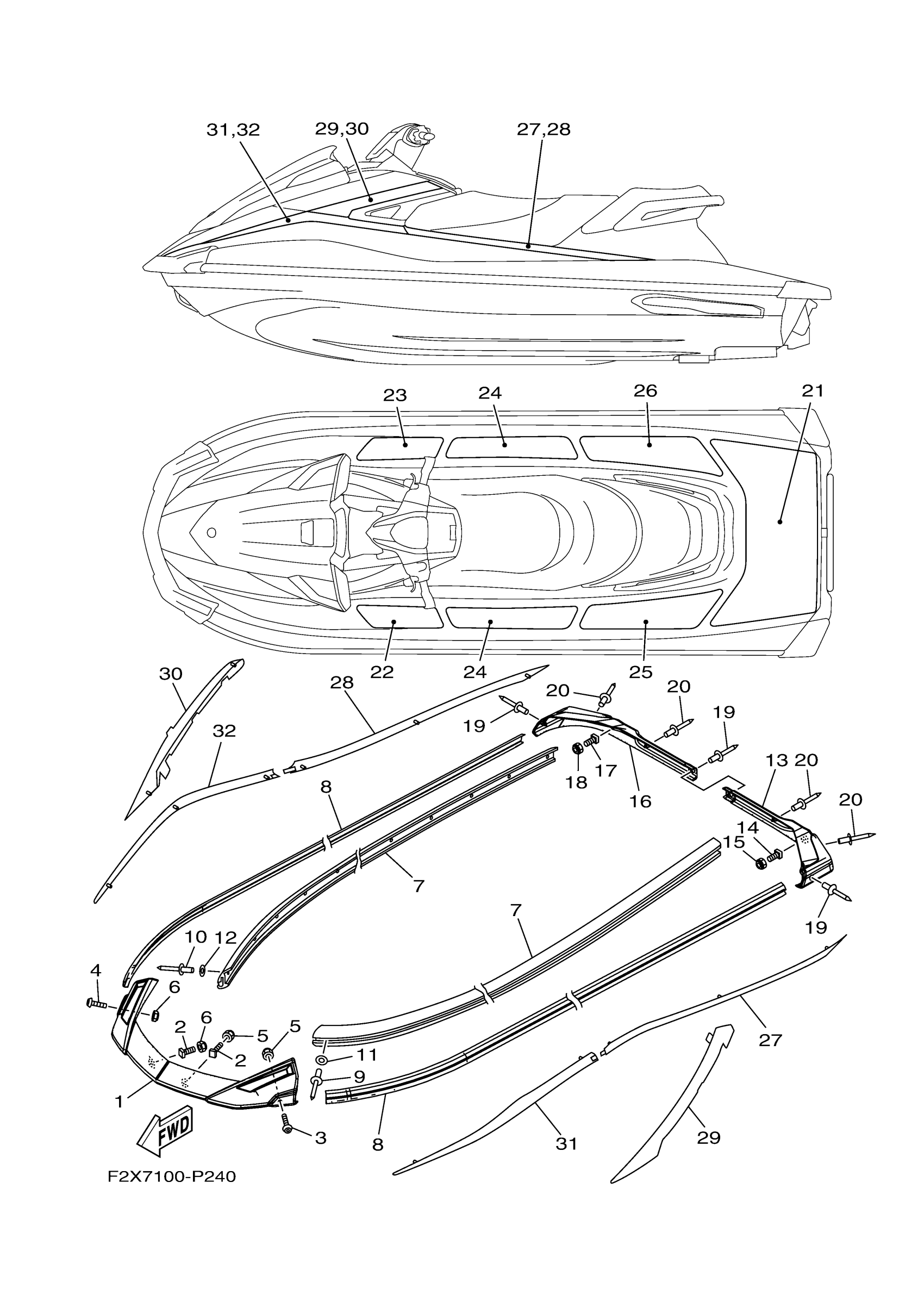

Yamaha VX1050CR (VX) F4G7 2016 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW (YB)

F2X-U2511-10-00

$48.05

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

4

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

5

NUT, LOCK

F2N-U142L-00-00

$1.43

6

NUT, LOCK

F2N-U142L-00-00

$1.43

7

GUNWALE, SIDE (YB)

F2X-U2512-10-00

$44.10

8

INNER,GUNWALE

F2X-U2519-50-00

$30.87

9

RIVET, BLIND

90267-489U8-00

$1.37

10

RIVET, BLIND

90267-489U8-00

$1.37

11

WASHER

9299R-05200-00

$4.60

12

WASHER

9299R-05200-00

$4.60

13

GUNWALE, STERN 1 (YB)

F2X-U251D-10-00

$18.37

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.43

16

GUNWALE, STERN 2 (YB)

F2X-U251E-10-00

$18.37

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.43

19

RIVET, BLIND

90267-48825-00

$2.16

20

RIVET, BLIND

90267-48825-00

$2.16

21

MAT, UPPER

F2X-U3581-10-00

$320.57

22

MAT, STEP 1

F2X-U351H-10-00

$19.10

23

MAT, STEP 2

F2X-U351J-10-00

$19.10

24

MAT, STEP 3

F2X-U351K-10-00

$17.63

25

MAT, STEP 4

F2X-U351M-10-00

$24.99

26

MAT, STEP 5

F2X-U351N-10-00

$24.99

27

ORNAMENT, STERN LH

F2X-U89A8-31-00

$38.22

28

ORNAMENT, STERN RH

F2X-U89A9-31-00

$38.22

29

ORNAMENT, MIDDLE LH

F2X-U89AA-31-00

$22.04

30

ORNAMENT, MIDDLE RH

F2X-U89AB-31-00

$22.04

31

ORNAMENT, BOW LH

F2X-U89AC-31-00

$30.87

32

ORNAMENT, BOW RH

F2X-U89AD-31-00

$38.22
