2016 Yamaha VX (VX1050CR) Graphics Diagram

← All diagrams

Find the part on the Graphics diagram for your 2016 Yamaha VX (VX1050CR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

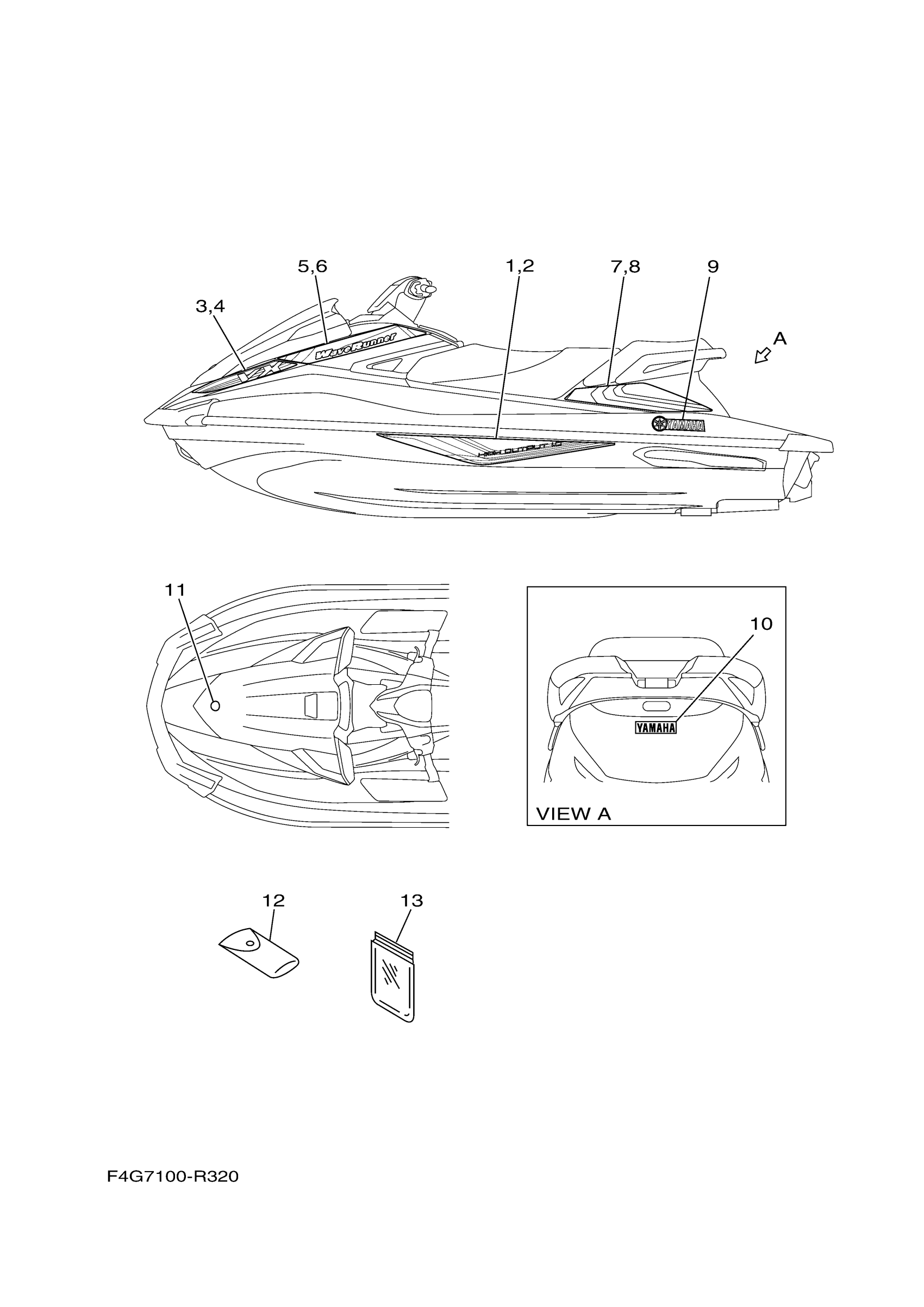

2016 Yamaha VX (VX1050CR) Graphics Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC 1 LH

F4G-U417B-40-00

1

$20.75

In stock

2

GRAPHIC 2 RH

F4G-U417C-40-00

1

$21.52

In stock

3

GRAPHIC 3 LH

F4G-U417D-40-00

1

$16.14

In stock

4

GRAPHIC 4 RH

F4G-U417E-40-00

1

$19.22

In stock

5

GRAPHIC 5 LH

F4G-U417F-40-00

1

$22.29

In stock

6

GRAPHIC 6 RH

F4G-U417G-40-00

1

$19.22

In stock

7

GRAPHIC 7 LH

F4G-U417H-40-00

1

$16.14

In stock

8

GRAPHIC 8 RH

F4G-U417J-40-00

1

$16.14

In stock

9

EMBLEM, YAMAHA

F2N-U411C-00-00

1

$51.81

In stock

10

EMBLEM, YAMAHA

F1B-U411C-02-00

1

$19.98

In stock

11

EMBLEM, TUNING FORK

F2S-6411H-00-00

1

$56.91

In stock

12

TOOL SET

F1B-65986-13-00

1

$47.21

In stock

13

BAG, VINYL

EU0-65901-03-00

1

$14.49

In stock
