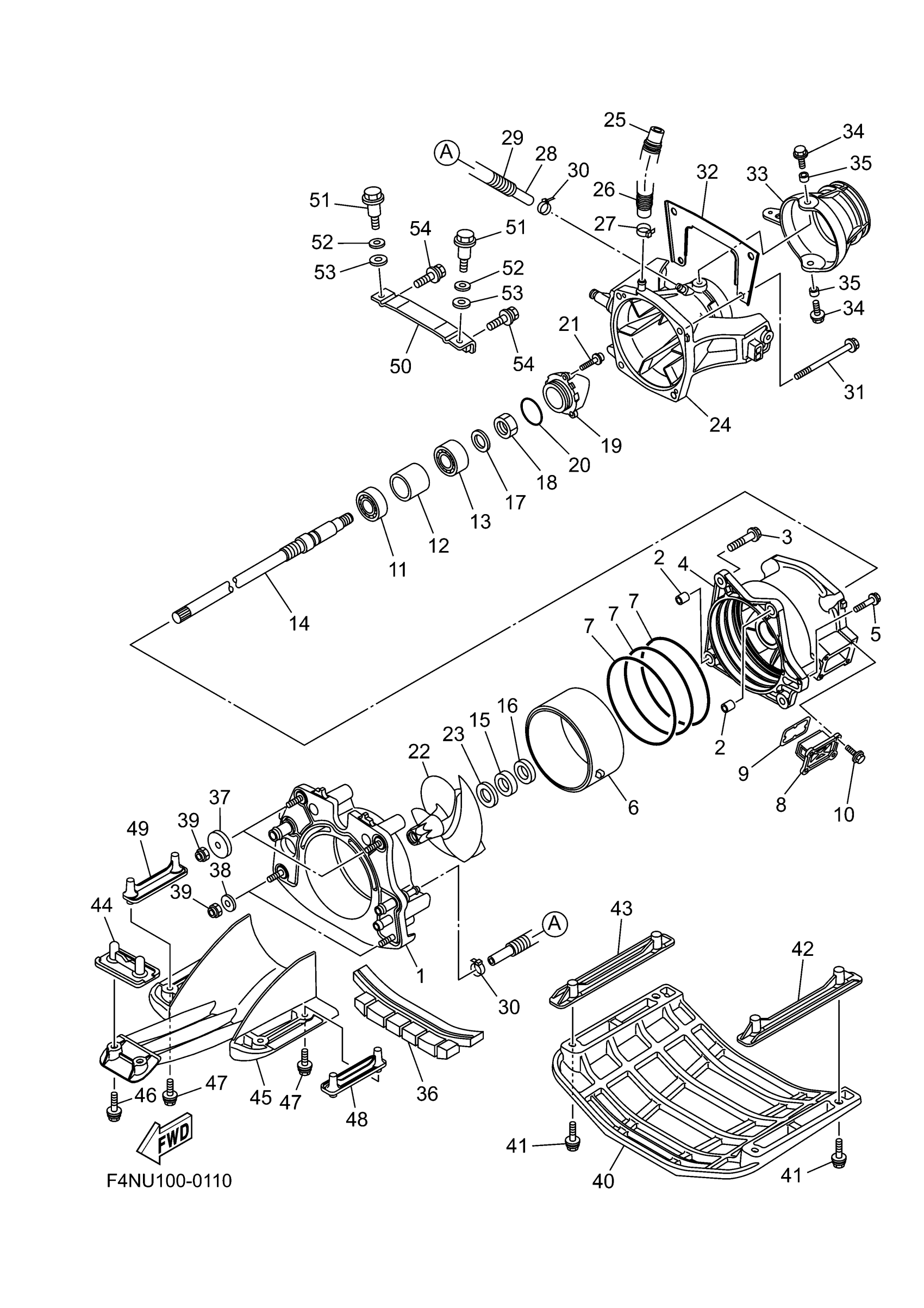

Yamaha VX1050CB (VX CRUISER) F4NU 2025 JET UNIT 1 Diagram
#
1
PLATE, TRANSOM
6CS-G5831-20-00
Unavailable
2
PIN, DOWEL(4JT)
99590-14016-00
$4.24
3
BOLT, WITH WASHER
90119-10811-00
Unavailable
4
HSG.,IMPEL
6EY-R1312-11-00
Unavailable
5
BOLT, WITH WASHER
90119-06894-00
Unavailable
6
SLEEVE, IMPELLER
6HH-R1337-00-00
Unavailable
7
O-RING
93211-65801-00
Unavailable
8
FILTER
6GN-G6882-00-00
Unavailable
9
. O-RING
66V-42414-00-00
Unavailable
10
BOLT,WITH WASHER
90119-06890-00
Unavailable
11
BEARING
93306-206Y7-00
Unavailable
12
SPACER 1
6CS-G5538-00-00
Unavailable
13
BEARING
93306-355Y0-00
Unavailable
14
SHAFT, DRIVE
6JS-G5511-00-00
Unavailable
15
OIL SEAL
93101-28M66-00
Unavailable
16
OIL SEAL
93101-28002-00
Unavailable
17
WASHER
92990-20600-00
Unavailable
18
NUT
95312-20700-00
Unavailable
19
CAP
6AN-R1326-00-00
Unavailable
20
O-RING
93210-54010-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06823-00
Unavailable
22
IMPELLER
6JS-R1321-00-00
Unavailable
23
SPACER
6EY-R1348-00-00
Unavailable
24
NOZZLE
6JS-R1318-00-00
Unavailable
25
HOSE 1
6CN-U72M2-00-00
Unavailable
26
HOSE (L175)
90446-24M46-00
Unavailable
27
BAND, HOSE 18
90601-118UF-00
Unavailable
28
HOSE (L355)
90445-14807-00
Unavailable
29
HOSE (L320)
90446-20MF5-00
Unavailable
30
CLAMP
90465-10098-00
Unavailable
31
BOLT, WITH WASHER
90119-10811-00
Unavailable
32
BRACKET
6EY-R1959-00-00
Unavailable
33
NOZZLE, DEFLECTOR
6EX-R1313-00-00
Unavailable
34
BOLT, WITH WASHER
90119-08841-00
Unavailable
35
COLLAR(6R7)
90387-08M06-00
Unavailable
36
SPACER
F2X-U72C0-00-00
Unavailable
37
WASHER
F1S-U725E-01-00
Unavailable
38
WASHER, PLATE
90201-10801-00
Unavailable
39
NUT, NYLON
9572R-10300-00
Unavailable
40
PLATE 2
F4N-U273B-00-00
Unavailable
41
BOLT
F4L-U3222-01-00
Unavailable
42
BRACKET 2
F2X-U8572-00-00
Unavailable
43
BRACKET 2
F2X-U8572-00-00
Unavailable
44
BRACKET, 3
F2S-U8577-00-00
Unavailable
45
SCREEN, INTAKE
6EX-R1333-00-00
Unavailable
46
BOLT, WITH WASHER
90119-08829-00
Unavailable
47
BOLT, WITH WASHER
90119-08844-00
Unavailable
48
BRACKET 1
F3P-U8571-00-00
Unavailable
49
BRACKET 1
F3P-U8571-00-00
Unavailable
50
BRACKET
F2C-U7557-01-00
Unavailable
51
BOLT
90109-08043-00
Unavailable
52
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
53
GASKET
90430-12002-00
Unavailable
54
BOLT, WITH WASHER
90119-08800-00
Unavailable
