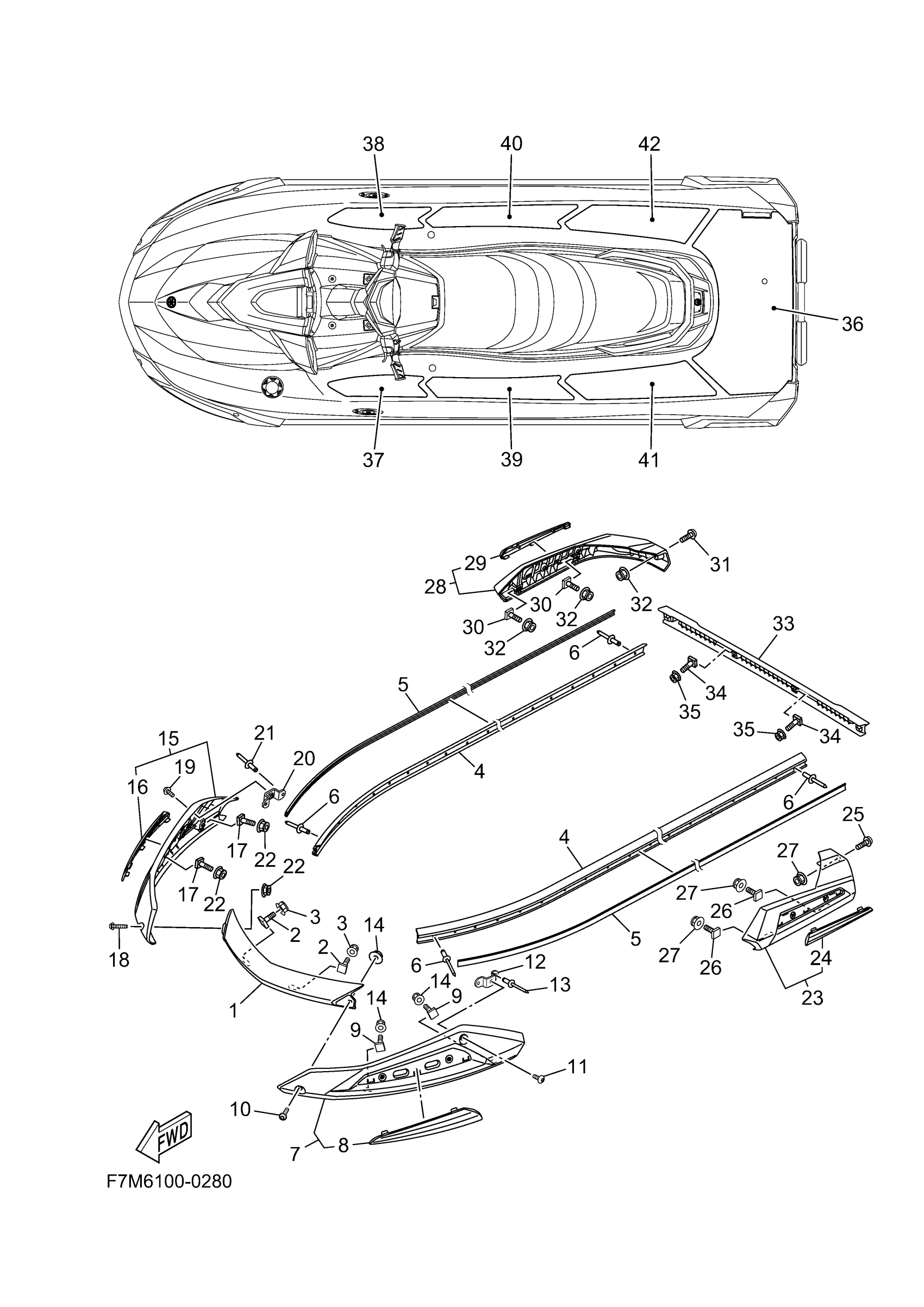

Yamaha VX1050CB (VX CRUISER) F4NU 2025 GUNWALE MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4N-U2511-00-00

$24.25

1

GUNWALE, BOW

F4N-U2511-10-00

$24.39

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.43

4

GUNWALE, SIDE

F4N-U2512-00-00

$32.34

4

GUNWALE, SIDE

F4N-U2512-10-00

$31.57

5

INNER,GUNWALE

F4N-U2519-10-00

Unavailable

5

INNER,GUNWALE

F4N-U2519-80-00

$27.93

6

RIVET

F7K-U1454-00-00

$4.66

7

GUNWALE ASSY.

F6G-U2510-20-00

$47.04

7

GUNWALE ASSY.

F6G-U2510-A0-00

$48.51

8

GUNWALL INSIDE

F4N-U2514-J0-00

$15.43

8

. GUNWALL INSIDE

F4N-U2514-W0-00

$67.63

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

SCREW

F3X-U7823-12-00

$1.25

11

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

12

BRACKET

F3X-U4949-00-00

$2.66

13

RIVET, BLIND

90267-489U6-00

Unavailable

14

NUT, LOCK

F2N-U142L-00-00

$1.43

15

GUNWALE ASSY.

F6G-U2510-30-00

Unavailable

15

GUNWALE ASSY.

F6G-U2510-B0-00

$48.51

16

GUNWALL INSIDE

F4N-U2514-K0-00

Unavailable

16

. GUNWALL INSIDE

F4N-U2514-X0-00

$67.63

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

SCREW

F3X-U7823-12-00

$1.25

19

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

20

BRACKET

F3X-U4949-00-00

$2.66

21

RIVET, BLIND

90267-489U6-00

Unavailable

22

NUT, LOCK

F2N-U142L-00-00

$1.43

23

STERN GUNWALE COMP

F6G-U2504-20-00

Unavailable

23

STERN GUNWALE COMP.

F6G-U2504-C0-00

$39.77

24

INNER GUNWALE, AFT

F4N-U255C-J0-00

Unavailable

24

. INNER GUNWALE, AFT

F4N-U255C-W0-00

$18.37

25

SCREW

F4P-U7823-00-00

$1.43

26

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

27

NUT, LOCK

F2N-U142L-00-00

$1.43

28

STERN GUNWALE COMP

F6G-U2504-30-00

Unavailable

28

STERN GUNWALE COMP.

F6G-U2504-D0-00

$39.77

29

INNER GUNWALE, AFT

F4N-U255C-K0-00

Unavailable

29

. INNER GUNWALE, AFT

F4N-U255C-X0-00

$18.37

30

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

31

SCREW

F4P-U7823-00-00

$1.43

32

NUT, LOCK

F2N-U142L-00-00

$1.43

33

COVER, GUNWALE 1

F4P-U252C-02-00

Unavailable

33

COVER, GUNWALE 1

F4P-U252C-12-00

Unavailable

34

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

35

NUT, LOCK

F2N-U142L-00-00

$1.43

36

MAT, UPPER

F4N-U3581-00-00

$71.80

37

MAT, STEP 1

F4N-U351H-00-00

$12.49

38

MAT, STEP 2

F4N-U351J-00-00

$17.63

39

MAT, STEP 3

F4N-U351K-00-00

$15.43

40

MAT, STEP 4

F4N-U351M-00-00

$15.43

41

MAT, STEP 5

F4N-U351N-00-00

$23.51

42

MAT, STEP 6

F4N-U351P-00-00

$23.51
