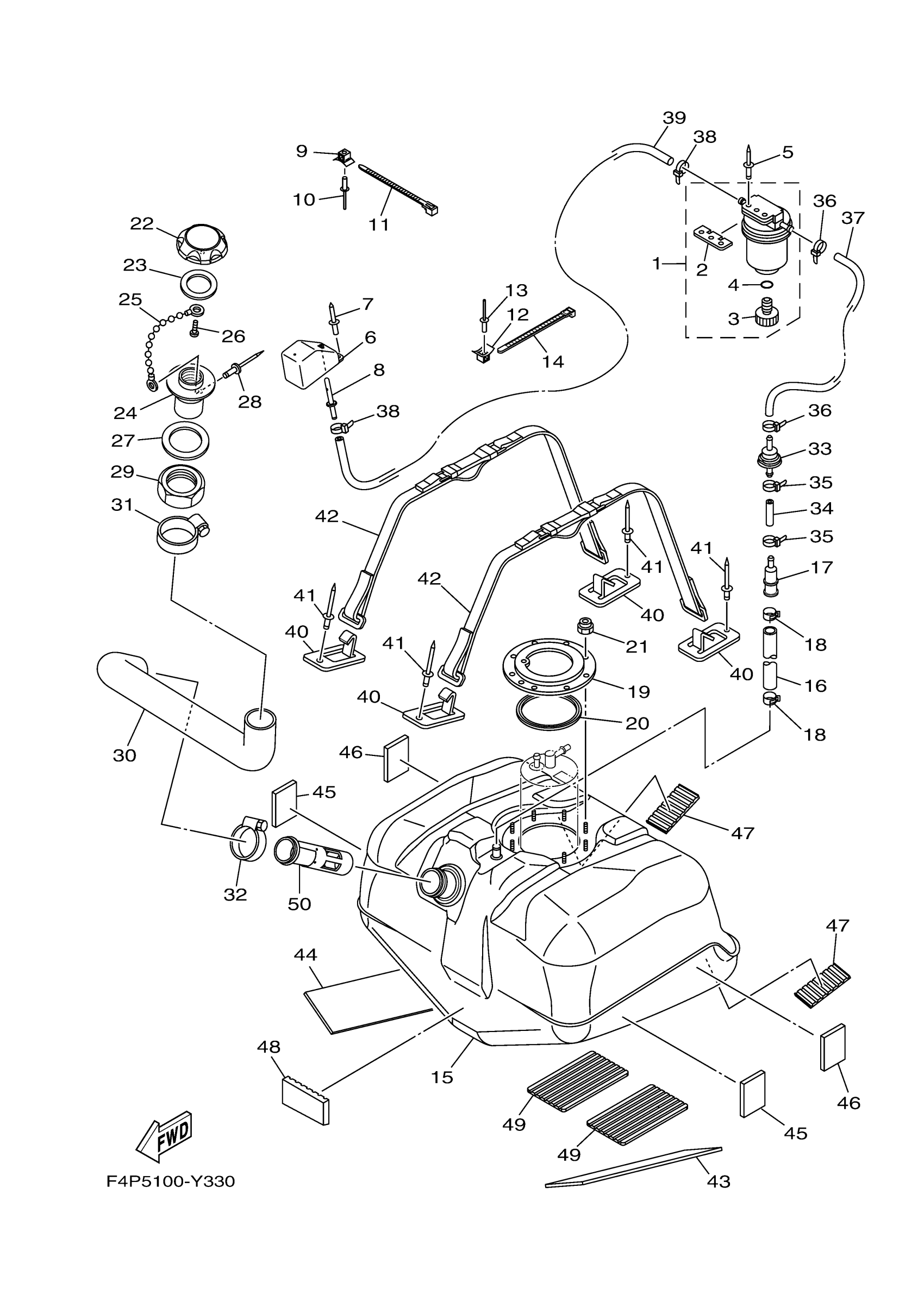

Yamaha VX1050CA (VX CRUISER WITH AUDIO_VX CRUISER) F4NM 2024 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

2

. PLATE, FILTER

EW2-62142-00-00

$44.99

3

. PLUG, DRAIN

70R-24543-00-00

$9.08

4

. O-RING

70R-24489-00-00

$5.00

5

RIVET, BLIND

90267-489U2-00

$1.43

6

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

7

RIVET, BLIND

90267-489U6-00

$1.37

8

PIPE, VENTILATION

F1G-62149-00-00

$11.35

9

BASE, CLAMP

F1W-U828M-00-00

$1.23

10

RIVET, BLIND

90267-48806-00

$2.00

11

CLAMP

90464-32801-00

$1.23

12

BASE, CLAMP

F1W-U828M-00-00

$1.23

13

RIVET, BLIND

90267-48806-00

$2.00

14

CLAMP

90464-32801-00

$1.23

15

TANK, FUEL

F4P-U7711-00-00

$254.53

16

HOSE, AIR VENT

F4P-U785G-00-00

$2.65

17

CONNECTOR

F4P-U8167-10-00

Unavailable

18

CLIP

90467-190A2-00

$3.18

19

RING

F1B-U7773-00-00

$20.81

20

PACKING, SEAL

F1B-67747-00-00

$16.66

21

NUT, NYLON

9572R-06300-00

$2.80

22

CAP, FUEL FILLER

F2N-U7831-10-00

$14.94

23

PACKING

GP7-U7832-01-00

$5.35

24

SOCKET

GP7-U7833-11-00

$10.75

25

CHAIN BALL

GP7-U7835-00-00

$4.51

26

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

27

PACKING FUEL FILLER

GP7-U7834-00-00

$11.65

28

RIVET, BLIND

90267-329UR-00

$1.15

29

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

30

HOSE

F4P-U7844-02-00

$59.08

31

BAND, HOSE 55

90601-155U4-00

$5.87

32

BAND, HOSE 55

90601-155U4-00

$5.87

33

CHECK VALVE

F3Y-U7767-00-00

$22.97

34

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

35

CLAMP

90465-10098-00

$1.68

36

CLAMP

90465-10098-00

$1.68

37

HOSE, AIR VENT

F1K-U785G-01-00

Unavailable

38

CLAMP

90465-10098-00

$1.68

39

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

40

HOOK A

F1K-U5772-04-00

$6.29

41

RIVET (EU0)

90267-48938-00

$5.00

42

BELT, TANK 1

F2S-67743-01-00

$53.70

43

MAT 1

F2S-U759B-00-00

$3.86

44

MAT 1

F2S-U759B-00-00

$3.86

45

MAT 2

F1W-U759C-01-00

$2.50

46

MAT 2

F1W-U759C-01-00

$2.50

47

MAT 2

F1K-U759C-00-00

$1.72

48

MAT 2

F1K-U759C-00-00

$1.72

49

PAD, BATTERY

F1S-U8221-00-00

$2.75

50

TUBE

F4L-U773D-00-00

$27.26
