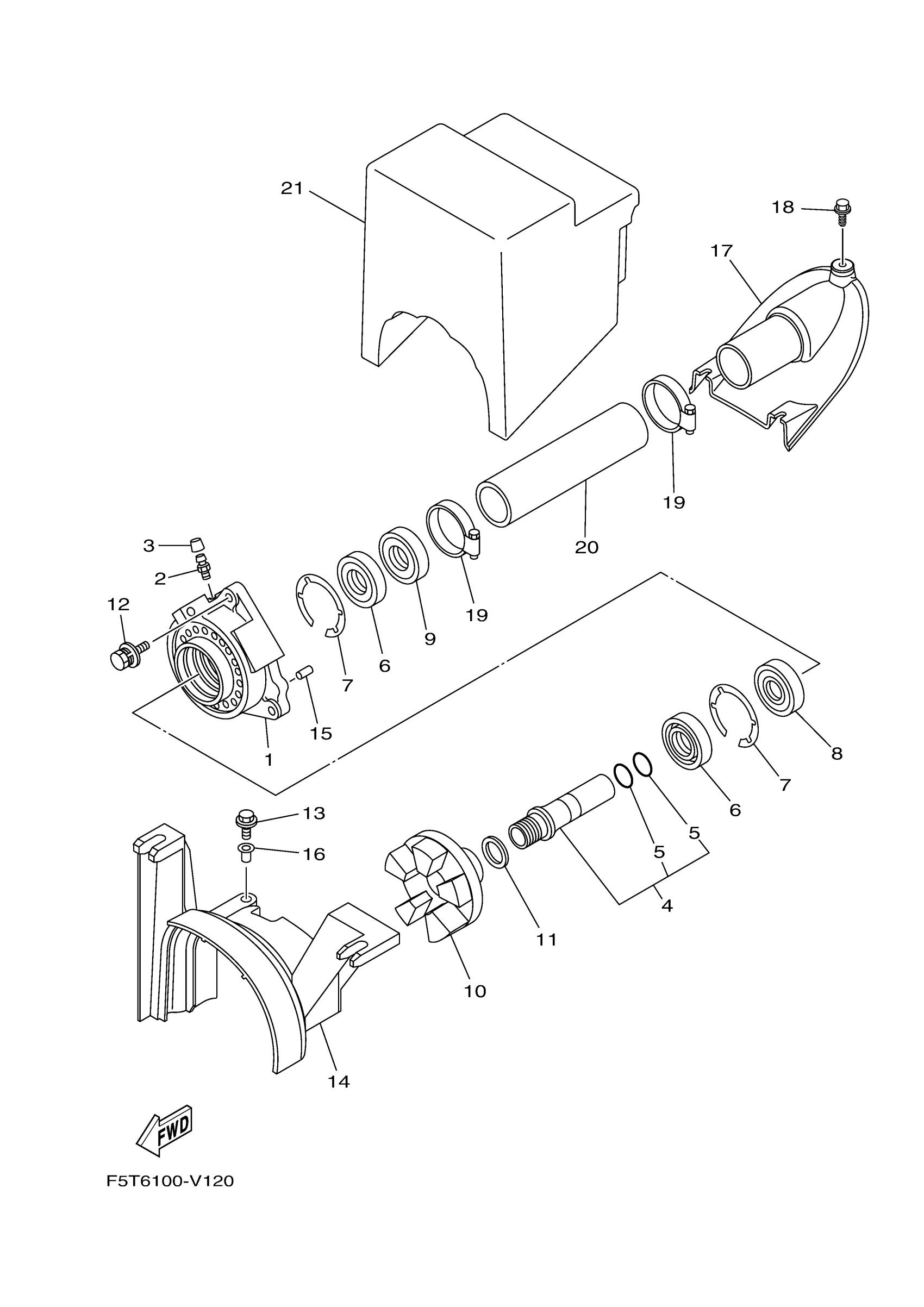

Yamaha VX1050BV (VX CRUISER VX1050BV VX DELUXE) F5T7 2020 JET UNIT 2 Diagram

Description

Price

HOUSING, BEARING

61X-G5332-00-00

$134.54

NIPPLE, GREASE

93700-06M03-00

$7.40

CAP, GREASE NIPPLE

663-45119-01-00

$1.83

SHAFT, COUPLER

60E-XR132-01-00

$133.56

. O-RING

93210-19812-00

$4.46

OIL SEAL(62T)

93101-25M55-00

$24.36

CIRCLIP(26H)

99009-52500-00

$10.02

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$33.83

. OIL SEAL

93102-25009-00

$29.63

FLANGE, COUPLING 1

6EY-G5593-00-00

$26.74

WASHER, PLATE

90201-27008-00

Unavailable

BOLT

F4G-U1369-00-00

$2.95

BOLT, WITH WASHER

90119-06892-00

$3.79

COVER

6EY-R1381-00-00

$6.21

PIN, DOWEL (614)

93606-12019-00

$3.05

COLLAR

90387-06289-00

Unavailable

JOINT, PIPE

F2N-U883E-00-00

$8.61

BOLT

90109-06832-00

$2.44

BAND, HOSE 55

90601-155U4-00

$5.87

PIPE 1

F2N-U883B-00-00

$16.50

PAD

F1K-U892D-00-00

$23.47
