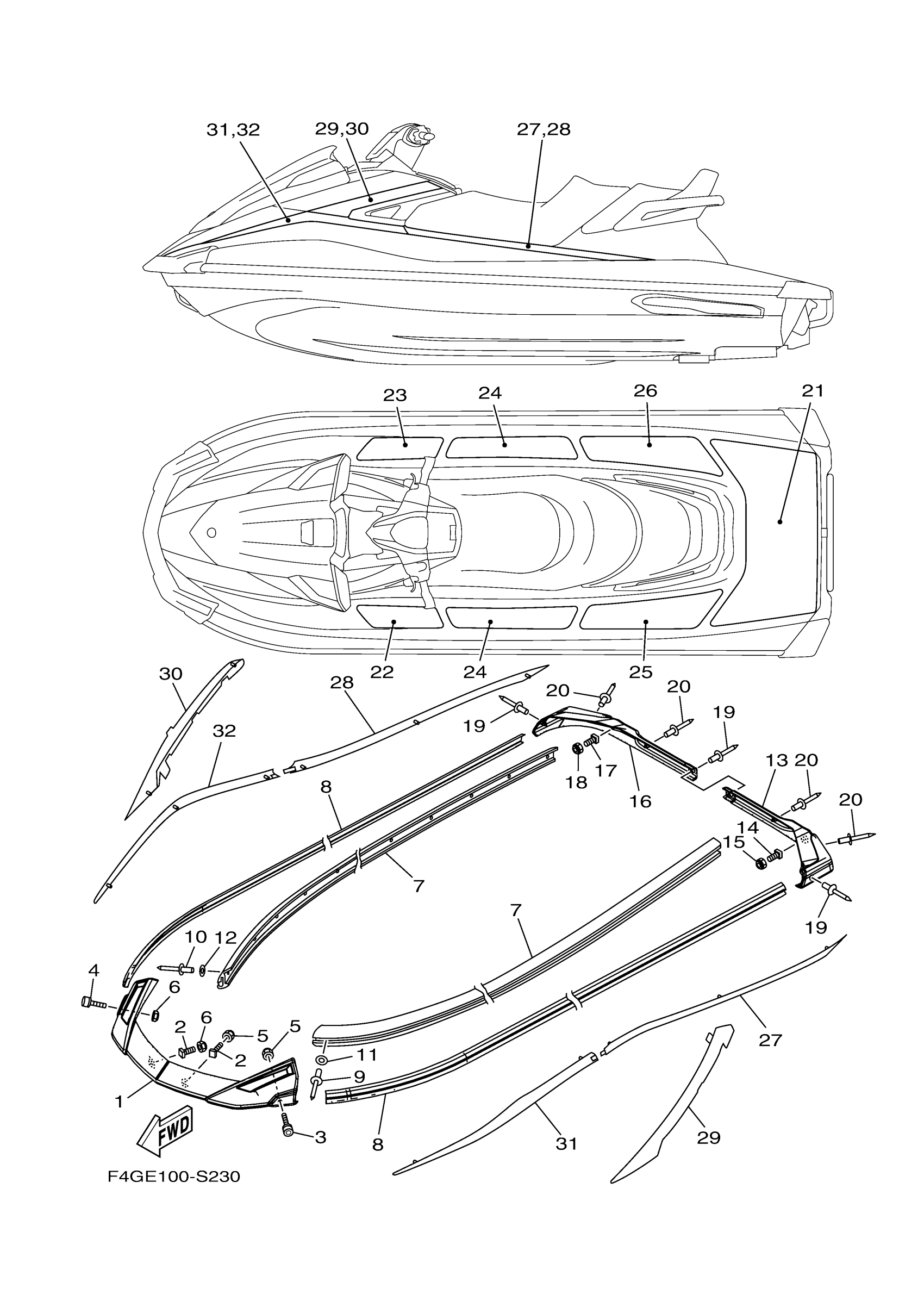

Yamaha VX1050BV (VX CRUISER VX1050BV VX DELUXE) F5T7 2020 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW (YB)

F2X-U2511-10-00

$48.05

1

GUNWALE, BOW (PURW)

F2X-U2511-20-00

$38.05

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$3.21

4

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$3.21

5

NUT, LOCK

F2N-U142L-00-00

$1.00

6

NUT, LOCK

F2N-U142L-00-00

$1.00

7

GUNWALE, SIDE (YB)

F2X-U2512-10-00

$44.18

7

GUNWALE, SIDE (PURW)

F2X-U2512-20-00

$54.25

8

INNER,GUNWALE (RED)

F2X-U2519-40-00

$23.87

8

INNER,GUNWALE

F2X-U2519-80-00

$26.35

9

RIVET, BLIND

90267-489U8-00

$1.37

10

RIVET, BLIND

90267-489U8-00

$1.37

11

WASHER

9299R-05200-00

$4.60

12

WASHER

9299R-05200-00

$4.60

13

GUNWALE, STERN 1 (YB)

F2X-U251D-10-00

$18.60

13

GUNWALE, STERN 1 (PURW)

F2X-U251D-20-00

$23.87

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE, STERN 2 (YB)

F2X-U251E-10-00

$18.60

16

GUNWALE, STERN 2 (PURW)

F2X-U251E-20-00

$23.87

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

RIVET, BLIND

90267-48825-00

$2.16

20

RIVET, BLIND

90267-48825-00

$2.16

21

MAT, UPPER

F2X-U3581-01-00

$75.96

21

MAT, UPPER

F2X-U3581-40-00

$74.61

22

MAT, STEP 1

F2X-U351H-00-00

$20.88

22

MAT, STEP 1

F2X-U351H-40-00

$22.37

23

MAT, STEP 2

F2X-U351J-00-00

$20.15

23

MAT, STEP 2

F2X-U351J-40-00

$21.63

24

MAT, STEP 3

F2X-U351K-00-00

$17.22

24

MAT, STEP 3

F2X-U351K-40-00

$17.22

25

MAT, STEP 4

F2X-U351M-00-00

$25.83

25

MAT, STEP 4

F2X-U351M-40-00

$26.10

26

MAT, STEP 5

F2X-U351N-00-00

$25.83

26

MAT, STEP 5

F2X-U351N-40-00

$26.10

27

ORNAMENT, STERN LH (YB)

F2X-U89A8-00-00

$71.75

27

ORNAMENT, STERN LH (BLUE)

F2X-U89A8-60-00

$29.09

28

ORNAMENT, STERN RH (YB)

F2X-U89A9-00-00

$27.60

28

ORNAMENT, STERN RH (BLUE)

F2X-U89A9-60-00

$29.09

29

ORNAMENT, MIDDLE LH (YB)

F2X-U89AA-00-00

$12.67

29

ORNAMENT, MIDDLE LH (BLUE)

F2X-U89AA-60-00

$17.90

30

ORNAMENT, MIDDLE RH (YB)

F2X-U89AB-00-00

$12.40

30

ORNAMENT, MIDDLE RH (BLUE)

F2X-U89AB-60-00

$17.90

31

ORNAMENT, BOW LH (YB)

F2X-U89AC-00-00

$25.36

31

ORNAMENT, BOW LH (BLUE)

F2X-U89AC-60-00

$26.85

32

ORNAMENT, BOW RH (YB)

F2X-U89AD-00-00

$44.98

32

ORNAMENT, BOW RH (BLUE)

F2X-U89AD-60-00

$28.34
