- VX1050BU (VX CRUISER VX1050BU VX DELUXE) F5T2 2019
GUNWALE & MAT

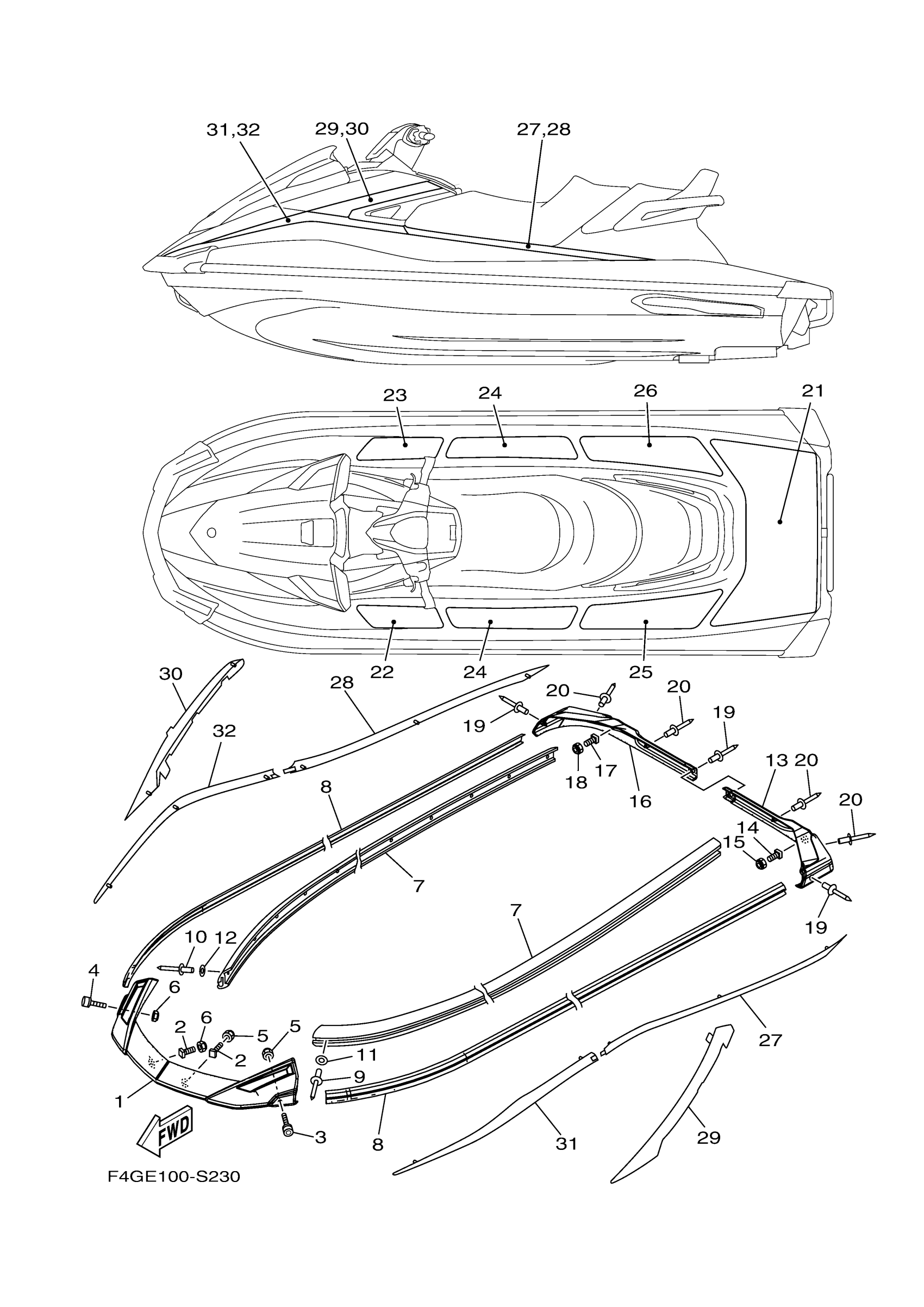

Yamaha VX1050BU (VX CRUISER VX1050BU VX DELUXE) F5T2 2019 GUNWALE & MAT Diagram
#
1
GUNWALE, BOW (DGS1)
F2X-U2511-00-00
Unavailable
1
GUNWALE, BOW (YB)
F2X-U2511-10-00
Unavailable
2
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
3
BOLT, HEXAGON SOCKET HEAD
90110-06191-00
Unavailable
4
BOLT, HEXAGON SOCKET HEAD
90110-06191-00
Unavailable
5
NUT, LOCK
F2N-U142L-00-00
Unavailable
6
NUT, LOCK
F2N-U142L-00-00
Unavailable
7
GUNWALE, SIDE (DGS1)
F2X-U2512-00-00
Unavailable
7
GUNWALE, SIDE (YB)
F2X-U2512-10-00
Unavailable
8
INNER,GUNWALE (WHITE)
F2X-U2519-60-00
Unavailable
8
INNER,GUNWALE (CYAN)
F2X-U2519-C0-00
Unavailable
9
RIVET, BLIND
90267-489U8-00
Unavailable
10
RIVET, BLIND
90267-489U8-00
Unavailable
11
WASHER
9299R-05200-00
Unavailable
12
WASHER
9299R-05200-00
Unavailable
13
GUNWALE, STERN 1 (DGS1)
F2X-U251D-00-00
Unavailable
13
GUNWALE, STERN 1 (YB)
F2X-U251D-10-00
Unavailable
14
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
15
NUT, LOCK
F2N-U142L-00-00
Unavailable
16
GUNWALE, STERN 2 (DGS1)
F2X-U251E-00-00
Unavailable
16
GUNWALE, STERN 2 (YB)
F2X-U251E-10-00
Unavailable
17
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
18
NUT, LOCK
F2N-U142L-00-00
Unavailable
19
RIVET, BLIND
90267-48825-00
Unavailable
20
RIVET, BLIND
90267-48825-00
Unavailable
21
MAT, UPPER
F2X-U3581-30-00
Unavailable
21
MAT, UPPER
F2X-U3581-40-00
Unavailable
22
MAT, STEP 1
F2X-U351H-30-00
Unavailable
22
MAT, STEP 1
F2X-U351H-40-00
Unavailable
23
MAT, STEP 2
F2X-U351J-30-00
Unavailable
23
MAT, STEP 2
F2X-U351J-40-00
Unavailable
24
MAT, STEP 3
F2X-U351K-30-00
Unavailable
24
MAT, STEP 3
F2X-U351K-40-00
Unavailable
25
MAT, STEP 4
F2X-U351M-30-00
Unavailable
25
MAT, STEP 4
F2X-U351M-40-00
Unavailable
26
MAT, STEP 5
F2X-U351N-30-00
Unavailable
26
MAT, STEP 5
F2X-U351N-40-00
Unavailable
27
ORNAMENT, STERN LH (YB)
F2X-U89A8-00-00
Unavailable
27
ORNAMENT, STERN LH (DGS1)
F2X-U89A8-10-00
Unavailable
28
ORNAMENT, STERN RH (YB)
F2X-U89A9-00-00
Unavailable
28
ORNAMENT, STERN RH (DGS1)
F2X-U89A9-10-00
Unavailable
29
ORNAMENT, MIDDLE LH (YB)
F2X-U89AA-00-00
Unavailable
29
ORNAMENT, MIDDLE LH (DGS1)
F2X-U89AA-10-00
Unavailable
30
ORNAMENT, MIDDLE RH (YB)
F2X-U89AB-00-00
Unavailable
30
ORNAMENT, MIDDLE RH (DGS1)
F2X-U89AB-10-00
Unavailable
31
ORNAMENT, BOW LH (YB)
F2X-U89AC-00-00
Unavailable
31
ORNAMENT, BOW LH (DGS1)
F2X-U89AC-10-00
Unavailable
32
ORNAMENT, BOW RH (YB)
F2X-U89AD-00-00
Unavailable
32
ORNAMENT, BOW RH (DGS1)
F2X-U89AD-10-00
Unavailable
