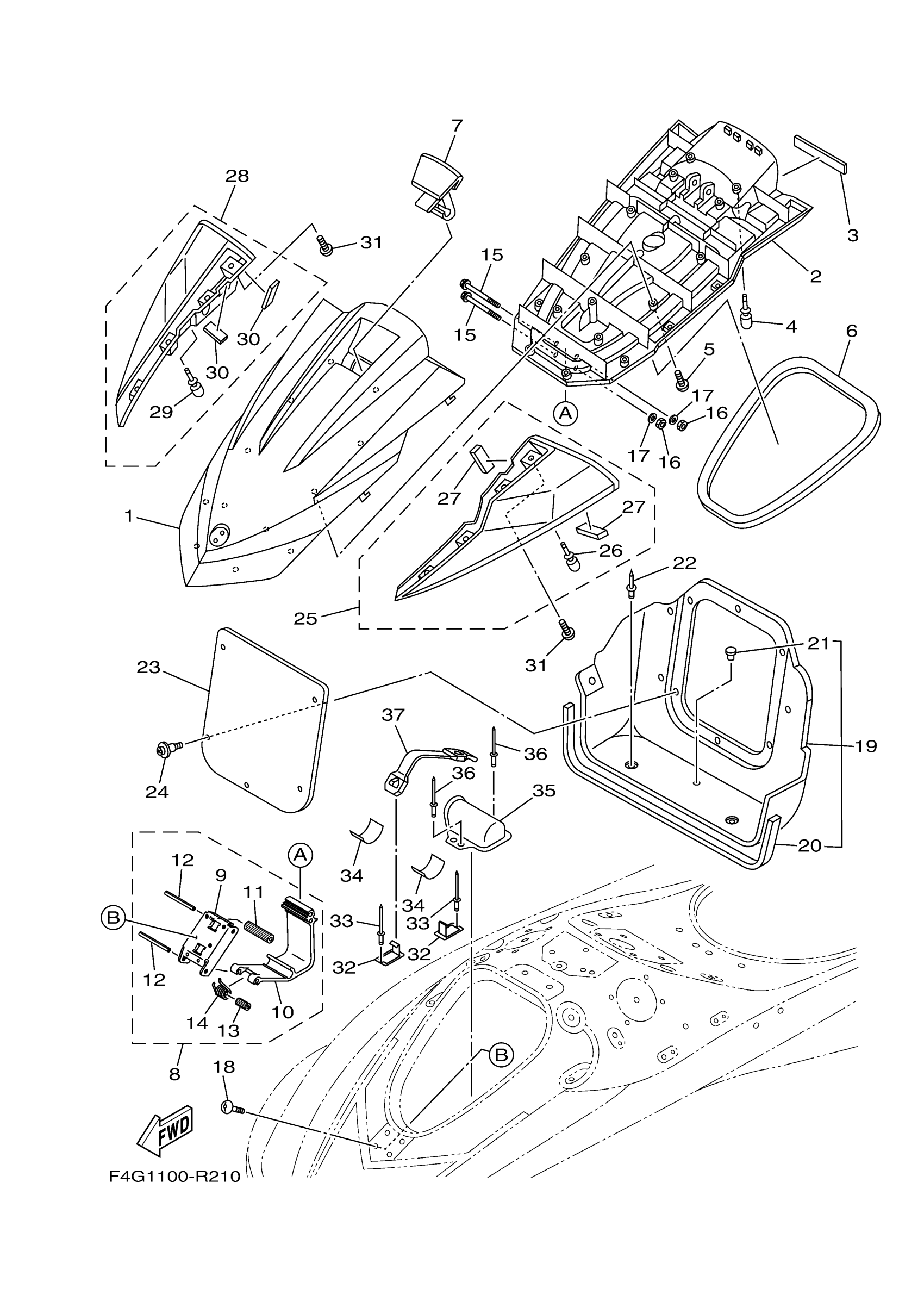

Yamaha VX1050BU (VX CRUISER VX1050BU VX DELUXE) F5T2 2019 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (VPBM6)

F2X-U517B-10-P2

$196.95

1

LID, ENGINE ROOM (MDNM7)

F2X-U517B-10-P3

$309.08

2

INNER, ENGINE HATCH

F2X-U519G-10-00

$226.00

3

DAMPER 1

F2C-U515D-00-00

$1.87

4

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

5

SCREW

F2S-U13C1-00-00

$2.36

6

PACKING 1

F2N-U2663-01-00

$44.50

7

LOCK, LID

F2X-U517C-01-00

$7.18

8

HINGE ASSY.

F2X-U515A-01-00

$318.87

9

. PLATE, HINGE LID

F1K-U518E-04-00

$42.41

10

. HINGE, LID

F1K-U517D-05-00

$315.14

11

. ROLLER, DETENT

F2X-U135C-00-00

$10.59

12

PIN, HINGE

F1K-U517R-01-00

$3.23

13

. SPACER 1

F1K-U471E-03-00

$13.62

14

. SPRING, TORSION

F1K-U283B-02-00

$5.67

15

BOLT, FLANGE

90105-06826-00

$3.02

16

NUT, NYLON

9572R-06300-00

$2.80

17

WASHER

9299R-06200-00

$0.43

18

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

19

LOCKER,BOW

F2X-U475B-00-00

$157.56

20

PACKING 4

F2C-U266C-00-00

$7.35

21

. PLUG, BLIND

90605-502U1-00

$2.16

22

RIVET

90269-08801-00

$0.83

23

PLATE, LOKER BOW

F2S-U475F-00-00

$10.75

24

RIVET

90269-08801-00

$0.83

25

MIRROR ASSY. 1

F2X-U590D-30-00

$130.29

25

MIRROR ASSY. 1

F2X-U590D-70-00

$121.51

26

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

27

. PACKING 3

F1K-U266B-00-00

$1.15

28

MIRROR ASSY. 2

F2X-U590E-30-00

$119.29

28

MIRROR ASSY. 2

F2X-U590E-70-00

$121.51

29

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

30

. PACKING 3

F1K-U266B-00-00

$1.15

31

SCREW

F2X-U13C1-00-00

$1.63

32

HOOK A

F1K-U5772-04-00

$6.29

33

RIVET (EU0)

90267-48938-00

$5.00

34

MAT 2

F1K-U759C-00-00

$1.72

35

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

$4.39

36

RIVET, BLIND

90267-48802-00

$1.98

37

BAND 1

F2P-U828K-00-00

$5.87
