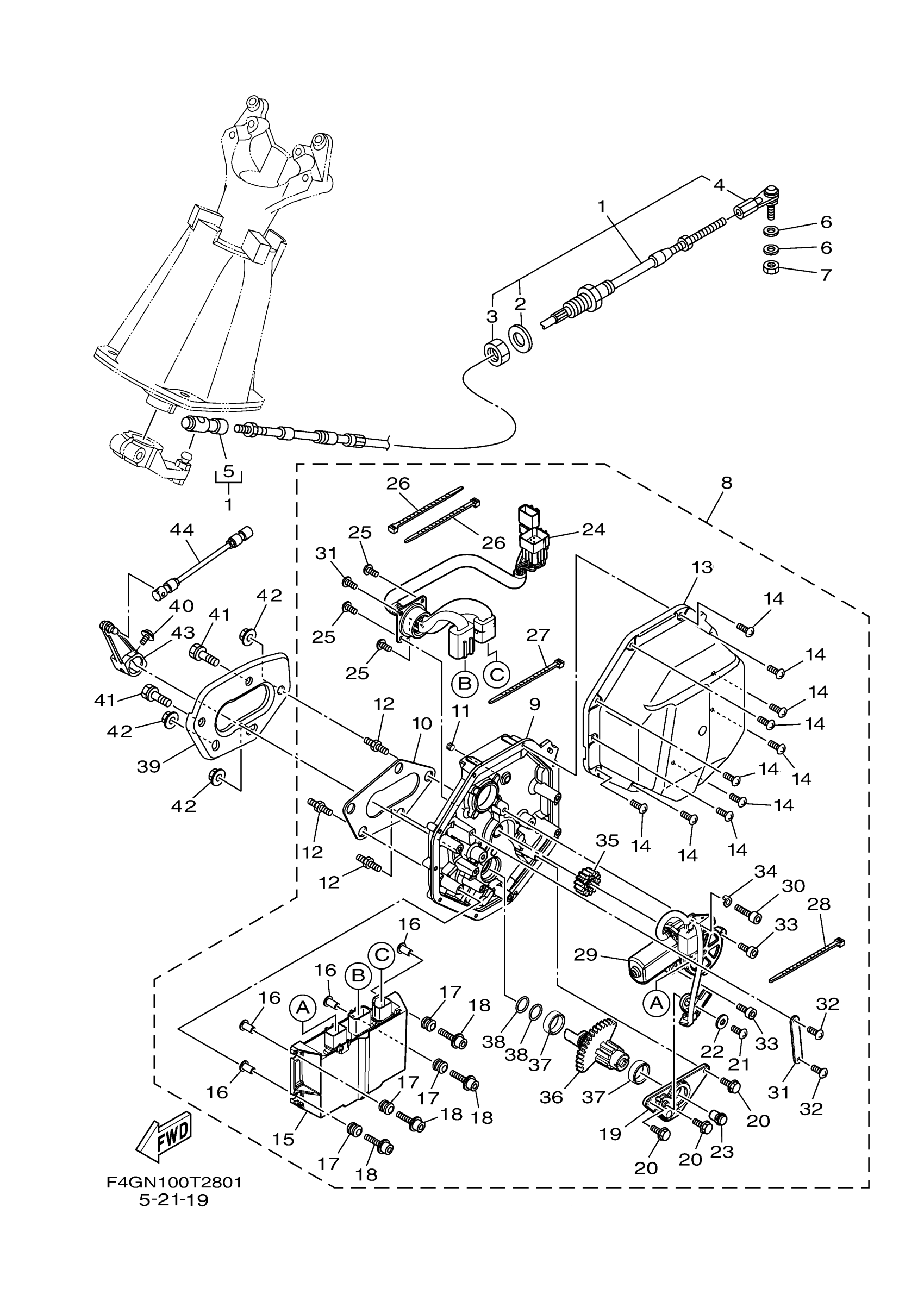

Yamaha VX1050BU (VX CRUISER VX1050BU VX DELUXE) F5T2 2019 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F2N-61481-02-00

Unavailable

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.01

8

Motor Assy

F4G-6140B-04-00

Unavailable

9

HOUSING

99999-04522-00

Unavailable

10

. SEAL

F3Y-63262-00-00

$16.99

11

. PLUG

F3J-613D0-00-00

$11.99

12

. BOLT, STUD

F3J-67369-00-00

$6.36

13

. COVER

F3Y-6143J-00-00

$52.99

14

. SCREW

F3Y-68198-00-00

$3.64

15

CONTROL UNIT

F4G-68197-02-00

$636.35

16

. COLLAR

90387-06119-00

$4.37

17

. DAMPER, INGITION COIL

6AO-82317-00-00

Unavailable

18

. BOLT

F3J-613B4-20-00

$4.55

19

. PLATE

F3Y-61256-00-00

$30.99

20

. BOLT, HEXAGON

F3Y-613B3-00-00

$4.55

21

. SCREW

F3J-68198-20-00

$3.64

22

. WASHER, PLAIN

F3J-613C3-10-00

$3.70

23

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

24

WIRE HARNESS ASSY.

F4G-68270-01-00

$336.35

25

. SCREW

F3J-86198-00-00

Unavailable

26

. CLAMP, WIRE

F3J-68273-00-00

$3.18

27

. CLAMP, WIRE

F3J-68273-00-00

$3.18

28

. CLAMP, WIRE

F3J-68273-00-00

$3.18

29

. MOTOR

F3Y-68352-00-00

$210.35

30

. BOLT

F3J-613B4-00-00

$4.55

31

. PLATE

F3Y-61348-00-00

$4.55

32

. SCREW

F3J-68198-20-00

$3.64

33

. BOLT

F3J-613B4-10-00

$2.19

34

. SPACER

F3J-61492-00-00

$7.27

35

. ,GEAR 1

F3Y-60211-00-00

$101.50

36

SHAFT, 1

F3Y-60221-10-00

$23.67

37

. BUSH

F3Y-61344-00-00

$3.70

38

O-RING

F4P-613A5-00-00

$3.64

39

PLATE

F3Y-U8285-00-00

$15.14

40

BOLT, WITH WASHER

90119-06894-00

$1.37

41

BOLT, WITH WASHER

90119-08852-00

$3.79

42

NUT, LOCK

F3Y-U142L-00-00

$2.52

43

SHIFT ARM ASSY

F3Y-6150F-00-00

$49.42

44

ROD ASSY 2

F3J-6150D-00-00

$38.52
