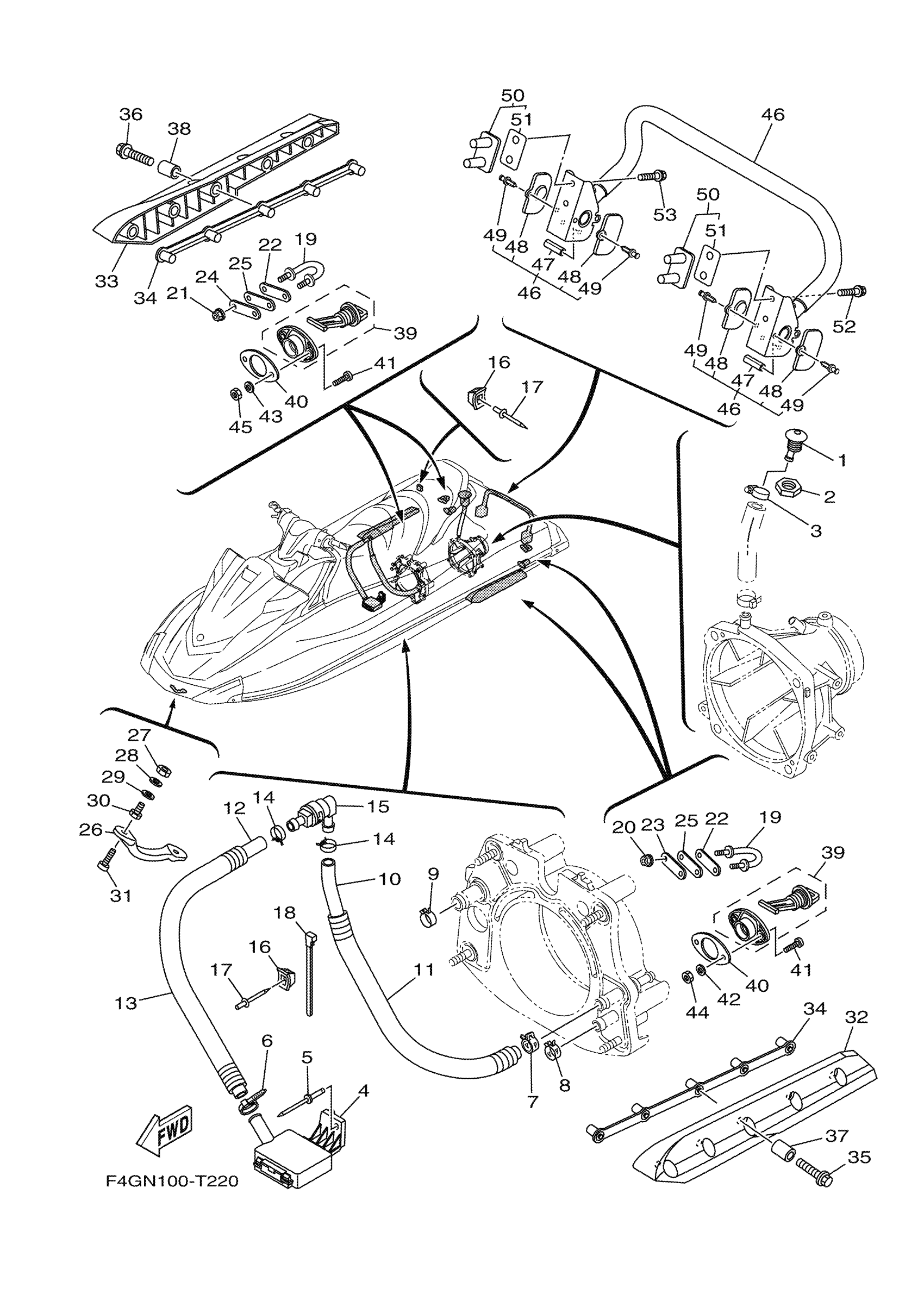

Yamaha VX1050BT (VX CRUISER VX1050BT VX DELUXE) F4GR 2018 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.87

2

NUT

EU0-61652-00-00

$11.77

3

BAND, HOSE 18

90601-118UF-00

$2.22

4

STRAINER, BILGE

F1B-U761D-02-00

$5.35

5

RIVET, BLIND

90267-489U8-00

$1.37

6

CLAMP

90465-10098-00

$2.24

7

CLIP

90467-21800-00

$3.02

8

CLIP

90467-200A0-00

$7.59

9

CLIP

90467-26800-00

$2.80

10

HOSE 2

6EY-U771G-00-00

$11.93

11

TUBE,2

6EY-U773E-00-00

$6.04

12

HOSE (L860)

90445-20804-00

$12.67

13

TUBE,2

6EX-U773E-00-00

$5.97

14

CLIP

90467-18804-00

$2.87

15

JOINT, HOSE

68N-5112T-00-00

$47.39

16

BASE, CLAMP

F1W-U828M-00-00

$1.29

17

RIVET, BLIND

90267-489U6-00

Unavailable

18

CLAMP

90464-32801-00

$1.29

19

STERN EYE

F2N-U1628-02-00

$5.17

20

NUT, NYLON (6J8)

95780-08300-00

$11.48

21

NUT, NYLON (6J8)

95780-08300-00

$11.48

22

PLATE A

GP7-U4953-10-00

$3.65

23

PLATE A

GP7-U4953-10-00

$3.65

24

PLATE A

GP7-U4953-10-00

$3.65

25

PACKING

F1B-U1653-03-00

Unavailable

26

BOW EYE 1

F1K-61624-00-00

$43.69

27

NUT.HEX.(COARS)

99780-12600-00

$2.80

28

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

29

WASHER

F0X-61637-00-00

$1.24

30

NUT

F0X-61652-01-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.02

32

STABILIZER LH

F1S-U883N-01-00

$32.82

33

STABILIZER RH

F1S-U883P-01-00

$32.82

34

BRACKET,STABILIZER

F1X-U883T-02-00

$43.27

35

BOLT,WASHER BASED

90105-088F9-00

$2.91

36

BOLT,WASHER BASED

90105-088F9-00

$2.91

37

SPACER

F2N-U8169-10-00

$1.23

38

SPACER

F2N-U8169-10-00

$1.23

39

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.91

40

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

41

SCREW, PAN HEAD

9788R-05025-00

$2.66

42

WASHER

9299R-05200-00

$4.60

43

WASHER

9299R-05200-00

$4.60

44

NUT, FLANGE

9572R-05300-00

$1.51

45

NUT, FLANGE

9572R-05300-00

$1.51

46

LADDER, STEP ASSY

F2X-U278A-00-00

$82.46

47

. SLEEVE 1

F1W-U771H-00-00

$24.39

48

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.43

49

. PIN

F2C-U1314-00-00

$2.58

50

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

51

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

52

BOLT, WITH WASHER

90119-08844-00

$1.37

53

BOLT, WITH WASHER

90119-08844-00

$1.37
