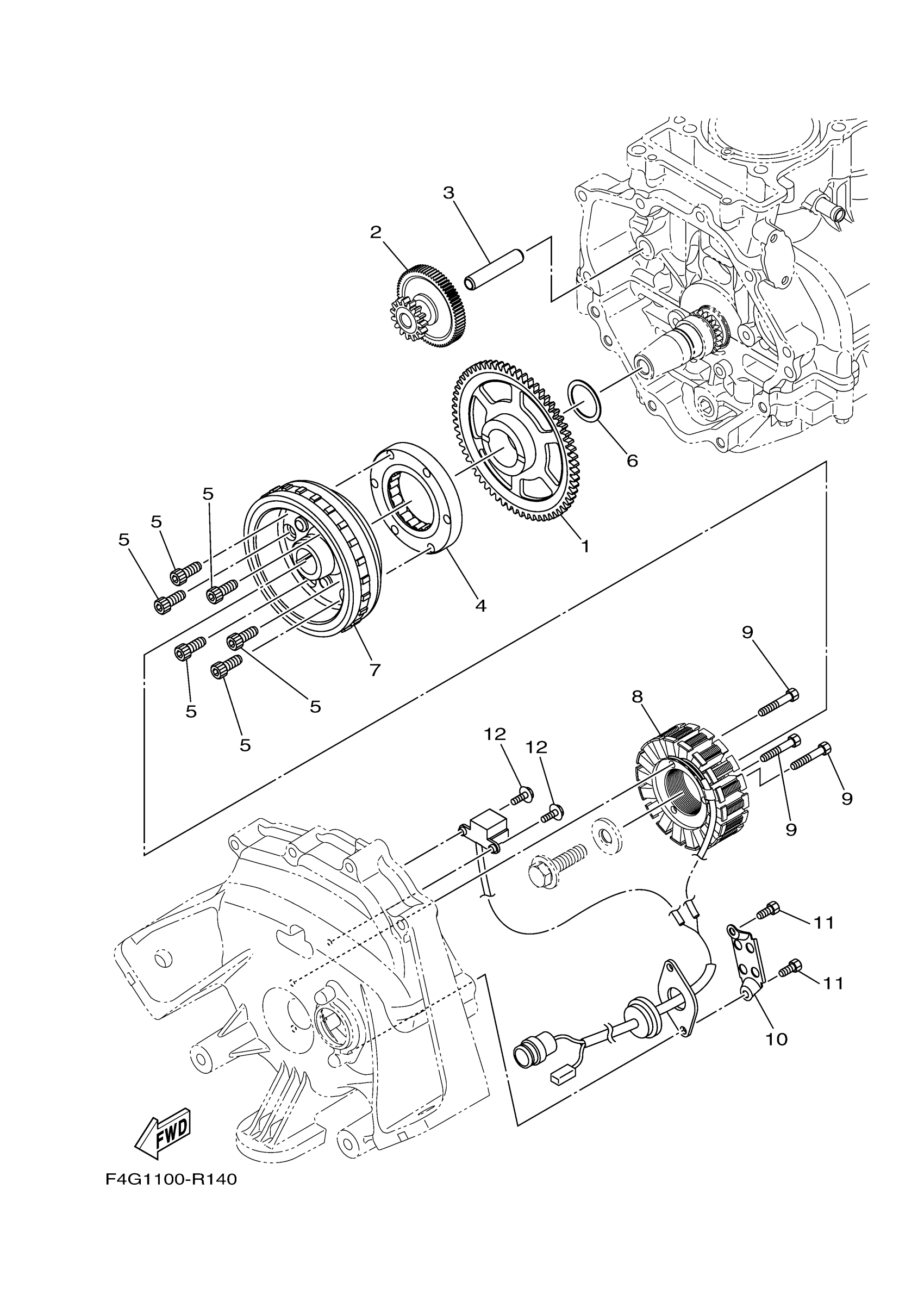

Yamaha VX1050BS (VX CRUISER VX1050BS VX DELUXE) F4GG 2017 GENERATOR Diagram

#

Description
Price

1

GEAR 3

8FA-15515-00-00

$139.30

2

GEAR, IDLER 1

2HC-15512-00-00

$97.17

3

SHAFT 1

8ES-15521-00-00

$6.29

4

STARTER ONE-WAY ASSY

6EY-15590-00-00

$124.23

5

BOLT, SOCKET

91317-08020-00

$2.19

6

WASHER, PLATE

90201-30013-00

$3.35

7

ROTOR ASSY

6EY-81450-01-00

$415.14

8

STATOR ASSY

6EY-81410-00-00

$366.65

9

BOLT,SOCKET

91317-06035-00

$3.27

10

CLAMP

60E-81328-00-00

$7.27

11

BOLT,SOCKET

91317-06014-00

$6.57

12

BOLT, WITH WASHER

97513-05514-00

$3.64
