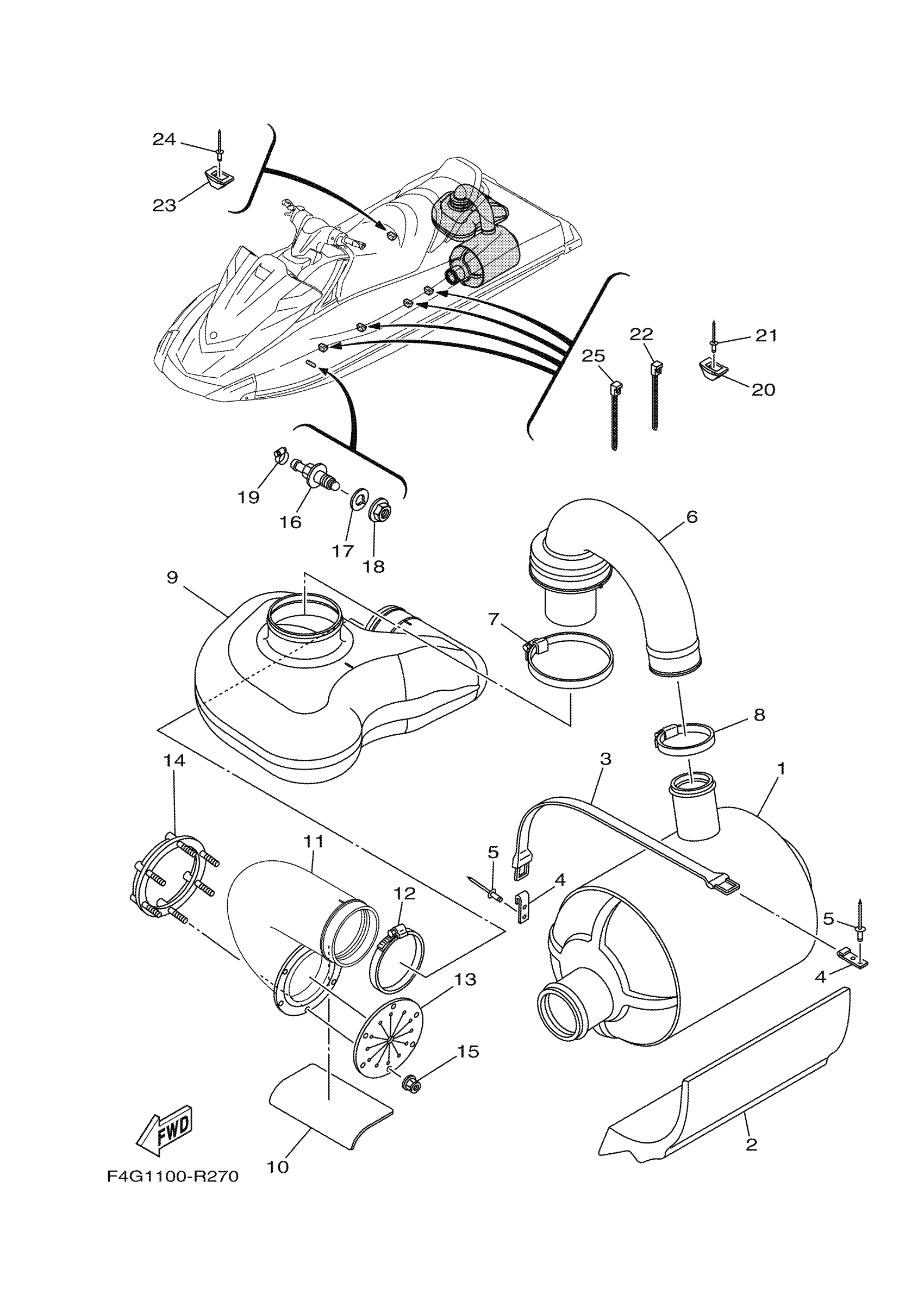

Yamaha VX1050BS (VX CRUISER VX1050BS VX DELUXE) F4GG 2017 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4G-U7550-02-00

$72.04

2

FLOATATION, BASE 1

F4G-U892F-10-00

$25.11

3

BAND, FUEL TANK

EW2-67821-00-00

Unavailable

4

HOOK A

GA7-65772-00-00

$8.81

5

RIVET (EU0)

90267-48938-00

$4.85

6

HOSE, EXHAUST

F4G-U7555-00-00

$68.99

7

BAND, HOSE 79

90601-179U8-00

$5.53

8

HOSE CLAMP ASSY

90450-99804-00

$4.51

9

TANK, WATER

F2N-U4261-00-00

$85.28

10

PAD, BATTERY

F1S-U8221-00-00

$2.88

11

HOSE,EXHAUST 3

F2N-U758D-00-00

$185.28

12

HOSE CLAMP ASSY

90450-99801-00

$4.01

13

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

14

PLATE

F1S-U757B-01-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.43

16

PILOT, WATER

F2C-U753B-01-00

$2.58

17

GASKET

F2C-U7564-02-00

$4.63

18

NUT

F2C-U2733-00-00

$2.00

19

CLIP

90467-17802-00

$3.02

20

BASE, CLAMP

F1W-U828M-00-00

$1.29

21

RIVET, BLIND

90267-489U6-00

Unavailable

22

CLAMP

90464-32801-00

$1.29

23

BASE, CLAMP

F1W-U828M-00-00

$1.29

24

RIVET, BLIND

90267-489U6-00

Unavailable

25

BAND

90601-200U2-00

$3.29
