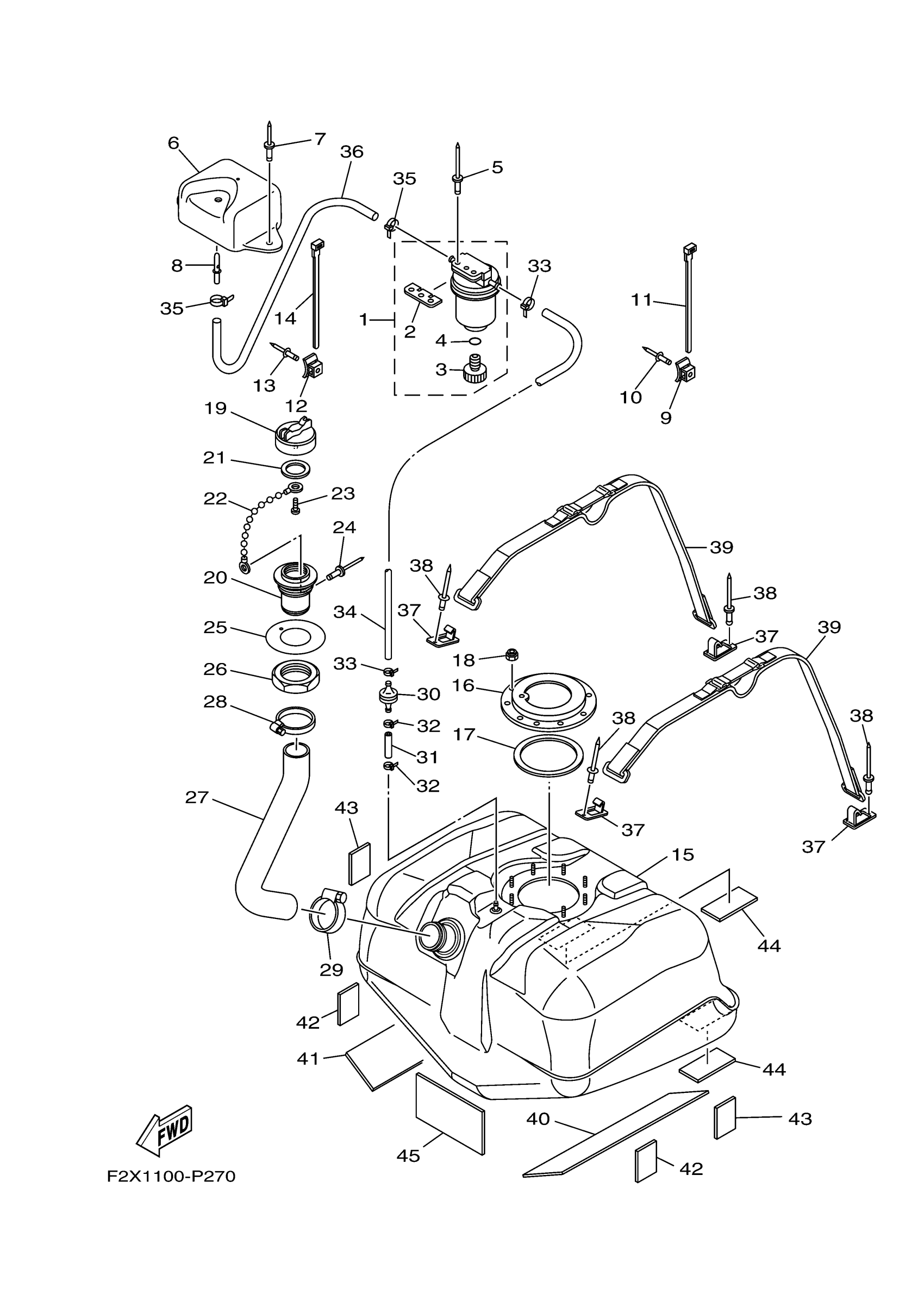

Yamaha VX1050BR (VX CRUISER VX1050BR VX DELUXE) F4G4 2016 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

2

. PLATE, FILTER

EW2-62142-00-00

$44.99

3

. PLUG, DRAIN

70R-24543-00-00

$9.08

4

. O-RING

70R-24489-00-00

$5.00

5

RIVET, BLIND

90267-489U2-00

$1.43

6

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

7

RIVET, BLIND

90267-489U6-00

$1.37

8

PIPE, VENTILATION

F1G-62149-00-00

$11.35

9

BASE, CLAMP

F1W-U828M-00-00

$1.23

10

RIVET, BLIND

90267-489U6-00

$1.37

11

CLAMP

90464-32801-00

$1.23

12

BASE, CLAMP

F1W-U828M-00-00

$1.23

13

RIVET, BLIND

90267-489U6-00

$1.37

14

CLAMP

90464-32801-00

$1.23

15

TANK, FUEL

F2S-U7711-02-00

$274.23

16

RING

F1B-U7773-00-00

$20.81

17

PACKING, SEAL

F1B-67747-00-00

$16.66

18

NUT, NYLON

9572R-06300-00

$2.80

19

CAP, FUEL FILLER

F2X-U7831-00-00

$22.97

20

SOCKET

F2X-U7833-00-00

$42.41

21

PACKING

GP7-U7832-01-00

$5.35

22

CHAIN BALL

GP7-U7835-00-00

$4.51

23

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

24

RIVET, BLIND

90267-329UR-00

$1.15

25

PACKING FUEL FILLER

GP7-U7834-10-00

$5.53

26

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

27

HOSE

F2X-U7844-01-00

$31.80

28

BAND, HOSE 55

90601-155U4-00

$5.87

29

BAND, HOSE 55

90601-155U4-00

$5.87

30

CHECK VALVE

EU0-67767-31-00

$20.93

31

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

32

CLAMP

90465-10098-00

$1.68

33

CLAMP

90465-10098-00

$1.68

34

HOSE, AIR VENT

F1K-U785G-01-00

Unavailable

35

CLAMP

90465-10098-00

$1.68

36

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

37

HOOK A

F1K-U5772-04-00

$6.29

38

RIVET (EU0)

90267-48938-00

$5.00

39

BELT, TANK 1

F2S-67743-01-00

$53.70

40

MAT 1

F2S-U759B-00-00

$3.86

41

MAT 1

F2S-U759B-00-00

$3.86

42

MAT 2

F1W-U759C-01-00

$2.50

43

MAT 2

F1W-U759C-01-00

$2.50

44

MAT 2

F1K-U759C-00-00

$1.72

45

PAD, BATTERY

F1S-U8221-00-00

$2.75
