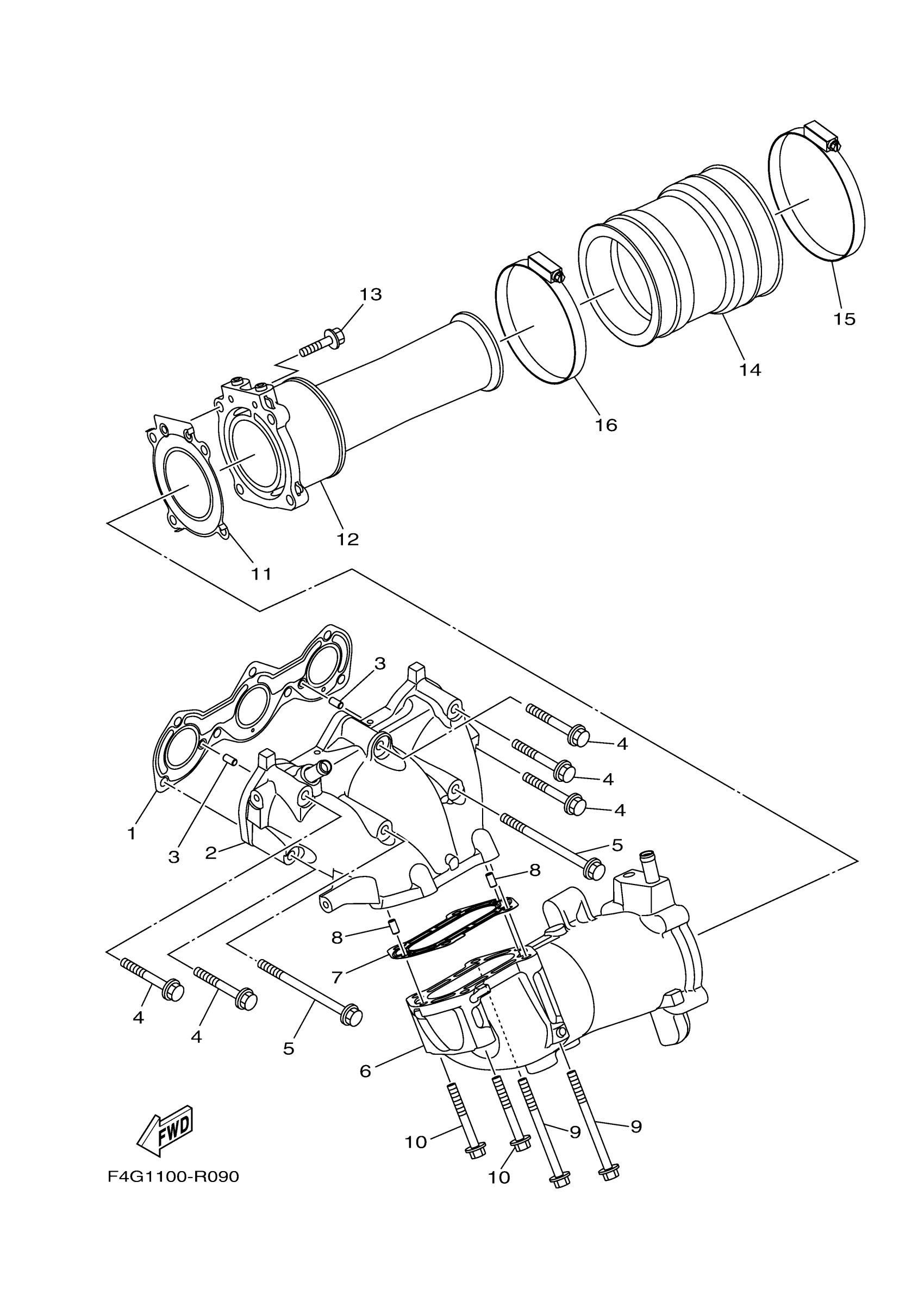

Yamaha VX1050BR (VX CRUISER VX1050BR VX DELUXE) F4G4 2016 EXHAUST 1 Diagram

Description

Price

. GASKET, EXHAUST PIPE

6EY-14613-00-00

$9.62

MUFFLER 1

6EY-14711-00-00

$499.98

PIN, DOWEL (614)

93606-12019-00

$3.05

BOLT, WITH WASHER

90119-08034-00

$3.33

BOLT, WITH WASHER

90119-08097-00

$5.18

MUFFLER 2

6EY-14721-00-00

$489.38

. GASKET, MUFFLER DAMPER 1

6EY-14739-00-00

$7.03

PIN, DOWEL (614)

93606-12019-00

$3.05

BOLT, WITH WASHER

90119-08029-00

$3.70

BOLT, WITH WASHER

90119-08093-00

$5.14

GASKET, MUFFLER DAMPER 2

6EY-14749-01-00

Unavailable

PIPE, TAIL

6EY-14784-00-00

$109.08

BOLT, FLANGE (3JPE)

95024-08030-00

$9.99

PIPE, OUTLET

6S5-E4752-01-00

$23.67

HOSE CLAMP ASSY

90450-99016-00

$20.99

HOSE CLAMP ASSY

90450-99015-00

$19.49
