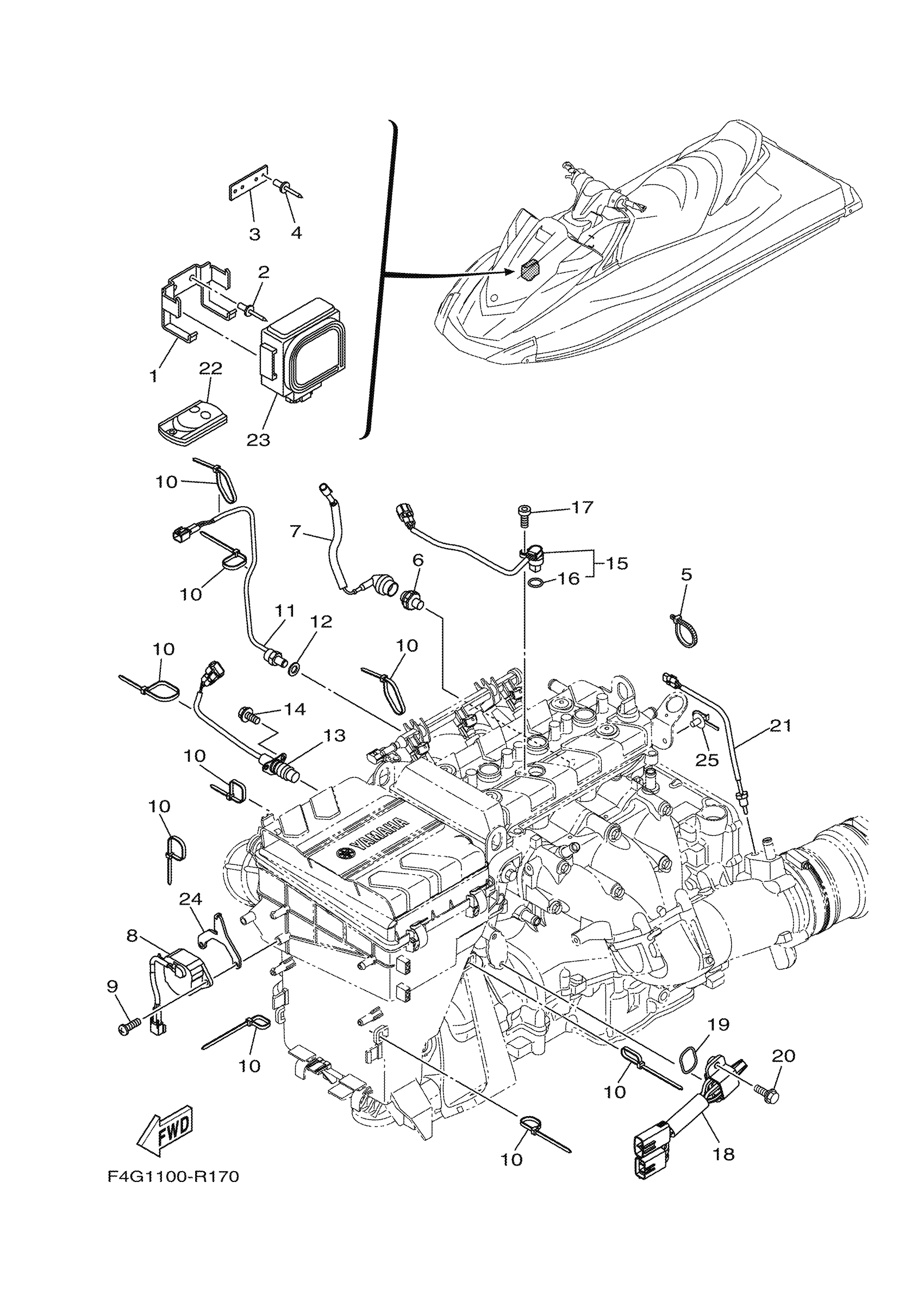

Yamaha VX1050BR (VX CRUISER VX1050BR VX DELUXE) F4G4 2016 ELECTRICAL 2 Diagram

#

Description
Price

1

BRACKET

F1W-U826C-00-00

$18.17

2

RIVET (EU0)

90267-48938-00

$5.00

3

PLATE

F1W-U8376-00-00

$2.80

4

RIVET (EU0)

90267-48938-00

$5.00

5

CLAMP(JN6)

90464-40825-00

$1.63

6

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

7

LEAD WIRE ASSY

60E-81315-01-00

$41.99

8

SWITCH ASSY

60E-8259E-00-00

$142.53

9

SCREW, TAPPING

97780-60520-00

$4.09

10

CLAMP

90465-13M18-00

$1.71

11

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

12

WASHER, PLATE

92990-10600-00

$2.57

13

THERMO SWITCH ASSY

6CR-82560-00-00

$72.41

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

15

SENSOR, CAM POSITI

2S3-85896-02-00

$83.10

16

O-RING

4D9-81168-00-00

Unavailable

17

BOLT,SOCKET

91380-06016-00

Unavailable

18

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

19

O-RING (341)

93210-32172-00

Unavailable

20

BOLT, WITH WASHER

90119-06MA3-00

$2.80

21

THERMOSENSOR ASSY

6DE-85790-00-00

$91.95

22

XMTR. COMP.

6B6-86261-00-00

$228.48

23

RECEIVER COMPLETE

6B6-86265-00-00

$427.26

24

PLATE

6EY-83618-00-00

$7.27

25

CLAMP

90464-20005-00

$2.11
