SEAT & UNDER LOCKER

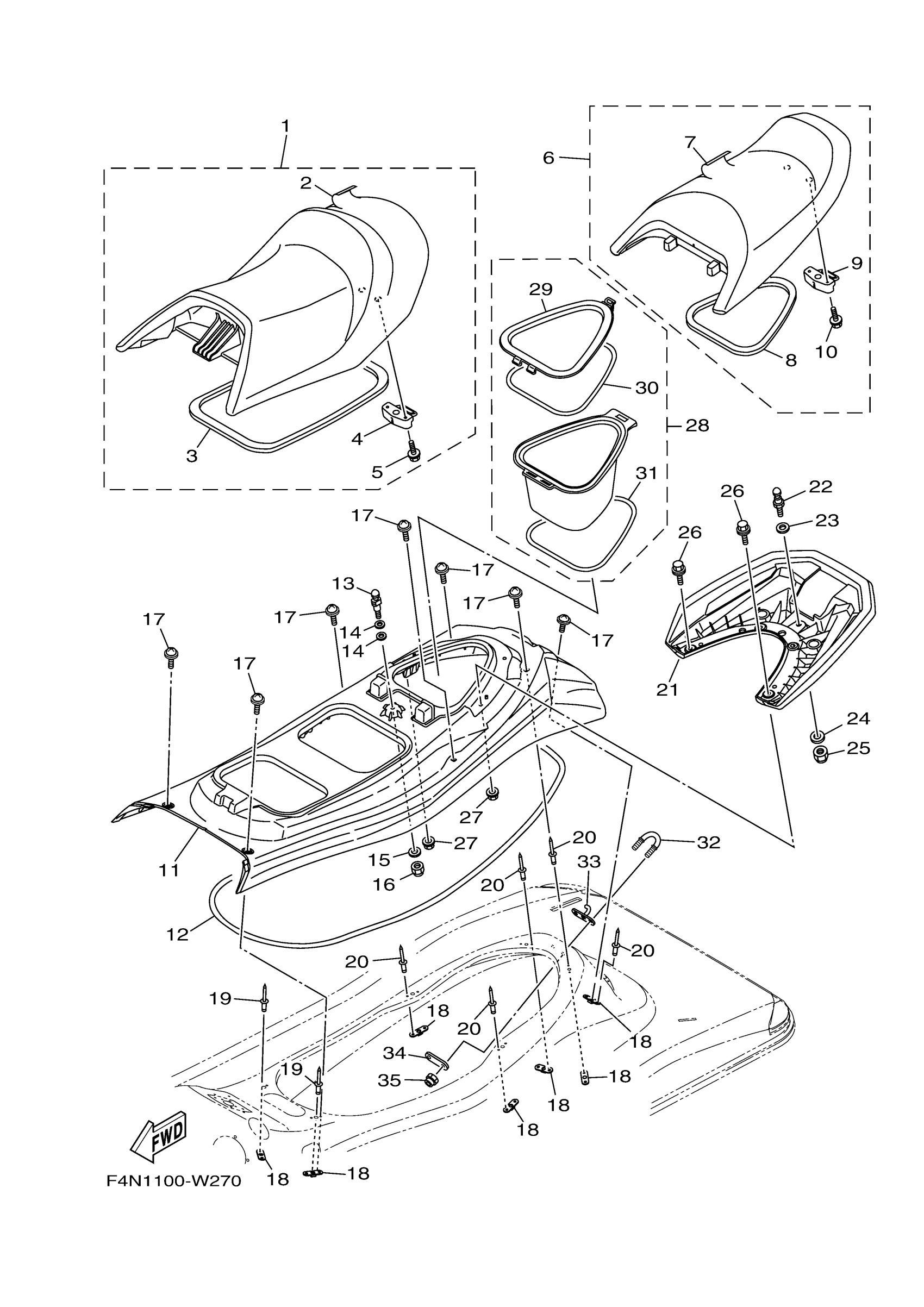

Yamaha VX1050BB (VX CRUISER WITH AUDIO) F4NT 2025 SEAT & UNDER LOCKER Diagram
#
1
DOUBLE SEAT ASSY
F4N-U371A-M0-00
$452.99
1
DOUBLE SEAT ASSY
F6G-U371A-10-00
$469.99
2
COVER, SEAT 1
F4N-U371B-M0-00
$313.99
2
. COVER, SEAT 1
F6G-U371B-10-00
Unavailable
3
. PACKING
F4P-U2664-00-00
Unavailable
4
. SEAT LOCK ASSY
F2C-U3850-00-00
Unavailable
5
BOLT, WITH WASHER
90119-06808-00
Unavailable
6
SINGLE SEAT ASSY
F4N-U372A-M0-00
$479.99
6
SINGLE SEAT ASSY
F6G-U372A-10-00
Unavailable
7
COVER, SEAT
F4N-U372B-M0-00
$307.99
7
. COVER, SEAT
F6G-U372B-10-00
Unavailable
8
. PACKING 5
F4P-U266D-00-00
Unavailable
9
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
10
BOLT, WITH WASHER
90119-06808-00
Unavailable
11
BASE, SEAT 2
F4P-U3743-00-00
Unavailable
11
BASE, SEAT 2
F4P-U3743-10-00
Unavailable
12
PACKING 3
F4P-U266B-00-00
Unavailable
13
PIN
GH1-U3774-00-00
Unavailable
14
WASHER, PLATE
90201-109U6-00
Unavailable
15
WASHER
9299R-10200-00
Unavailable
16
NUT, NYLON
9572R-10300-00
Unavailable
17
BOLT, SPECIAL
F3Y-U491K-02-00
Unavailable
18
BRACKET
F2C-U826C-00-00
Unavailable
19
RIVET 1
F4P-U516R-01-00
Unavailable
20
RIVET (EU0)
90267-48938-00
Unavailable
21
GRIP, HAND
F4N-U271B-00-00
Unavailable
22
PIN
GH1-U3774-00-00
Unavailable
23
WASHER, PLATE
90201-109U6-00
Unavailable
24
WASHER
9299R-10200-00
Unavailable
25
NUT, NYLON
9572R-10300-00
Unavailable
26
BOLT, WITH WASHER
90119-08829-00
Unavailable
27
NUT, LOCK
F3Y-U142L-00-00
Unavailable
28
CASE ASSY 1
F4P-U591A-00-00
Unavailable
29
. CAP,CASE
F4P-U591C-00-00
Unavailable
30
. PACKING,CASE
F4P-U591D-00-00
Unavailable
31
. PACKING,6
F4P-U266E-00-00
Unavailable
32
STERN EYE
F2N-U1628-10-00
Unavailable
33
EYELET
F4G-U372G-00-00
Unavailable
34
PLATE A
GP7-U4953-10-00
Unavailable
35
NUT, NYLON (6J8)
95780-08300-00
Unavailable
