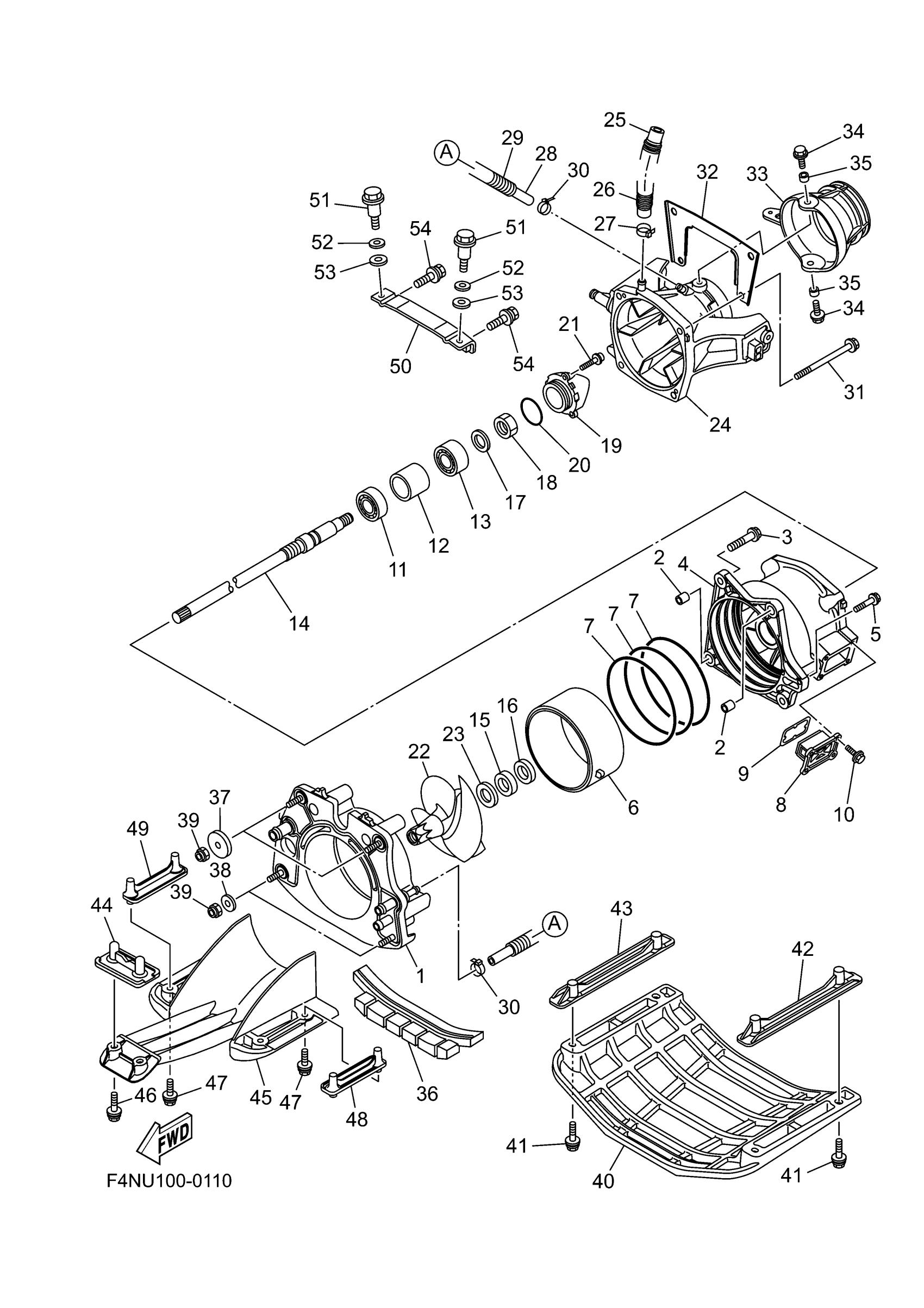

Yamaha VX1050BB (VX CRUISER WITH AUDIO) F4NT 2025 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6CS-G5831-20-00

$124.23

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

HSG.,IMPEL

6EY-R1312-11-00

$135.00

5

BOLT, WITH WASHER

90119-06894-00

$1.37

6

SLEEVE, IMPELLER

6HH-R1337-00-00

$97.65

7

O-RING

93211-65801-00

$3.43

8

FILTER

6GN-G6882-00-00

$11.48

9

. O-RING

66V-42414-00-00

$5.18

10

BOLT,WITH WASHER

90119-06890-00

$1.07

11

BEARING

93306-206Y7-00

Unavailable

12

SPACER 1

6CS-G5538-00-00

$33.01

13

BEARING

93306-355Y0-00

$19.26

14

SHAFT, DRIVE

6JS-G5511-00-00

$254.89

15

OIL SEAL

93101-28M66-00

Unavailable

16

OIL SEAL

93101-28002-00

$13.40

17

WASHER

92990-20600-00

$5.00

18

NUT

95312-20700-00

$10.36

19

CAP

6AN-R1326-00-00

$17.94

20

O-RING

93210-54010-00

$2.64

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

22

IMPELLER

6JS-R1321-00-00

$319.36

23

SPACER

6EY-R1348-00-00

$6.38

24

NOZZLE

6JS-R1318-00-00

$95.44

25

HOSE 1

6CN-U72M2-00-00

$5.44

26

HOSE (L175)

90446-24M46-00

$1.36

27

BAND, HOSE 18

90601-118UF-00

$2.07

28

HOSE (L355)

90445-14807-00

$1.74

29

HOSE (L320)

90446-20MF5-00

$4.57

30

CLAMP

90465-10098-00

$1.68

31

BOLT, WITH WASHER

90119-10811-00

$1.37

32

BRACKET

6EY-R1959-00-00

$14.35

33

NOZZLE, DEFLECTOR

6EX-R1313-00-00

$20.81

34

BOLT, WITH WASHER

90119-08841-00

$1.01

35

COLLAR(6R7)

90387-08M06-00

Unavailable

36

SPACER

F2X-U72C0-00-00

$15.07

37

WASHER

F1S-U725E-01-00

$7.89

38

WASHER, PLATE

90201-10801-00

$3.52

39

NUT, NYLON

9572R-10300-00

$3.37

40

PLATE 2

F4N-U273B-00-00

$109.08

41

BOLT

F4L-U3222-01-00

Unavailable

42

BRACKET 2

F2X-U8572-00-00

$12.91

43

BRACKET 2

F2X-U8572-00-00

$12.91

44

BRACKET, 3

F2S-U8577-00-00

$15.07

45

SCREEN, INTAKE

6EX-R1333-00-00

$73.35

46

BOLT, WITH WASHER

90119-08829-00

$3.88

47

BOLT, WITH WASHER

90119-08844-00

$1.29

48

BRACKET 1

F3P-U8571-00-00

$7.18

49

BRACKET 1

F3P-U8571-00-00

$7.18

50

BRACKET

F2C-U7557-01-00

$30.29

51

BOLT

90109-08043-00

$4.09

52

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

53

GASKET

90430-12002-00

$1.81

54

BOLT, WITH WASHER

90119-08800-00

$4.09
