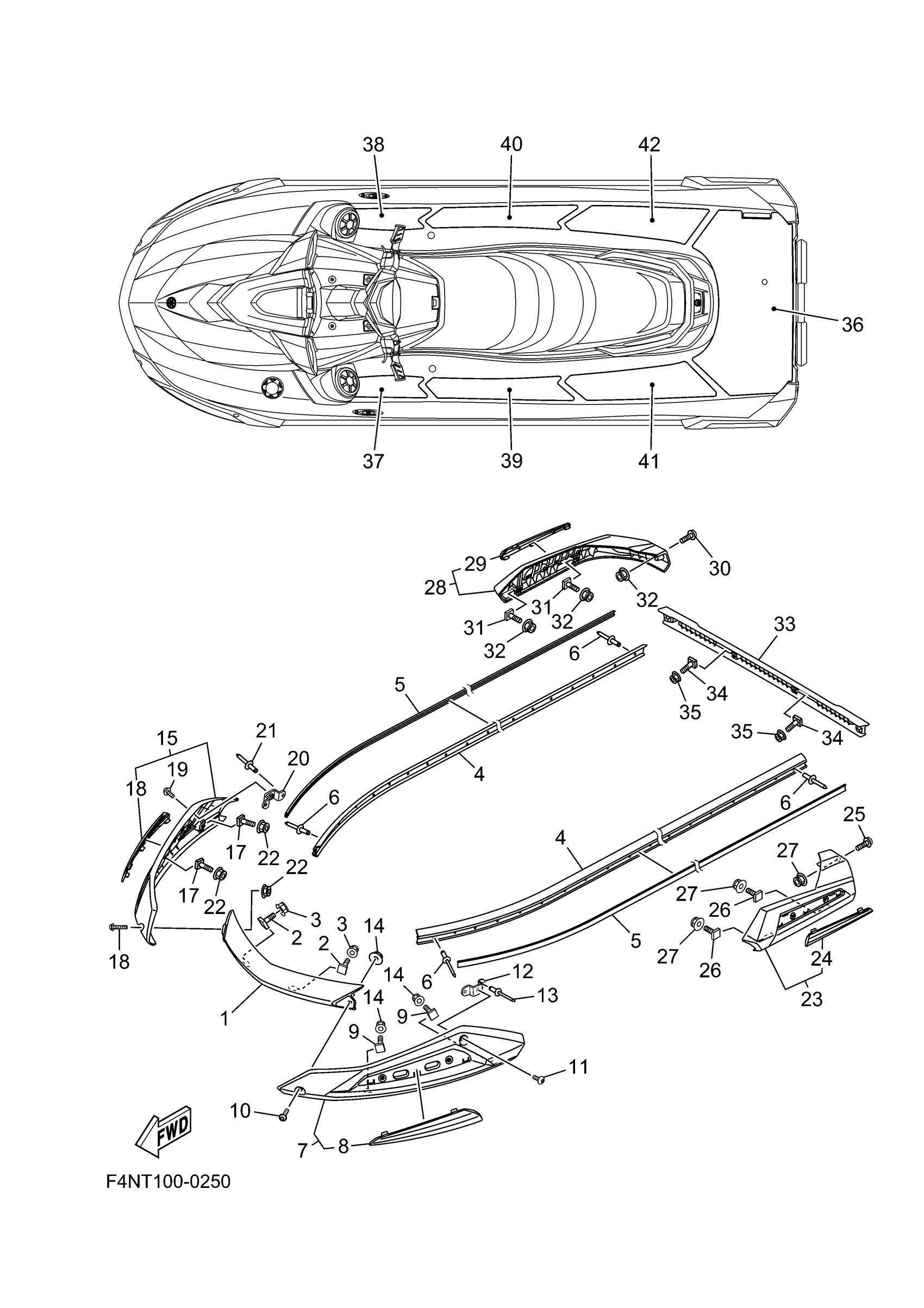

Yamaha VX1050BB (VX CRUISER WITH AUDIO) F4NT 2025 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4N-U2511-00-00

$24.44

1

GUNWALE, BOW

F4N-U2511-10-00

$22.97

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F4N-U2512-00-00

$33.32

4

GUNWALE, SIDE

F4N-U2512-10-00

$30.13

5

INNER,GUNWALE

F4N-U2519-10-00

$18.17

5

INNER,GUNWALE

F4N-U2519-80-00

$28.77

6

RIVET

F7K-U1454-00-00

$4.46

7

GUNWALE ASSY.

F6G-U2510-20-00

$43.73

7

GUNWALE ASSY.

F6G-U2510-A0-00

$49.98

8

GUNWALL INSIDE

F4N-U2514-J0-00

$15.89

8

. GUNWALL INSIDE

F4N-U2514-W0-00

$69.68

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

SCREW

F3X-U7823-12-00

$1.25

11

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

12

BRACKET

F3X-U4949-00-00

$2.52

13

RIVET, BLIND

90267-489U6-00

$1.37

14

NUT, LOCK

F2N-U142L-00-00

$1.00

15

GUNWALE ASSY.

F6G-U2510-30-00

Unavailable

15

GUNWALE ASSY.

F6G-U2510-B0-00

$49.98

16

GUNWALL INSIDE

F4N-U2514-K0-00

Unavailable

16

. GUNWALL INSIDE

F4N-U2514-X0-00

$69.68

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

SCREW

F3X-U7823-12-00

$1.25

19

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

20

BRACKET

F3X-U4949-00-00

$2.52

21

RIVET, BLIND

90267-489U6-00

$1.37

22

NUT, LOCK

F2N-U142L-00-00

$1.00

23

STERN GUNWALE COMP

F6G-U2504-20-00

Unavailable

23

STERN GUNWALE COMP.

F6G-U2504-C0-00

$39.77

24

INNER GUNWALE, AFT

F4N-U255C-J0-00

Unavailable

24

. INNER GUNWALE, AFT

F4N-U255C-W0-00

$18.92

25

SCREW

F4P-U7823-00-00

$1.37

26

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

27

NUT, LOCK

F2N-U142L-00-00

$1.00

28

STERN GUNWALE COMP

F6G-U2504-30-00

Unavailable

28

STERN GUNWALE COMP.

F6G-U2504-D0-00

$39.77

29

INNER GUNWALE, AFT

F4N-U255C-K0-00

Unavailable

29

. INNER GUNWALE, AFT

F4N-U255C-X0-00

$18.92

30

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

31

SCREW

F4P-U7823-00-00

$1.37

32

NUT, LOCK

F2N-U142L-00-00

$1.00

33

COVER, GUNWALE 1

F4P-U252C-02-00

Unavailable

33

COVER, GUNWALE 1

F4P-U252C-12-00

Unavailable

34

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

35

NUT, LOCK

F2N-U142L-00-00

$1.00

36

MAT, UPPER

F4N-U3581-00-00

$68.93

37

MAT, STEP 1

F6G-U351H-00-00

$11.35

38

MAT, STEP 2

F6G-U351J-00-00

$11.35

39

MAT, STEP 3

F4N-U351K-00-00

$15.89

40

MAT, STEP 4

F4N-U351M-00-00

$15.89

41

MAT, STEP 5

F4N-U351N-00-00

$24.23

42

MAT, STEP 6

F4N-U351P-00-00

$24.23
