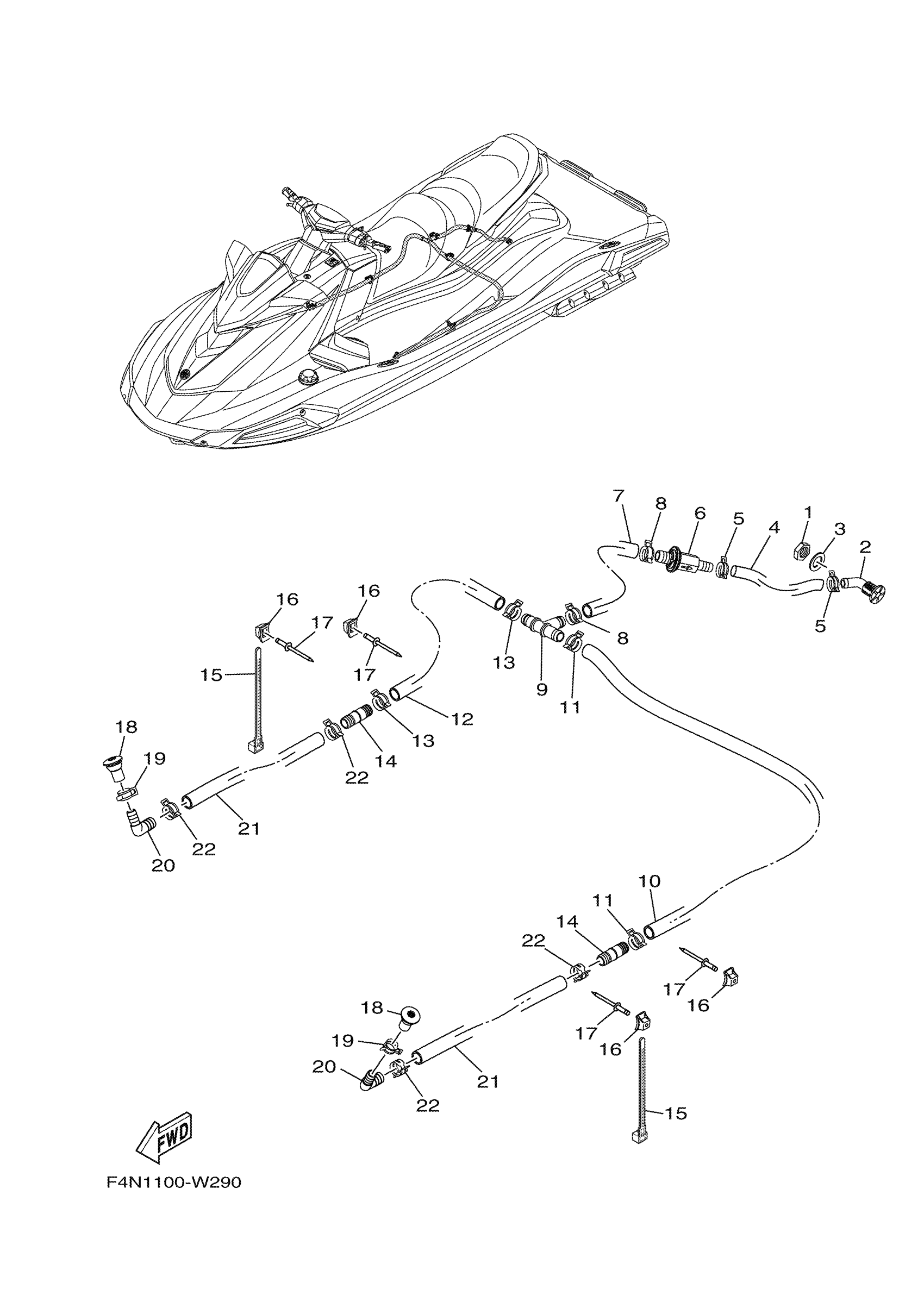

Yamaha VX1050AY (VX LIMITED) F4ND 2023 BILGE PUMP Diagram

#

Description

Price

1

NUT, DRAIN 1

F3X-U224B-00-00

Unavailable

2

BODY, DRAIN 1

F3X-U224C-00-00

Unavailable

3

GASKET

F3X-U7564-00-00

Unavailable

4

HOSE, DRAIN 3

F4P-U7628-00-00

Unavailable

5

CLIP

90467-17802-00

Unavailable

6

CHECK VALVE

F3X-U7767-00-00

Unavailable

7

HOSE 1

F4P-U7626-00-00

Unavailable

8

BAND

90601-200U1-00

Unavailable

9

JOINT,HOSE

F3X-U7857-00-00

Unavailable

10

HOSE, DRAIN 2

F4P-U7629-01-00

Unavailable

11

BAND

90601-200U1-00

Unavailable

12

HOSE, DRAIN

F4P-U2249-01-00

Unavailable

13

BAND

90601-200U1-00

Unavailable

14

JOINT, DRAIN

F3X-U7617-00-00

Unavailable

15

BAND

90601-200U2-00

Unavailable

16

BASE, CLAMP

F1W-U828M-00-00

Unavailable

17

RIVET, BLIND

90267-48806-00

Unavailable

18

PLUG,DRAIN

F4P-U2255-00-00

Unavailable

19

BAND

90601-200U1-00

Unavailable

20

CONNECTOR

F3X-U8377-00-00

Unavailable

21

HOSE 1

F4P-U7626-00-00

Unavailable

22

BAND

90601-200U1-00

Unavailable
