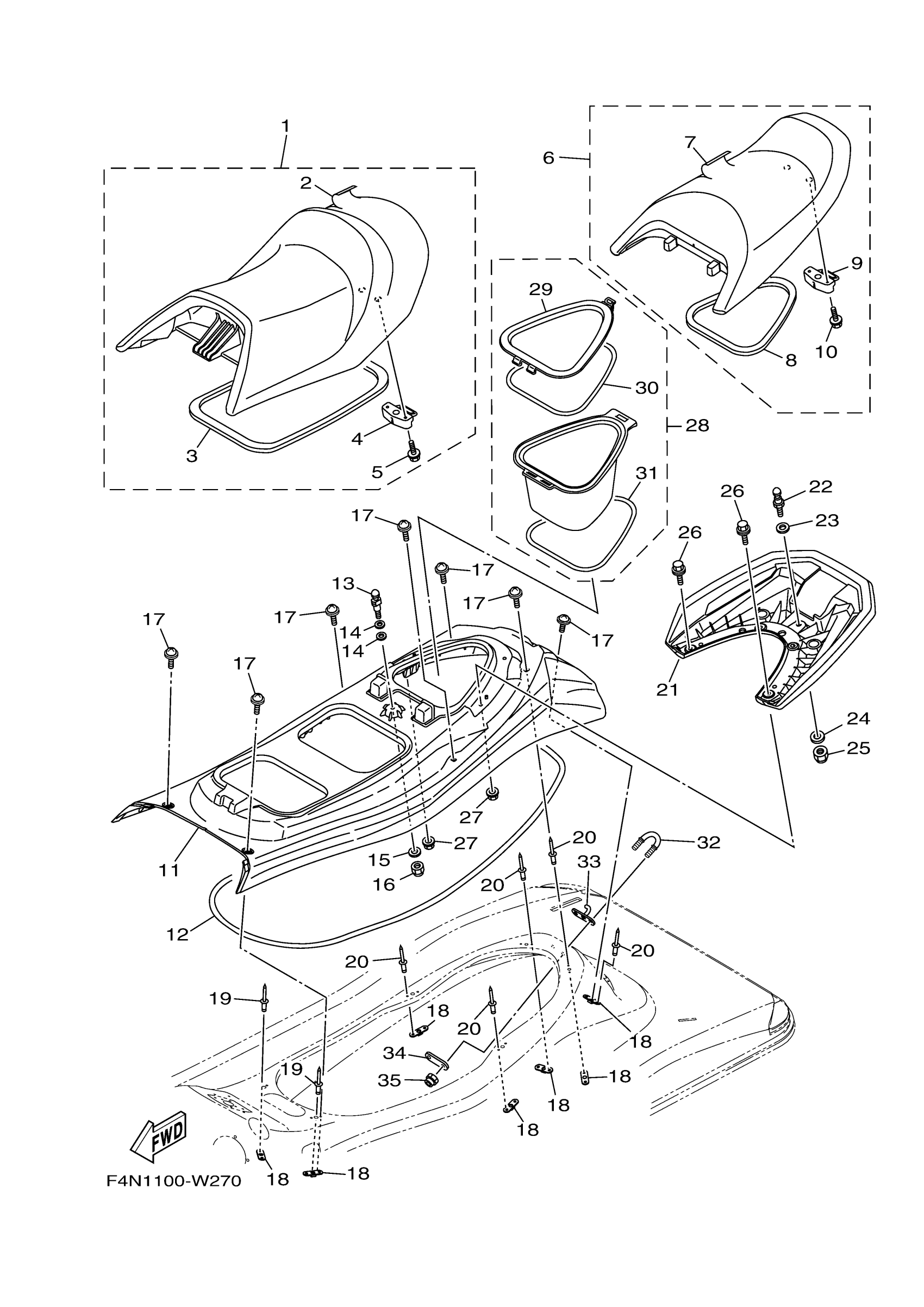

Yamaha VX1050AX (VX LIMITED) F4N7 2022 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F4N-U371A-70-00

Unavailable

2

. COVER, SEAT 1

F4N-U371B-70-00

Unavailable

3

. PACKING

F4P-U2664-00-00

Unavailable

4

. SEAT LOCK ASSY

F2C-U3850-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

SINGLE SEAT ASSY

F4N-U372A-70-00

Unavailable

7

. COVER, SEAT

F4N-U372B-70-00

Unavailable

8

. PACKING 5

F4P-U266D-00-00

Unavailable

9

SEAT LOCK ASSY

F1B-U3850-02-00

Unavailable

10

BOLT, WITH WASHER

90119-06808-00

Unavailable

11

BASE, SEAT 2

F4P-U3743-00-00

Unavailable

12

PACKING 3

F4P-U266B-00-00

Unavailable

13

PIN

GH1-U3774-00-00

Unavailable

14

WASHER, PLATE

90201-109U6-00

Unavailable

15

WASHER

9299R-10200-00

Unavailable

16

NUT, NYLON

9572R-10300-00

Unavailable

17

BOLT, SPECIAL

F3Y-U491K-02-00

Unavailable

18

BRACKET

F2C-U826C-00-00

Unavailable

19

RIVET 1

F4P-U516R-01-00

Unavailable

20

RIVET (EU0)

90267-48938-00

Unavailable

21

GRIP, HAND

F4N-U271B-00-00

Unavailable

22

PIN

GH1-U3774-00-00

Unavailable

23

WASHER, PLATE

90201-109U6-00

Unavailable

24

WASHER

9299R-10200-00

Unavailable

25

NUT, NYLON

9572R-10300-00

Unavailable

26

BOLT, WITH WASHER

90119-08829-00

Unavailable

27

NUT, LOCK

F3Y-U142L-00-00

Unavailable

28

CASE ASSY 1

F4P-U591A-00-00

Unavailable

29

. CAP,CASE

F4P-U591C-00-00

Unavailable

30

. PACKING,CASE

F4P-U591D-00-00

Unavailable

31

. PACKING,6

F4P-U266E-00-00

Unavailable

32

STERN EYE

F2N-U1628-02-00

Unavailable

33

EYELET

F4G-U372G-00-00

Unavailable

34

PLATE A

GP7-U4953-10-00

Unavailable

35

NUT, NYLON (6J8)

95780-08300-00

Unavailable
