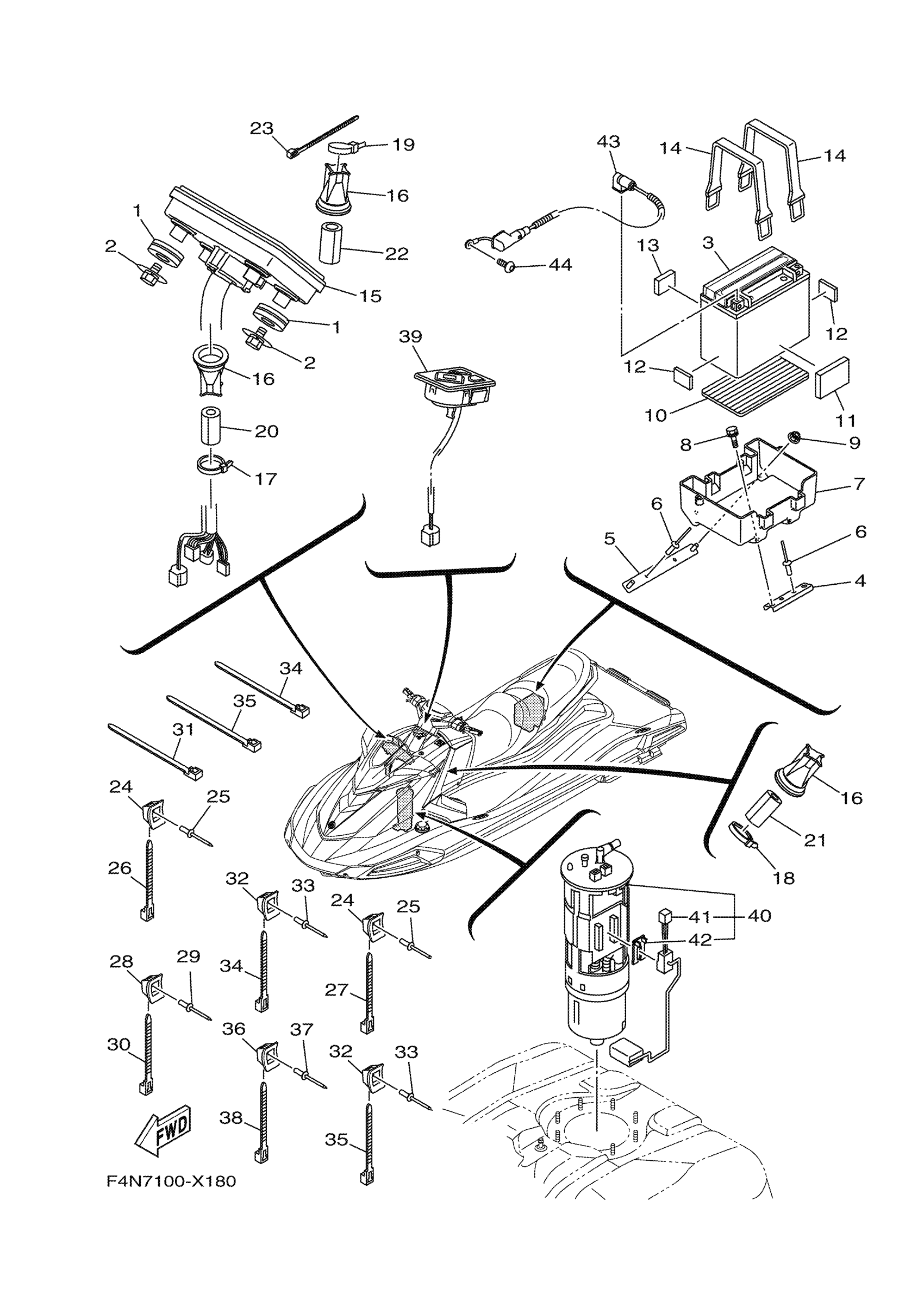

Yamaha VX1050AX (VX LIMITED) F4N7 2022 ELECTRICAL 3 Diagram

#

Description
Price

1

. GROMMET

90480-19800-00

Unavailable

2

BOLT, WITH WASHER

90119-05803-00

Unavailable

3

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

4

PLATE, BASE 2

F2S-U8592-00-00

Unavailable

5

PLATE, BASE 3

F2S-U8593-00-00

Unavailable

6

RIVET (EU0)

90267-48938-00

Unavailable

7

CASE, BATTERY

F2S-U8211-00-00

Unavailable

8

BOLT, WITH WASHER

90119-06820-00

Unavailable

9

NUT, LOCK

F2N-U142L-00-00

Unavailable

10

PAD, BATTERY

F1S-U8221-00-00

Unavailable

11

MAT 2

F1W-U759C-01-00

Unavailable

12

PAD, BATTERY

EU0-U8221-31-00

$2.99

13

PACKING

F2C-U1743-00-00

Unavailable

14

BAND, BATTERY 1

F4P-U821D-00-00

Unavailable

15

METER ASSY

F4P-U820A-02-00

$513.99

16

GROMMET

F3J-U822E-01-00

Unavailable

17

CLAMP

90464-32801-00

Unavailable

18

CLAMP

90464-32801-00

Unavailable

19

CLAMP

90464-32801-00

Unavailable

20

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

21

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

22

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

23

CLAMP(JN6)

90464-31827-00

Unavailable

24

BASE, CLAMP

F1W-U828M-00-00

Unavailable

25

RIVET, BLIND

90267-48806-00

Unavailable

26

CLAMP

90464-32801-00

Unavailable

27

CLAMP

90464-32801-00

Unavailable

28

BASE, CLAMP

F1W-U828M-00-00

Unavailable

29

RIVET, BLIND

90267-48806-00

Unavailable

30

CLAMP

90464-32801-00

Unavailable

31

CLAMP

90464-32801-00

Unavailable

32

BASE, CLAMP

F1W-U828M-00-00

Unavailable

33

RIVET, BLIND

90267-48806-00

Unavailable

34

BAND

90601-200U2-00

Unavailable

35

CLAMP

F2C-U4256-00-00

Unavailable

36

BASE, CLAMP

F1W-U828M-00-00

Unavailable

37

RIVET, BLIND

90267-48806-00

Unavailable

38

CLAMP

90464-32801-00

Unavailable

39

SWITCH ASSY.

F4P-U8090-02-00

Unavailable

40

FUEL PUMP COMP.

6S5-13907-05-00

Unavailable

41

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

42

DAMPER, STOPPER

60E-82556-10-00

Unavailable

43

WIRE, MINUS LEAD

6JS-82116-00-00

Unavailable

44

BOLT, WITH WASHER

97513-08514-00

Unavailable
