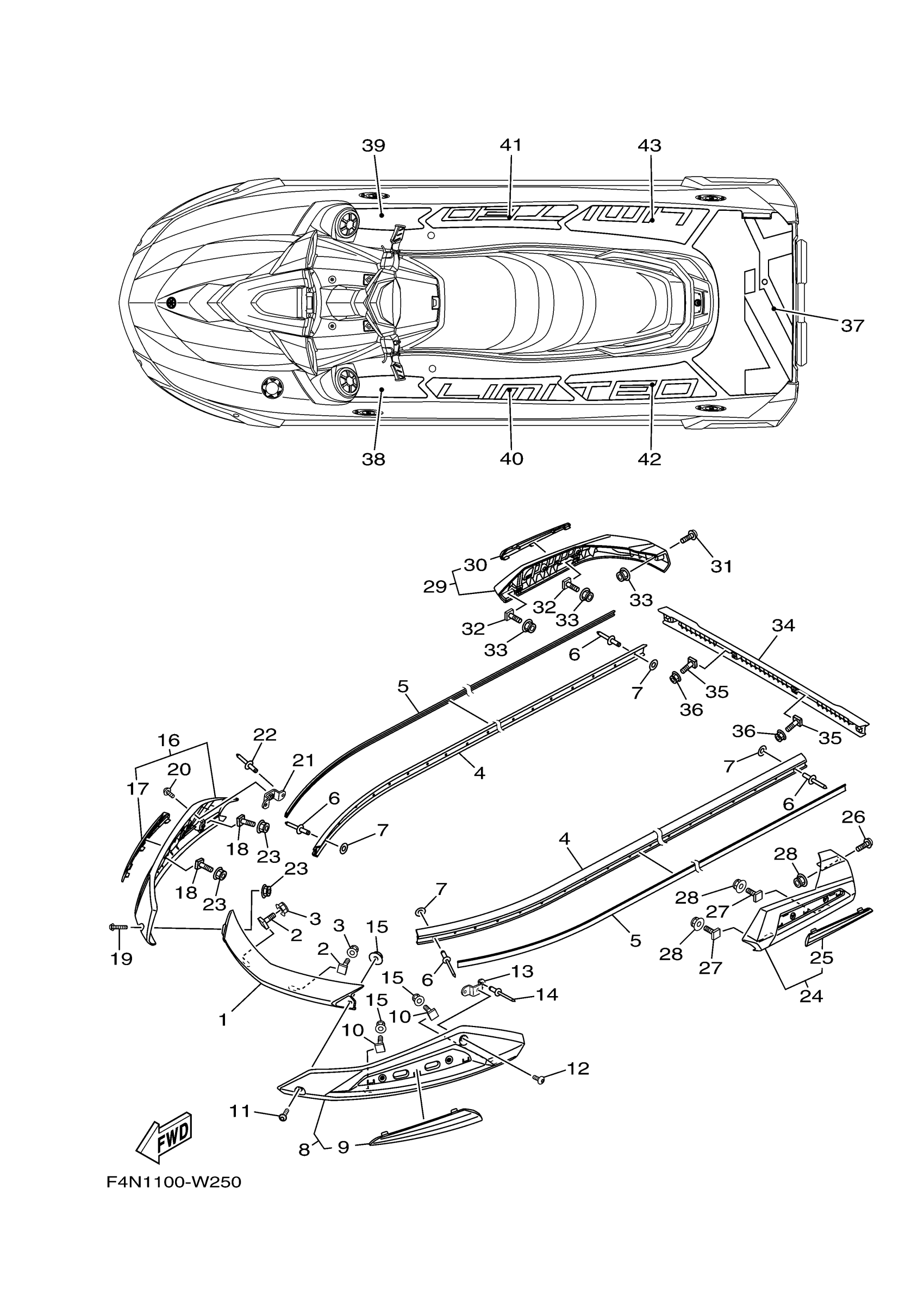

Yamaha VX1050AW (VX LIMITED) F4N1 2021 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4N-U2511-10-00

Unavailable

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

Unavailable

4

GUNWALE, SIDE

F4N-U2512-00-00

Unavailable

5

INNER,GUNWALE

F4N-U2519-30-00

Unavailable

6

RIVET, BLIND

90267-489U8-00

Unavailable

7

WASHER

9299R-05200-00

Unavailable

8

GUNWALE ASSY.

F4N-U2510-60-00

$51.99

9

. GUNWALL INSIDE

F4N-U2514-60-00

Unavailable

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

Unavailable

12

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

13

BRACKET

F3X-U4949-00-00

Unavailable

14

RIVET, BLIND

90267-489U6-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

Unavailable

16

GUNWALE ASSY.

F4N-U2510-70-00

Unavailable

17

GUNWALL INSIDE

F4N-U2514-70-00

Unavailable

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

SCREW

F3X-U7823-12-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

21

BRACKET

F3X-U4949-00-00

Unavailable

22

RIVET, BLIND

90267-489U6-00

Unavailable

23

NUT, LOCK

F2N-U142L-00-00

Unavailable

24

STERN GUNWALE COMP.

F4N-U2504-60-00

Unavailable

25

INNER GUNWALE, AFT

F4N-U255C-60-00

Unavailable

26

SCREW

F4P-U7823-00-00

Unavailable

27

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

28

NUT, LOCK

F2N-U142L-00-00

Unavailable

29

STERN GUNWALE COMP.

F4N-U2504-70-00

Unavailable

30

INNER GUNWALE, AFT

F4N-U255C-70-00

Unavailable

31

SCREW

F4P-U7823-00-00

Unavailable

32

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

33

NUT, LOCK

F2N-U142L-00-00

Unavailable

34

COVER, GUNWALE 1

F4P-U252C-11-00

Unavailable

35

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

36

NUT, LOCK

F2N-U142L-00-00

Unavailable

37

MAT, UPPER

F4S-U3581-11-00

Unavailable

38

MAT, STEP 1

F4S-U351H-10-00

Unavailable

39

MAT, STEP 2

F4S-U351J-10-00

Unavailable

40

MAT, STEP 3

F4S-U351K-10-00

Unavailable

41

MAT, STEP 4

F4S-U351M-10-00

Unavailable

42

MAT, STEP 5

F4S-U351N-10-00

Unavailable

43

MAT, STEP 6

F4S-U351P-10-00

Unavailable
