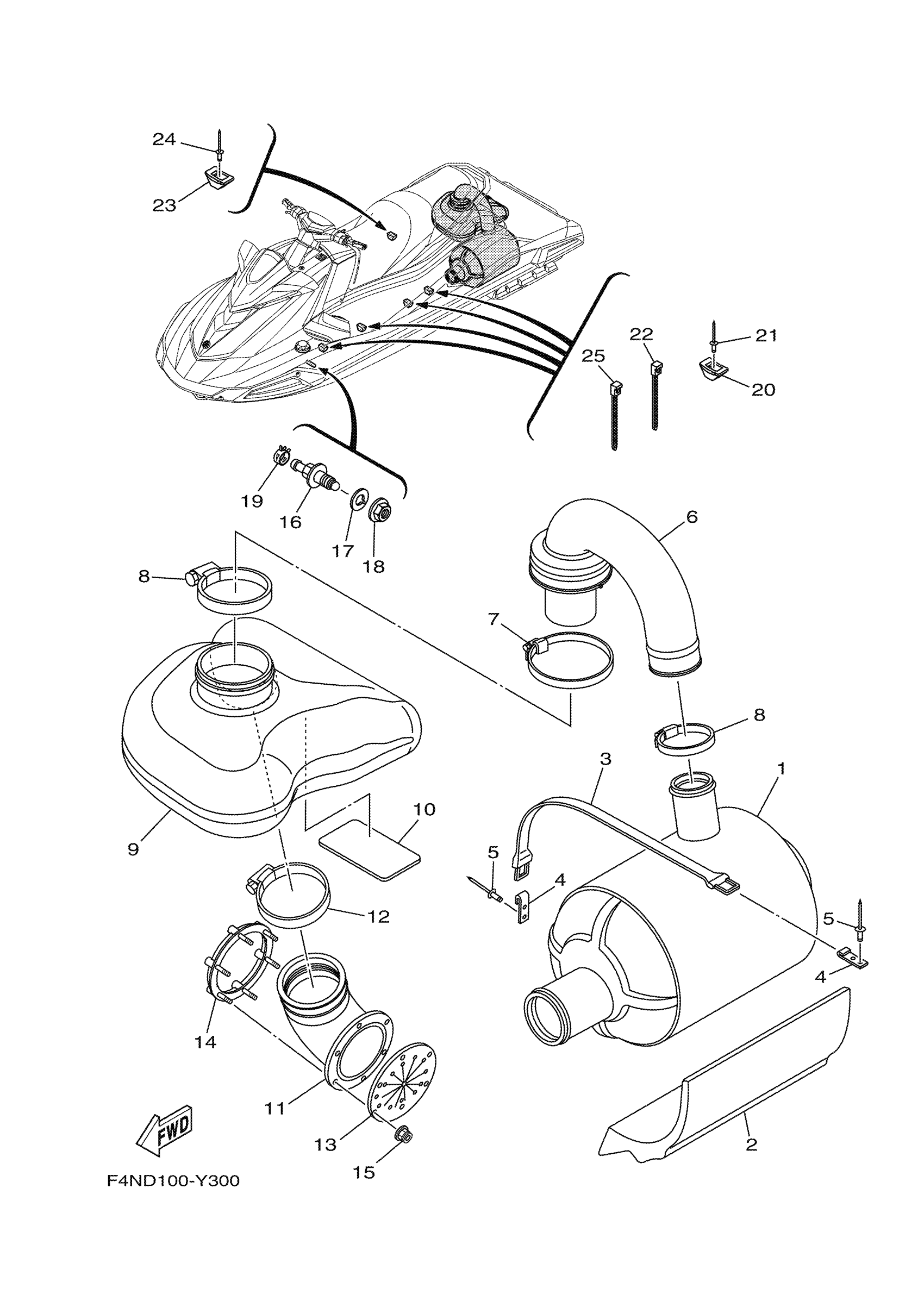

Yamaha VX1050AA (LIMITED) F4NK 2024 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4N-U7550-00-00

$319.68

2

FLOATATION, BASE 1

F4G-U892F-10-00

$23.67

3

BAND, FUEL TANK

EW2-67821-00-00

$38.49

4

HOOK A

GA7-65772-00-00

$9.08

5

RIVET (EU0)

90267-48938-00

$5.00

6

HOSE, EXHAUST

F4G-U7555-00-00

$65.94

7

BAND, HOSE 79

90601-179U8-00

$5.31

8

HOSE CLAMP ASSY

90450-99804-00

Unavailable

9

TANK, WATER

F3X-U4261-00-00

$65.20

10

PAD, BATTERY

F1S-U8221-00-00

$2.75

11

HOSE,EXHAUST 3

F3X-U758D-00-00

$16.50

12

HOSE CLAMP ASSY

90450-99801-00

$3.79

13

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

14

PLATE

F1S-U757B-01-00

$22.97

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

PILOT, WATER

F2C-U753B-01-00

$2.44

17

GASKET

F2C-U7564-02-00

$4.77

18

NUT

F2C-U2733-00-00

$1.87

19

CLIP

90467-150A5-00

$2.64

20

BASE, CLAMP

F1W-U828M-00-00

$1.23

21

RIVET, BLIND

90267-48806-00

$2.00

22

CLAMP

90464-32801-00

$1.23

23

BASE, CLAMP

F1W-U828M-00-00

$1.23

24

RIVET, BLIND

90267-48806-00

$2.00

25

BAND

90601-200U2-00

$3.16
