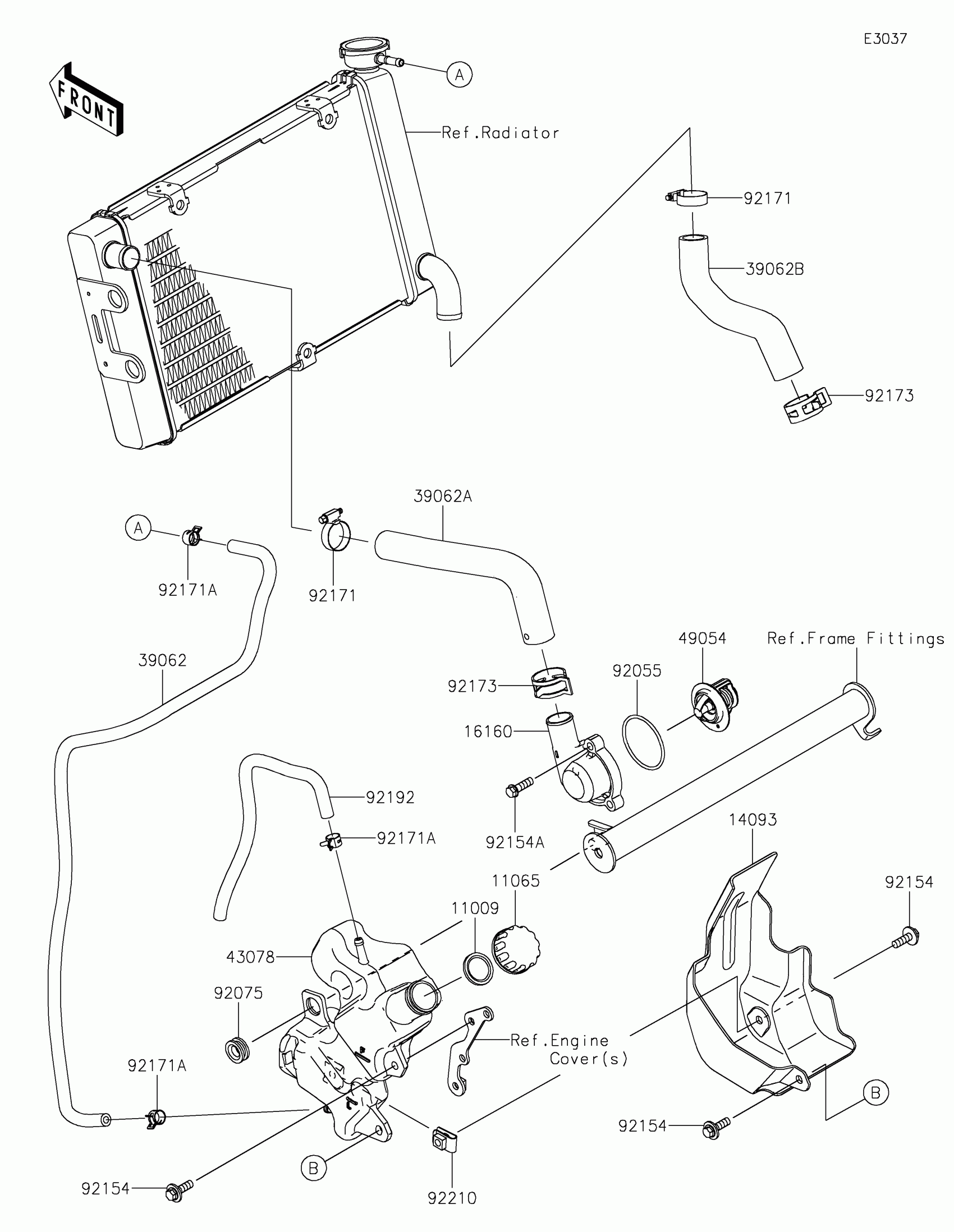

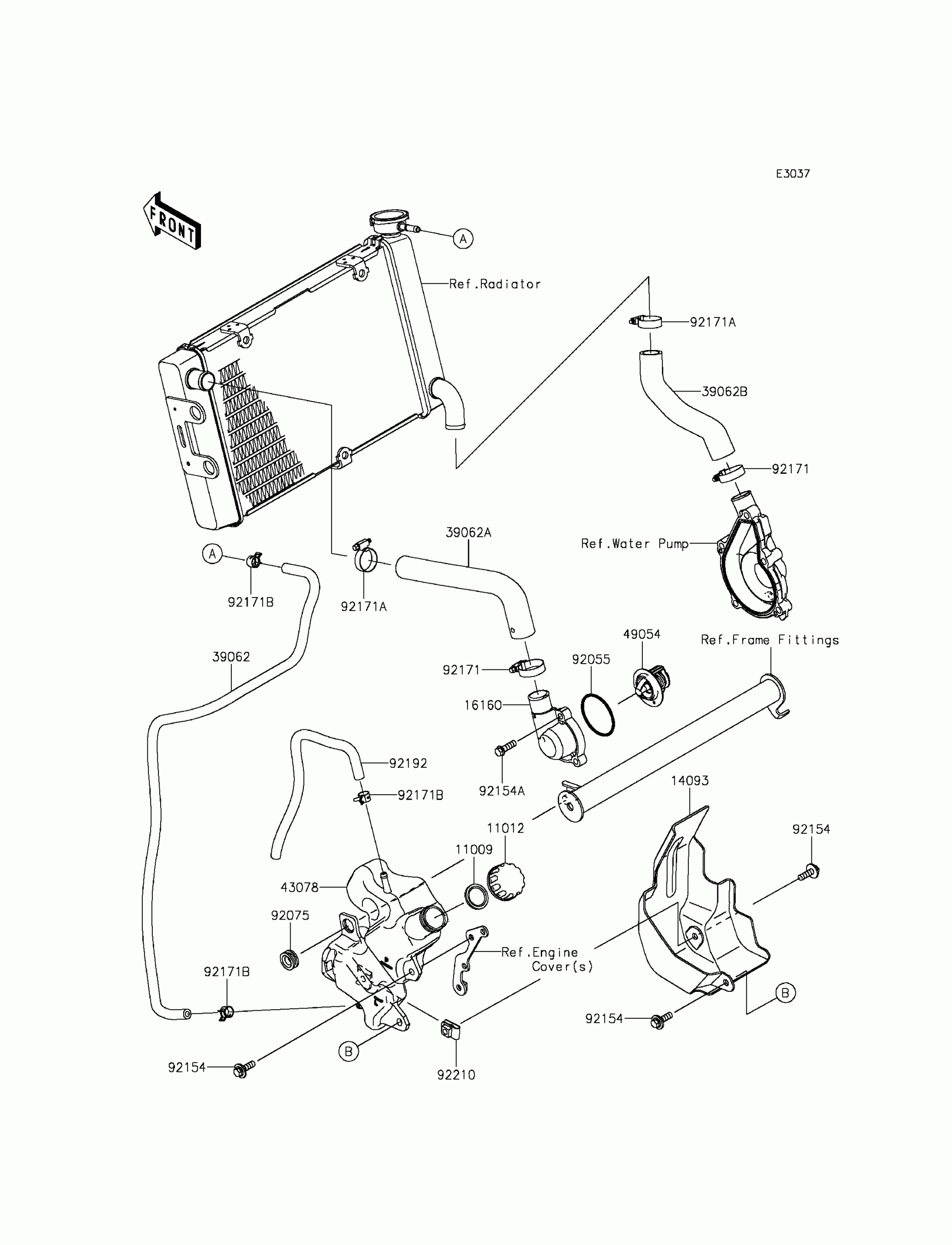

Kawasaki Vulcan® S Water Pipe Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

14093

COVER,RESERVOIR

14093-0098

$15.82

16160

BODY,THERMO

16160-0766

$47.36

39062

HOSE-COOLING,RADI.-RESERVOIR

39062-0670

$11.40

39062A

HOSE-COOLING,HEAD-RADIATOR

39062-0671

$10.30

39062B

HOSE-COOLING,RADIATOR-PUMP

39062-0672

$12.41

43078

RESERVOIR

43078-0579

$49.33

49054

THERMOSTAT

49054-0001

$30.76

92055

RING-O,44.7X2.4

92055-0160

$2.14

92075

DAMPER

92075-1634

$4.69

92154

BOLT,FLANGED-WP,6X20

92154-1577

$1.97

92154A

BOLT,FLANGED,6X20

92154-1778

$2.26

92171

CLAMP

92171-0261

$16.83

92171A

CLAMP

92171-0337

$9.89

92171B

CLAMP,10.5X8X0.7

92171-1992

$6.22

92192

TUBE,BREATHER

92192-1387

$4.92

92210

NUT,CLIP,6MM

92210-0933

$2.26
