Description

Price

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$3.67

224A

SCREW-PAN-WP-CROS,6X14

224AB0614

$4.12

11056

BRACKET,6MM

11056-4156

$4.96

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0117

$49.25

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0118

$49.25

23037B

LAMP-ASSY-SIGNAL,FR,LH

23037-0314

$49.25

23037C

LAMP-ASSY-SIGNAL,FR,RH

23037-0315

$49.25

23048

LENS-SIGNAL LAMP

23048-0018

$10.86

23051

BRACKET-SIGNAL LAMP,LH

23051-0042

$30.12

23051A

BRACKET-SIGNAL LAMP,RH

23051-0043

$30.12

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 10W

92069-0024

Unavailable

92069A

BULB,12V 10W

92069-0076

$4.15

92072

BAND,L=152

92072-3874

$4.18

92154

BOLT,SOCKET,6X22

92154-0402

$1.63

92161

DAMPER,SIGNAL LAMP

92161-1680

$5.98

92172

SCREW,TAPPING,2.9X13

92172-0343

$1.78

92200

WASHER,SIGNAL LAMP

92200-0164

$3.94

92200A

WASHER,SIGNAL LAMP

92200-0165

$3.94

92200B

WASHER,6.5X14X1.2

92200-0964

$1.19

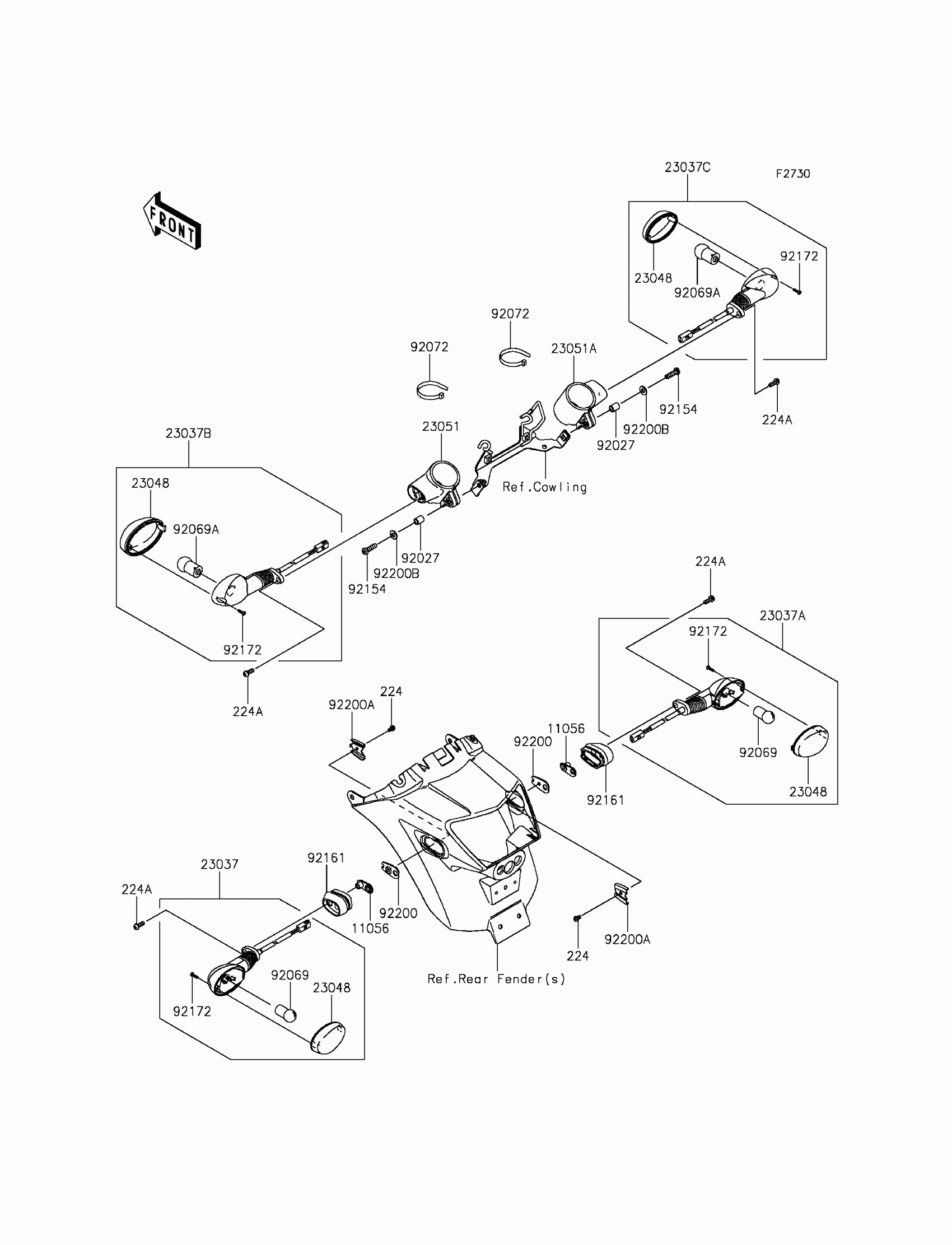

Kawasaki Vulcan® S Turn Signals Diagram

SCREW-PAN-WP-CROS,4X8

SCREW-PAN-WP-CROS,6X14

BRACKET,6MM

LAMP-ASSY-SIGNAL,RR,LH

LAMP-ASSY-SIGNAL,RR,RH

LAMP-ASSY-SIGNAL,FR,LH

LAMP-ASSY-SIGNAL,FR,RH

LENS-SIGNAL LAMP

BRACKET-SIGNAL LAMP,LH

BRACKET-SIGNAL LAMP,RH

COLLAR,6.8X10X12

BULB,12V 10W

BULB,12V 10W

BAND,L=152

BOLT,SOCKET,6X22

DAMPER,SIGNAL LAMP

SCREW,TAPPING,2.9X13

WASHER,SIGNAL LAMP

WASHER,SIGNAL LAMP

WASHER,6.5X14X1.2
