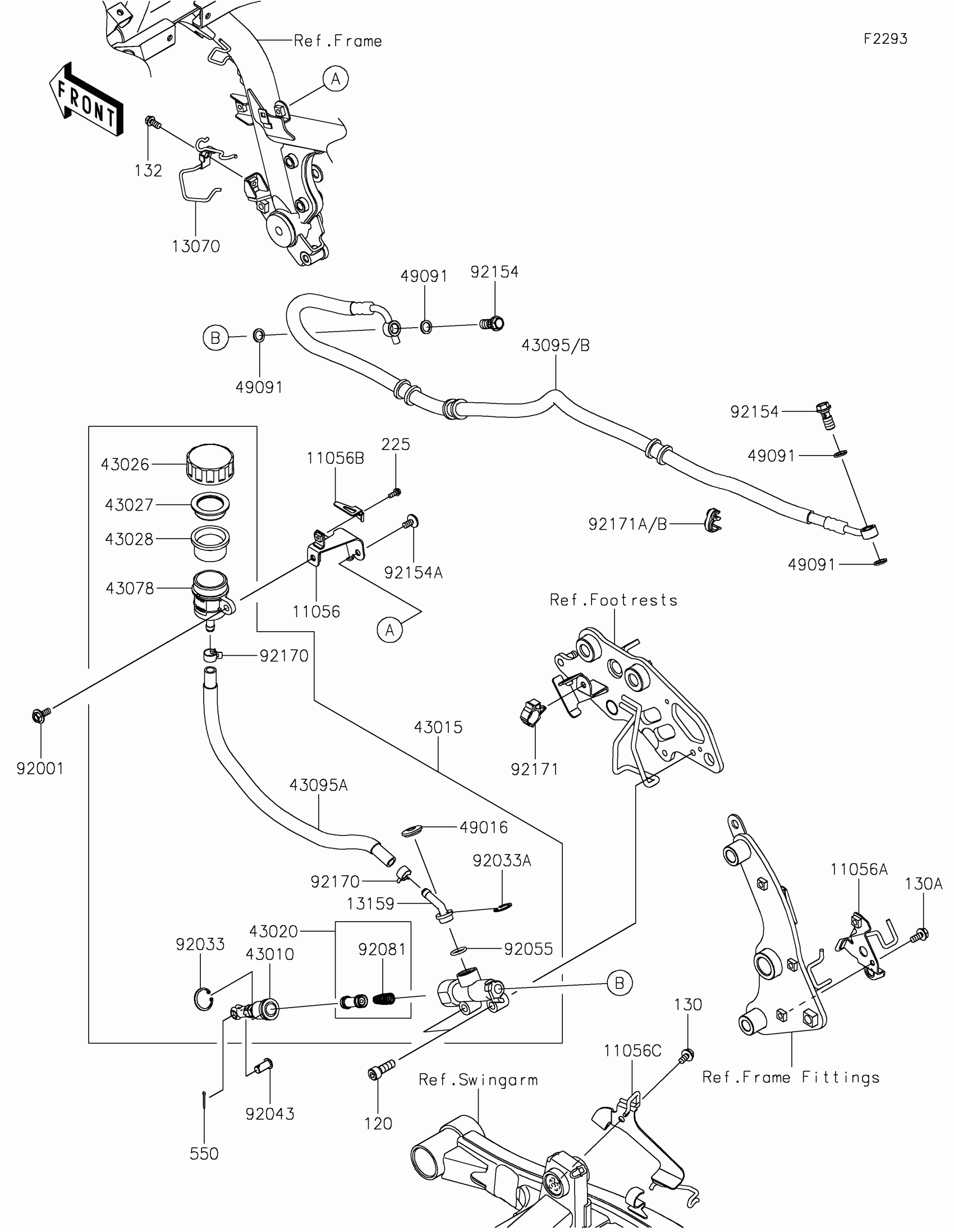

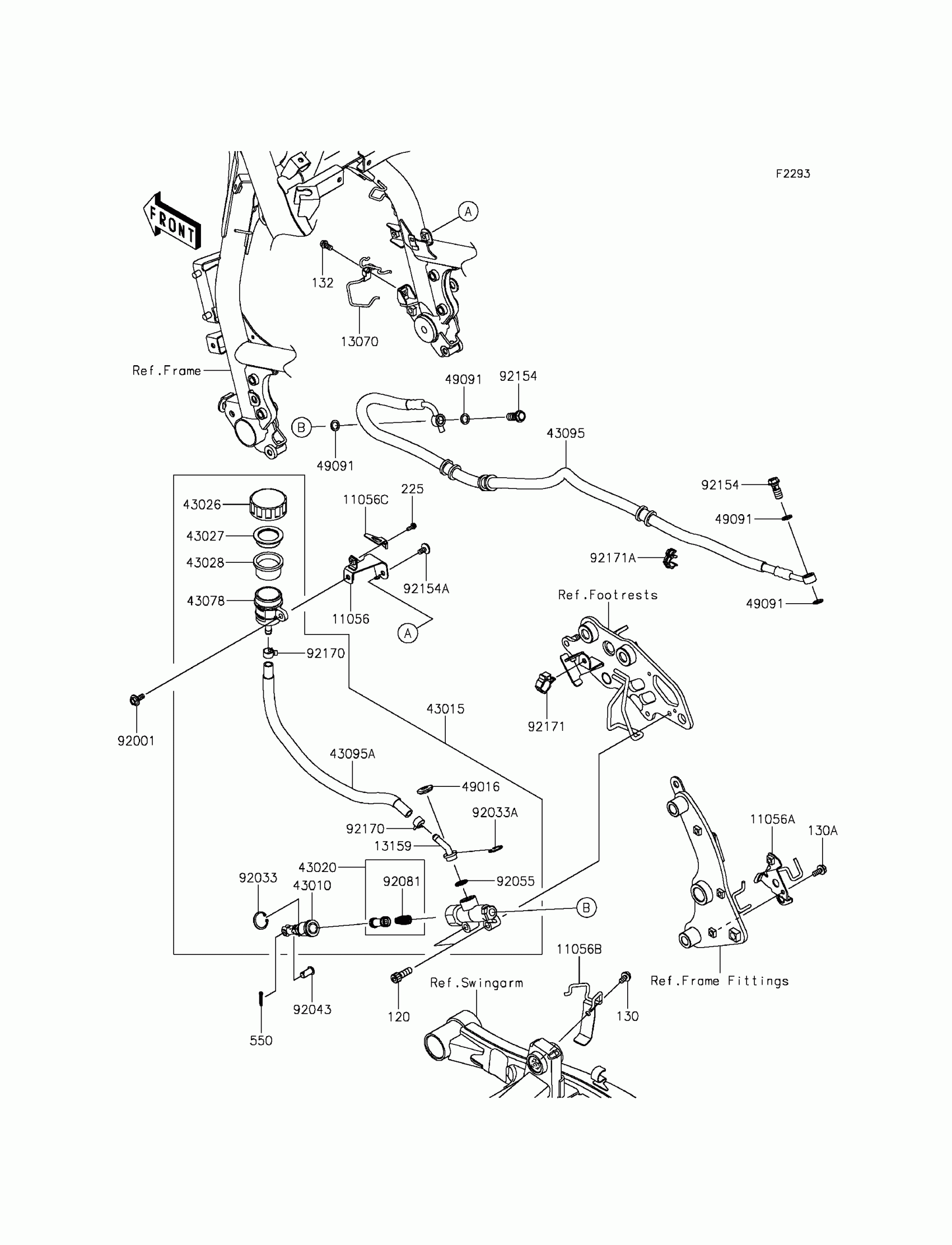

Kawasaki Vulcan® S Rear Master Cylinder Diagram

#

Description
Price

120

BOLT-SOCKET,8X25

120CB0825

$4.69

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

550

PIN-COTTER,2.0X15

550AA2015

$1.12

11056

BRACKET,RESERVOIR

11056-4104

$11.77

11056A

BRACKET,SWINGARM BKT.

11056-4107

$13.08

11056B

BRACKET,SWINGARM

11056-4111

$9.77

11056C

BRACKET,TAMPERPROOF

11056-4117

$1.97

13070

GUIDE,RR M/CYL. HOSE

13070-0779

$15.57

13159

CONNECTOR

13159-0008

$11.02

43010

ROD-ASSY-BRAKE

43010-0016

$29.34

43015

CYLINDER-ASSY-MASTER,RR

43015-0607

$409.45

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0040

$28.98

43095

HOSE-BRAKE,RR,1191MM

43095-0834

$130.50

43095A

HOSE-BRAKE

43095-0859

$36.67

49016

COVER-SEAL

49016-1147

$6.29

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92001

BOLT,W/P,6X16

92001-1860

$4.31

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0182

$3.29

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92154A

BOLT,SOCKET,6X12

92154-0951

$1.63

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP,BRAKE HOSE

92171-1703

$4.65
